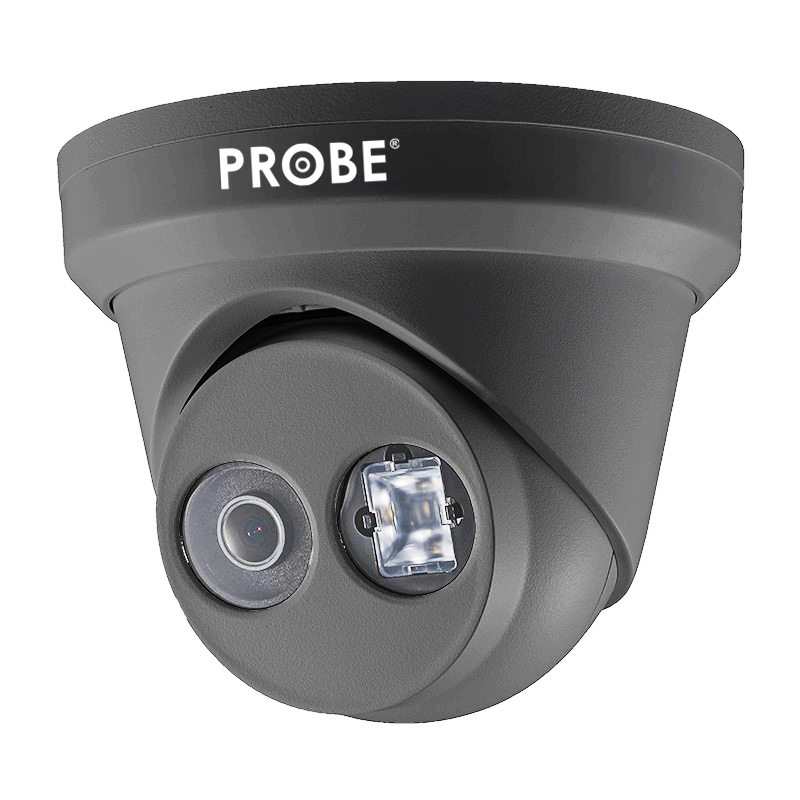

PB-NC324G2-XDG 4 MP AcuSense Fixed Turret Network Camera

4 MP AcuSense Fixed Turret Network Camera

High quality imaging with 4 MP resolution
Clear imaging against strong backlight due to 120 dB WDR technology
Efficient H.265+ compression technology
Water and dust resistant (IP67)
Focus on human and vehicle targets classification based on deep learning

SKU: PB-NC324G2-XDG Category: NETWORK CAMERAS

Description

Product Overview

The NC324G2-XD is a high-performance 4 MP AcuSense Fixed Turret Network Camera designed to deliver superior image clarity and intelligent surveillance. Powered by deep learning algorithms, this camera excels at human and vehicle targets classification, significantly reducing false alarms and ensuring you only get alerted for what matters most.

Key Features

High-Definition Imaging: Capture every detail with 4 MP high-resolution video, providing clear and crisp footage day or night.
AcuSense Technology: Leverage advanced deep learning to focus on human and vehicle classification, filtering out noise from animals, leaves, or rain.
Superior Low-Light Performance: Equipped with 120 dB True WDR technology, the camera ensures clear imaging even against strong backlighting or high-contrast environments.
Efficient Storage: Utilizes H.265+ compression technology, saving up to 75% on bandwidth and storage space without compromising video quality.
Rugged Durability: Rated IP67 water and dust resistant, making it ideal for both indoor and outdoor installations in various weather conditions.
Easy Installation: The turret design allows for flexible 3-axis adjustment, ensuring the perfect viewing angle for your security needs.

Feature Specification

Max. Resolution: 4 Megapixel
Image Sensor: 1/3″ Progressive Scan CMOS
Lens Options: 2.8mm/4 mm fixed lens
WDR: 120 dB
Protection: IP67 Weatherproof
Smart Feature: Human and Vehicle Detection

Additional information

Camera Resolutions	4 MP
Lens Size	2.8mm
Camera Style	Turret
Color	Dark Grey
Lens Type	Fixed Lens
Image Sensor	1/3″Progressive Scan CMOS
Min.Illumination	Color:0.005 Lux@ (F1.6 , AGC ON) , 0 Lux with IR on
Shutter Speed	1/3s to 1/100 , 000s
Wide Dynamic Range	120dB
Day & Night	ICR Cut
Angle Adjustment	Pan:0°to 360° , tilt:0°to 75° , rotate:0°to 360°
Aperture	F1.6
Lens Mount	M12
IR Range	Up to 30 m
Wavelength	850nm
Video Bit Rate	32 Kbps to 8 Mbps
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Power Supply	12VDC±25% , reverse polarity protection PoE:802.3af , Class3
Power Consumption and Current	12VDC , 0.5A , max.6W PoE(802.3af , 36Vto57V) , 0.19Ato0.12A , max.7W
Power Interface	Ø5.5mm coaxial power plug
Material	Aluminum alloy body
Camera Dimension	Ø127.3×95.9mm(Ø5.01″×3.78″)
Package Dimension	150×150×141mm(5.9"×5.9"×5.6")
Camera Weight	Approx.600g(1.3lb.)
