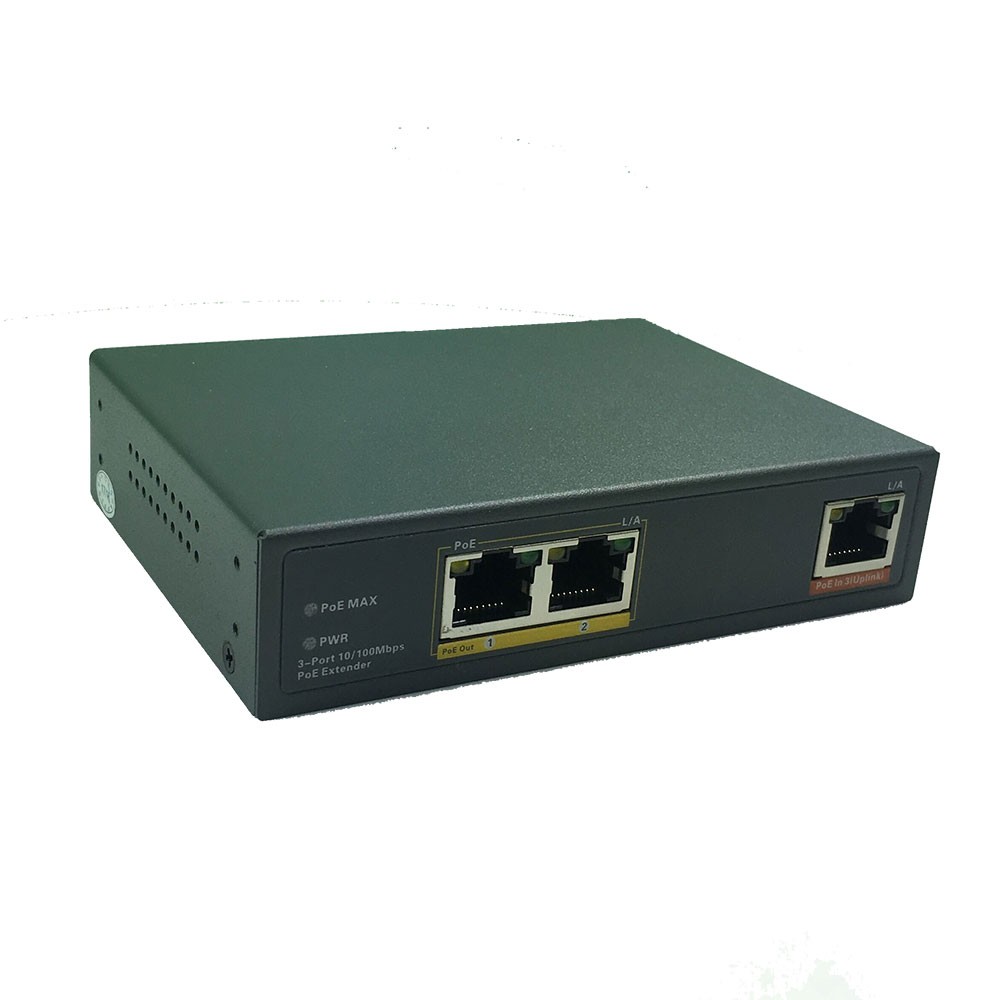

POE-SP102 2-Port 10/100/100M PoE Splitter and Repeater

Product Overview

This 2-port10/1 O0M Desktop PoE repeater Ethernet switch provides an easier installation way for PoE devices, such as IP cameras, wireless AP, Vol P. It supports 2 10/1 O0Mbps PSE (Power Source Equipment) ports and 1 10/1 OO Mbps PD (Power Devices) ports. There is no need to use the power adaptor, as this PoE switch can work through receiving power other PoE switch or equipment by PD port, and the PSE ports can supply the power to the other PDdevices like PoE IP cameras, wireless AP, VoIP. The max transmission distance is 100 meters with Cat5 cables. Plug & play design make the installation quite easy, users do not need any configuration, which make this PoE switch a very good choice for IP cameras, wireless AP, VoIP users.

Key Features

• PoE Network Expansion: Extends PoE connectivity by distributing power and data from one upstream PoE source to multiple devices.
• Dual PSE Output Ports: Provides two PoE output ports capable of powering IP cameras, wireless access points, and VoIP equipment.
• PD Powered Operation: Receives power directly from an upstream PoE switch through the PD port, eliminating the need for external power adapters.
• Integrated Data and Power Delivery: Transmits both Ethernet data and PoE power simultaneously over standard Cat5 cabling.
• Plug-and-Play Deployment: No configuration or software setup required, enabling quick and easy installation.
• Flexible Application Support: Designed for use in IP surveillance systems, wireless networking setups, and VoIP infrastructure.

Key Specifications

• Ethernet Interface: 2 × 10/100 Mbps PSE ports, 1 × 10/100 Mbps PD port
• PoE Function: PD power input with PoE output to connected devices
• Transmission Distance: Up to 100 m via Cat5 Ethernet cable
• Network Compatibility: Supports 10/100 Mbps Ethernet devices
• Deployment Mode: Desktop PoE splitter and repeater for network expansion
