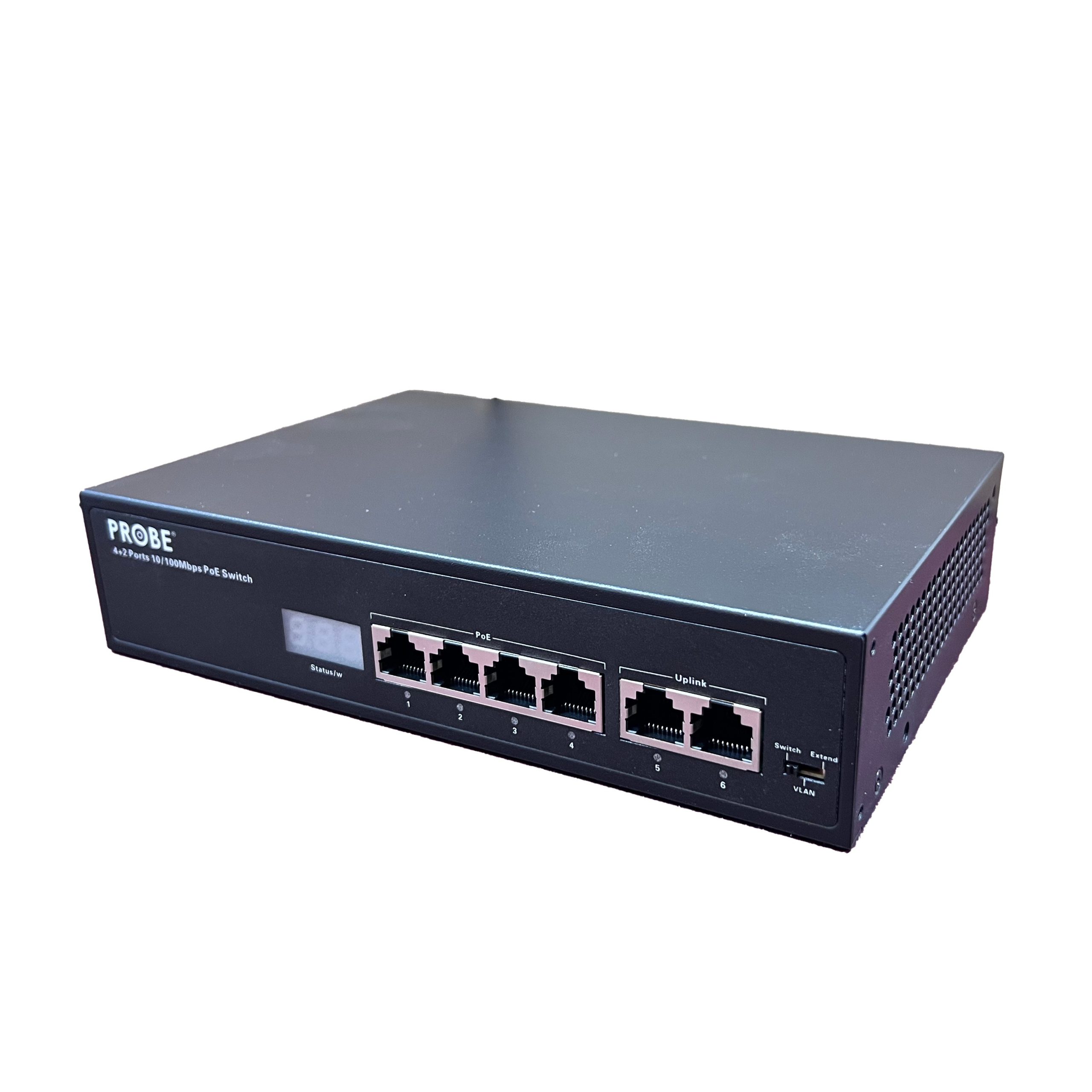

POE-SW4P-2G-65 6-port PoE switch with 4 PoE RJ45 ports and 2 uplink ports

Product Overview

The POE-SW4P-2G-65 is a 6-port PoE switch with 4 PoE ports and 2 uplink ports, supporting 10/100M speeds. It is IEEE802.3af/at compliant and features a digital display for real-time power usage monitoring, useful for efficient power management. Ideal for various environments like security systems, hotels, campuses, and SMEs, this switch offers VLAN Extend mode, a 1.2Gbps backplane bandwidth, and a 0.89Mpps forwarding rate, making it a versatile choice for network management and device connectivity.

Key Features

• Large buffer design, high-definition video does not freeze
• Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
• Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions

Operating Mode

• Provides three exchange modes.
• Standard mode: All ports can communicate freely after opening. Suitable for ordinary data transmission environment
• VLAN mode: After opening, all downstream ports cannot communicate with each other, which can isolate broadcast storms and prevent ARP viruses
• Extend mode: After opening, the rate of all downlink ports becomes 10M, and the transmission distance can reach 250m.

PoE Power Supply Capability

• Support IEEE 802.3af/at PoE power supply standard
• The maximum output power of a single port can reach 30W
• SmartLink power management, StepLink step-by-step start function to escort the safe and stable operation of

Kedi PoE switches

• Automatic detection and identification of standard PoE power receiving equipment, intelligent power supply, will not burn non-standard PoE power receiving equipment or ordinary equipment
• The PoE port supports a priority mechanism, when the remaining power is insufficient, the power supply of the high-priority port is guaranteed first

Product Reliability

• The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
• High redundancy design, providing long-term stable PoE power output.
• 0~45℃ working temperature improves product stability in a wide temperature environment

Easy To Use

• Plug and play, no need to configure, simple and convenient
• Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act), and digital tube power display

Key Specifications

• Network Ports: 4 x 10/100M PoE RJ45 + 2 x 100M RJ45 uplink
• PoE Standard: IEEE 802.3af/at
• Backplane Bandwidth: 1.2Gbps
• Packet Forwarding Rate: 0.89Mpps
• Supported Modes: VLAN, Extend, One-key Switch
