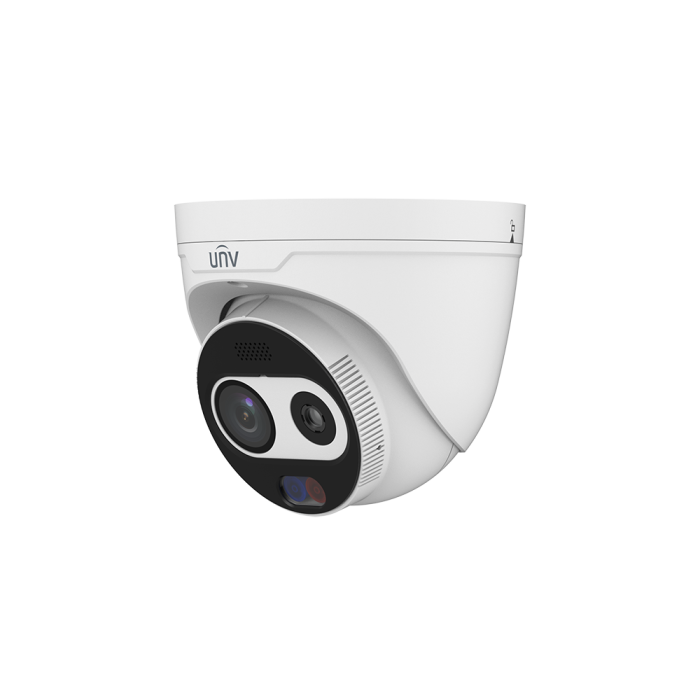

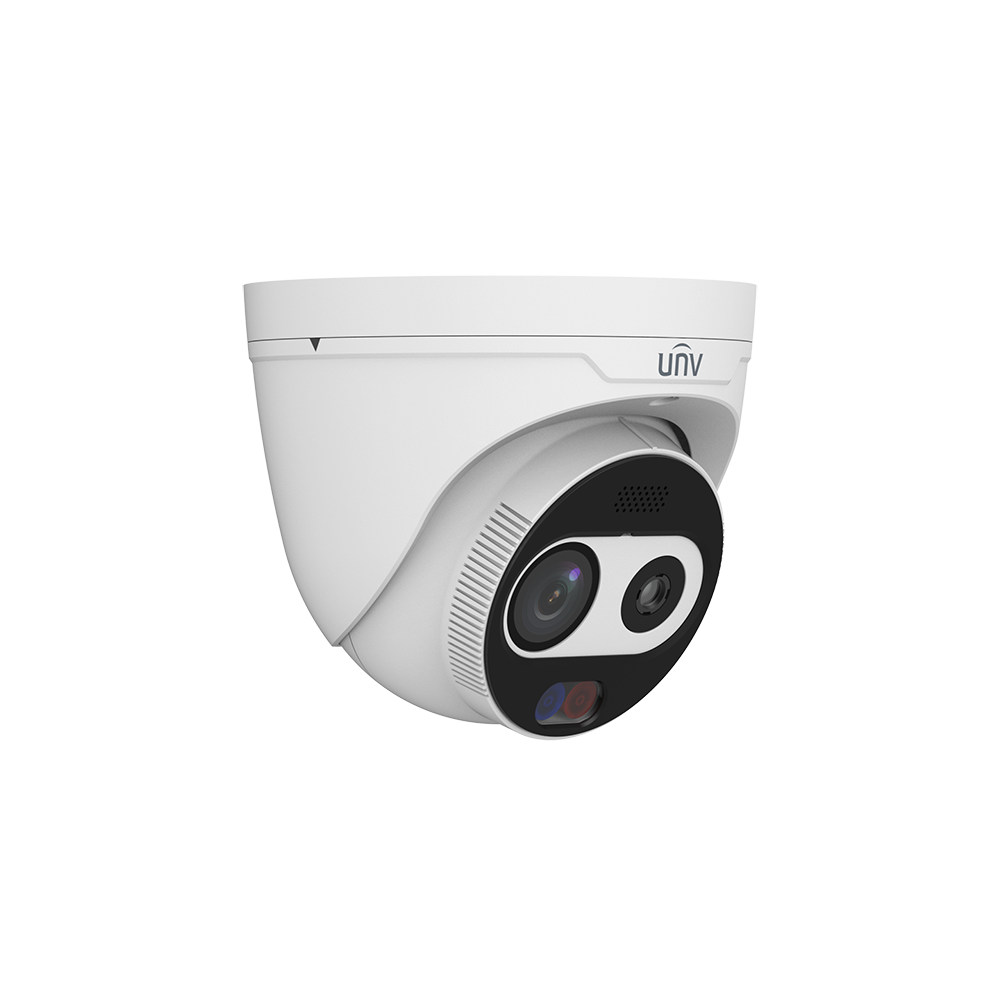

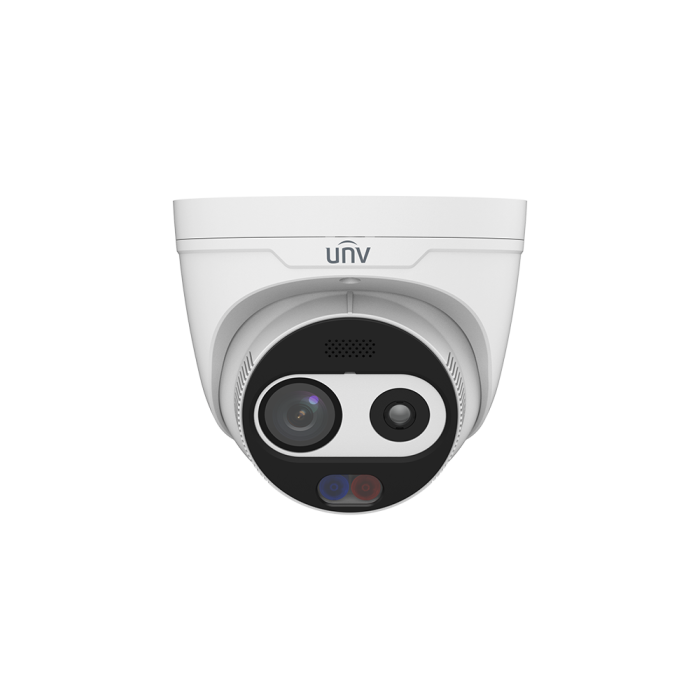

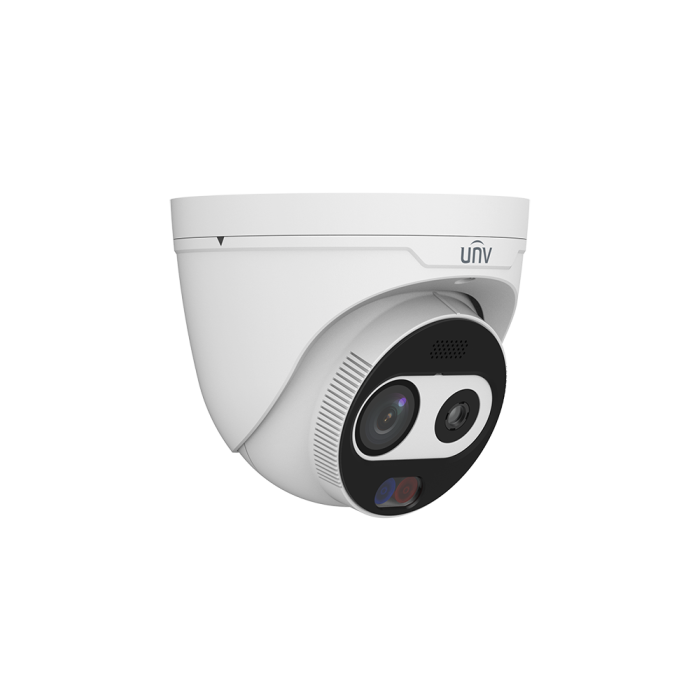

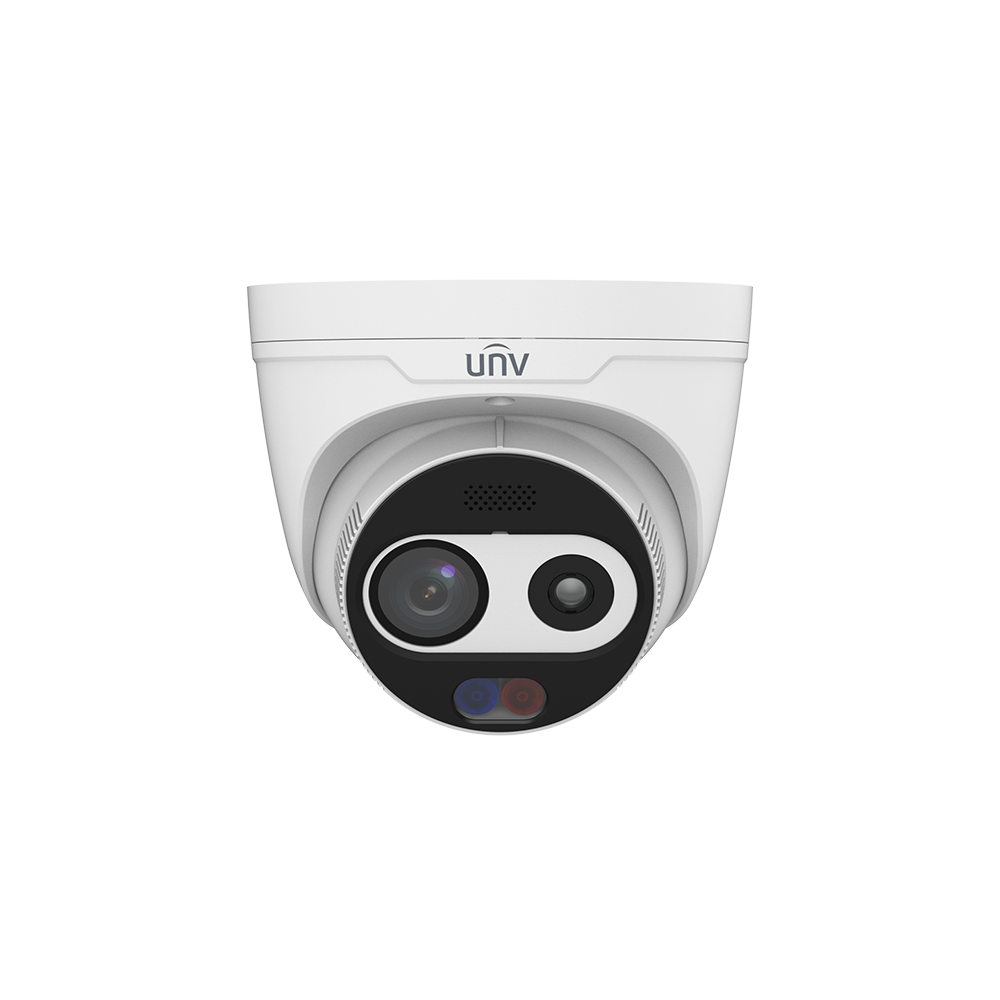

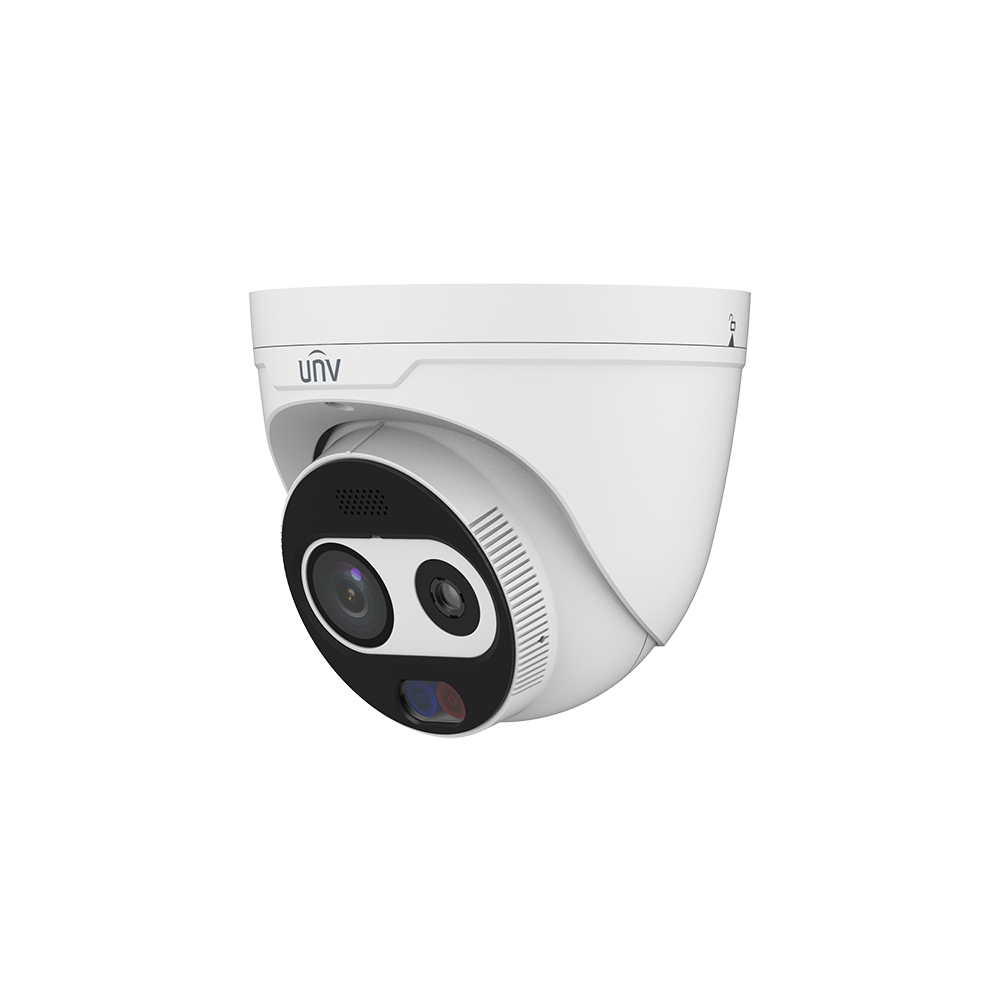

TIC3612SA-F7-4F6AC-I1 Thermal & Optical Dual-spectrum Turret Network Camera

Thermal & Optical Dual-spectrum Turret Network Camera

SKU: TIC3612SA-F7-4F6AC-I1 Category: Thermal Camera

Description

Thermal & optical dual-spectrum image, dual video with single IP address, adaptable to various scenes
1/2.8″ target surface, high sensitivity sensor, suitable for starlight monitoring
Thermal module supports reliable fire detection, and fire shield area
Thermal module supports temperature detection and cold&hot spot tracking, which highlights abnormal temperatures and links to alarm
Thermal & optical dual-spectrum smart intrusion prevention can be enabled simultaneously : cross line, enter area, leave area, intrusion
Optical module supports smog recognition, which can help with fire alarm reconfirmation
Supports picture-in-picture mode, real-time contrast live, more convenient and clear
built in mic & speaker, support two-way audio
Supports audio and light alarm, with red and blue warning lights built in
Ultra 265, H.265, H.264, MJPEG
Max 2688 × 1520@30 fps in the optical module and max 960P@30 fps in the thermal module
DC 12 V ± 25% or PoE power supply
Alarm 2 in and 2 out, audio 1 in and 1 out, micro SD, up to 512 G

Additional information

Sensor	Optical:1/2.8" CMOS Thermal:Vanadium oxide uncooled focal plane arrays
Camera Style	Turret
Min. Illumination	Optical:Colour: 0.003 lux (F1.6 , AGC ON) B/W: 0.002lux(F1.6 , AGC ON) 0 lux with IR Thermal:N/A
Day/Night	Optical:IR-cut filter with auto switch (ICR) Thermal:N/A
Shutter	Auto/Manual , 1 to 1/100000 s
WDR	120 dB
Focal Length	Optical:6.0 mm Thermal:7.0 mm
Iris	Optical:F1.6 Thermal:F1.0
U-code	Support
ROI	Support
Video Stream	Triple streams
S/N	>56 dB
OSD	Up to 8 OSDs
Digital Noise Reduction	2D/3D DNR
Audio Compression	G.711U , G.711A
Audio Bitrate	128 Kbps
Sampling Rate	16KHZ
Edge Storage	Micro SD, up to 512 GB
Network Storage	ANR
Audio	Built-in Two-Way Audio
Interface Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Power	DC12V(±25%) , PoE(IEEE802.3af)
Power Consumption	Max 12W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Φ129 x 114 mm(Φ5.08" x 4.49")(Φ x H)
Weight	0.72kg(1.6lb)
Maximum Bitstream	35
Surge Protection	6 KV
