Description

Powerful connection: 250 devices, 500 channels
Unified management: IPC, NVR, smart device, smart recognition access control device, entrance & exit device, cloud device, decoder, network keyboard, access control, alarm control, etc.
High bandwidths: 512Mbps incoming bandwidth, 384Mbps forwarding bandwidth
Strong compatibility: Standard ONVIF, VSS, VIID, and RTSP
Rich functionality: Basic functions including live view, playback, sequence, view, video wall, e-map, two-way audio, broadcast, alarm linkage; smart functions including perimeter protection, person detection, person recognition, LPR, entrance & exit management, access control, basic attendance management, mixed-traffic detection, people counting, and data search
Flexible access: Local client (C/S and B/S), PC client (C/S and B/S), and mobile client (iOS and Android)
Stability and reliability: Embedded Linux OS, 802.1x authentication, ARP protection, HTTPS, SSH enabling/disabling, network fault tolerance, load balancing, multi-IP configuration, secure password, and IP address filtering
Operation and maintenance: Provide a comprehensive management dashboard, server status, device/channel online status, HDD status, online users, bandwidth usage, packet loss rate, log search, etc.
Abundant Interfaces: 4 Gigabit Ethernet interfaces, 24 alarm inputs, 8 alarm outputs, 4 USB3.0 interfaces, 1 HDMI interface, and 1 VGA interface

Additional information

PoE	N/A
Incoming bandwidth	512Mbps
Outgoing bandwidth	384Mbps
Number of smart image storage streams	256 channels
Image push performance	100 images per second
Alarm receiving and forwarding performance	100 alarms per second
RAM	4GB
HDD Support	1 HDD
USB	4*USB3.0
Power	100V to 240V AC input , 50Hz/60Hz
Total power consumption	Max. 40W
Dimensions (with front panel) (H x D x W)	48mm×345.5mm×440mm/1U
Weight	≤4kg (without HDD)

Download

Datasheet

No associated firmware documentation found.

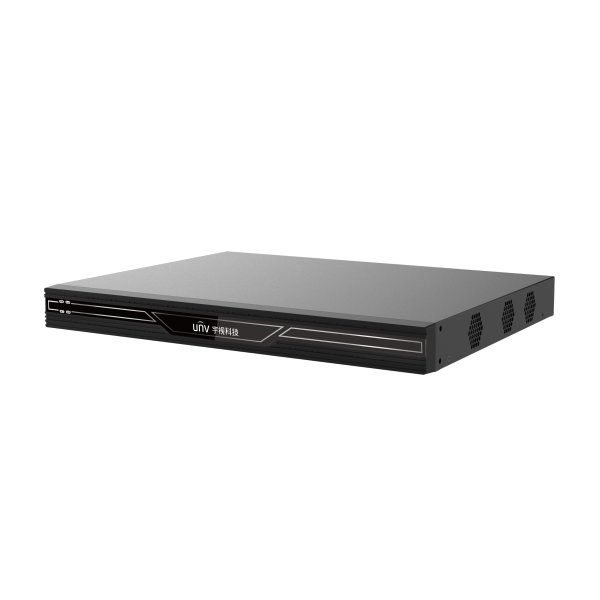

VMS-B180-A VMS-B180-A Integrated Machine
