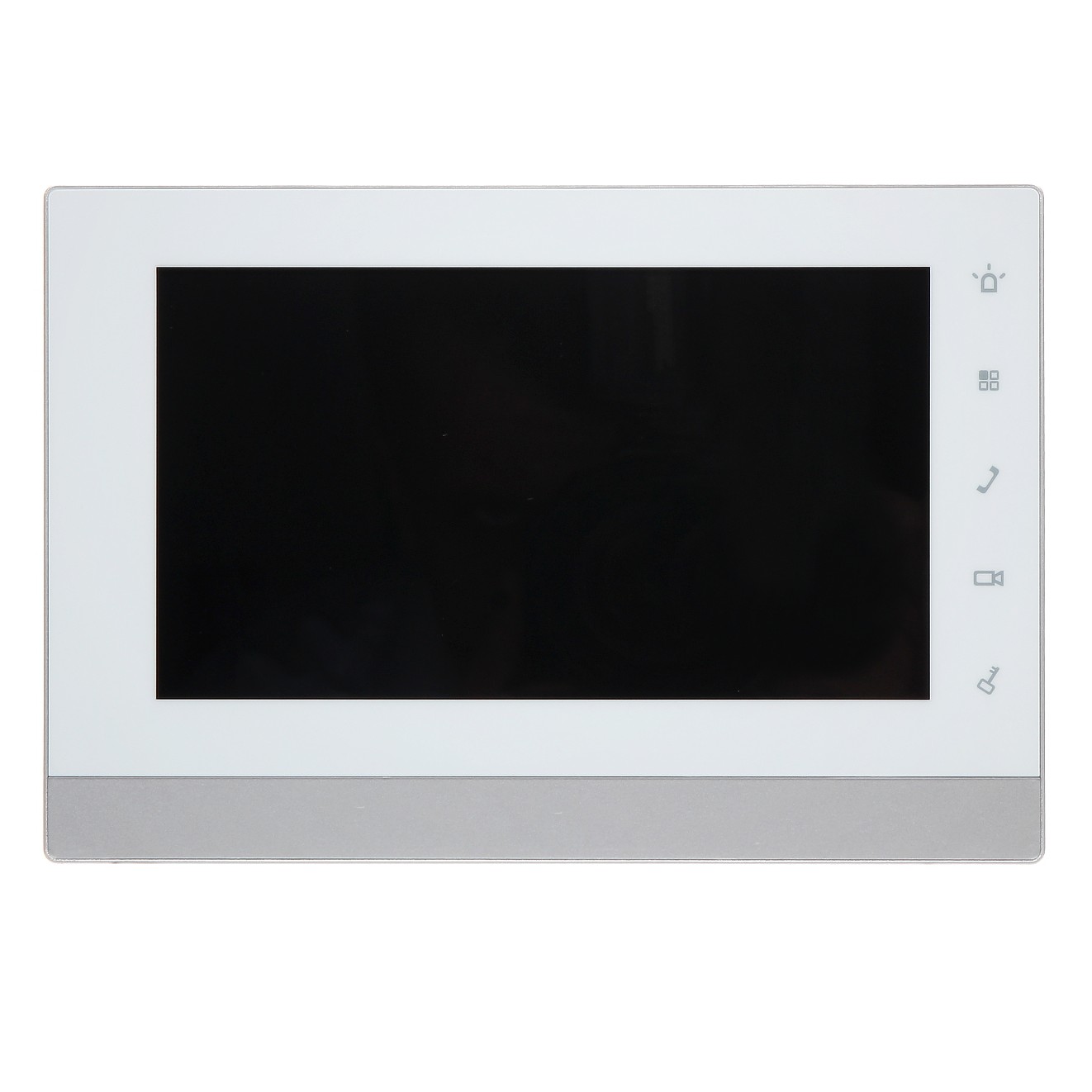

VTH1550CH Color Indoor Monitor Inch TFT LCD Capacitive Touchscreen
Click to enlarge

VTH1550CH Color Indoor Monitor Inch TFT LCD Capacitive Touchscreen

WINIC

Color Indoor Monitor Inch TFT LCD Capacitive Touchscreen

  • 7-inch TFT Capacitive Touchscreen
  • 800 x 480 Resolution
  • Alarm Integration
  • Micro SD Card Slot, maximum 32 GB
  • Record and Snapshot Functions (requires SD card)
  • Surface-mounted
Add to wishlist
Compare
SKU: VTH1550CH Categories: ,

Product Overview

The VTH1550CH indoor monitor combines advanced display technology and smart connectivity for residential and commercial intercom systems. Featuring a 7-inch TFT capacitive touchscreen with 800 × 480 resolution, it delivers vivid and responsive visuals. Users can communicate via two-way audio, monitor alarms, and capture snapshots or video recordings with an optional Micro SD card. The monitor operates on an embedded Linux system and integrates seamlessly into TCP/IP networks, supporting both surface-mounted installation and remote management. With multiple input/output interfaces including RS485 and alarm channels, it ensures flexible deployment and enhanced control for building security systems.

Key Features

  • 7-Inch Capacitive Touchscreen: Intuitive interface with high-resolution 800 × 480 display
  • Two-Way Audio: Embedded speaker and omnidirectional microphone for clear communication
  • Recording & Snapshot: Micro SD card slot (up to 32 GB) for storing video and snapshots
  • Alarm Integration: Six input channels and one output channel for enhanced security
  • Alarm Integration: Six input channels and one output channel for enhanced security
  • Network Ready: H.264 video compression and TCP/IP support for smooth network operation
  • Embedded Processor: Linux-based system for stable and responsive performance
  • Flexible Installation: Surface-mounted design with compact footprint



Key Specifications

  • Display: 7-inch TFT LCD, capacitive touchscreen, 800 × 480 resolution
  • Audio: Two-way communication, G.711 compression
  • Memory: Micro SD card slot, max. 32 GB
  • Network: Ethernet 10/100 Mbps, TCP/IP protocol, H.264 video compression
  • Power: 12 VDC, ≤ 7 W operation, ≤ 1.5 W standby
AlarmInput: Six (6) Channels Output: One (1) Channel
AudioInput: Omnidirec
Audio CompressionG.711
Dimensions200.45 mm x 136.50 mm x 22.0 mm (7.89 in. x 5.37 in. x 0.87 in.)
Display InputTouchscreen Technology,and Mechanical Keys
Display Resolution800 x 400
Electromagnetic Compatibility (EMC)FCC CFR 47 Part 15 subpart B ANSI C63.4 – 2009 EN 55022:2010,EN 55024:2010,EN 50130-4:2011,EN 61000-6-3:2007,EN 61000-3-2:2006+A1:2009 EN 61000-3-3:2008,IEC 61000-4-2:2008,IEC 61000-4-3:2010,IEC 61000-4-4:2012,IEC 61000-4-5:2005,IEC 61000-4
Ethernet10/100 Mbps,Self-adaptive
InstallationSurface-mount
Main ProcessorEmbedded Micro Processor
MemoryMicro SD,32 GB maximum
Net Weight0.80 kg (1.76 lb)
Network ProtocolsTCP/IP
Operating Humidity10% to 90%,Relative
Operating SystemEmbedded Linux
Operating Temperature-10° C to +55° C (14° F to +131° F)
Power12 VDC Can receive power from DHI-VTNS10160A,or Use a separate 12 VDC power supply
Power ConsumptionStandby: ≤ 1.5 W Operation: ≤ 7.0 W
RS485One (1) Port
SafetyPower Supply: UL Certified
Video CompressionH.264
Viewing Area7-in. TFT LCD,Capacitive

Datasheet

No associated firmware documentation found.
