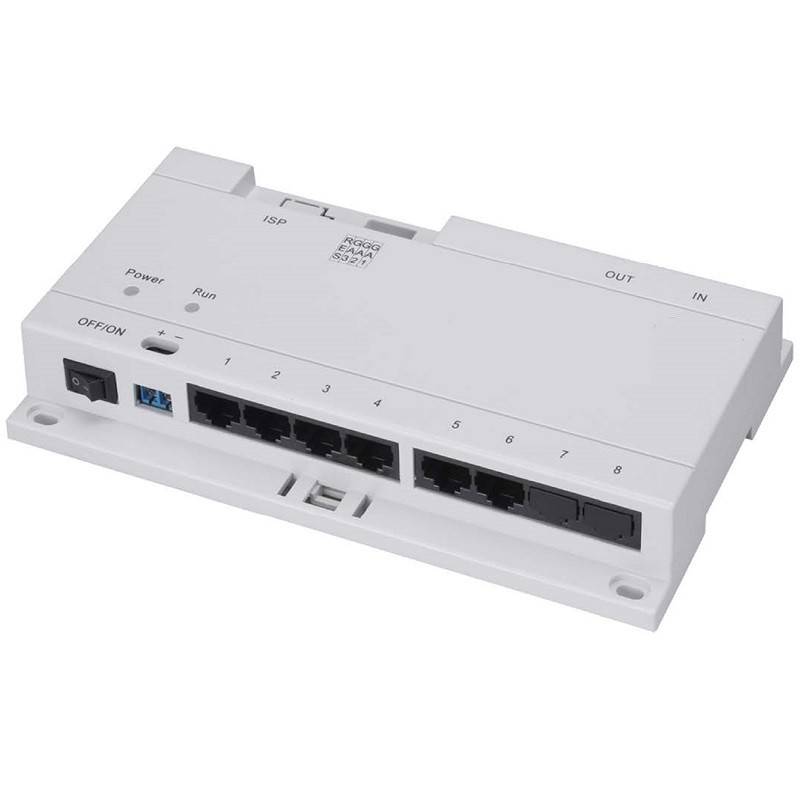

VTNS1060A Network Power Supply for IP Systems
Network Power Supply for IP Systems
- Compact Unit with Aesthetic Design
- BLUE|LINE Protocol Network Power Supply Switch
- Connect up to Six (6) Indoor Monitors with CAT 5E Cable
- Transmits Signal and Power Simultaneously
Description
Product Overview
The VTNS1060A is a compact and reliable network power supply designed for IP-based indoor monitor systems. It enables simultaneous transmission of power and data over a single CAT 5E cable, supporting up to six monitors per unit. Designed with BLUE|LINE protocol compatibility, it ensures smooth communication and stable operation for residential or commercial intercom networks. With robust electromagnetic compatibility (EMC) certifications and a durable construction, the VTNS1060A maintains consistent performance across a wide temperature range while minimizing electromagnetic interference. Its compact footprint allows flexible installation in various indoor environments.
Key Features
- Simultaneous Data & Power Transmission: Single CAT 5E cable handles both signal and power
- Supports Multiple Monitors: Connect up to six indoor monitors per unit
- BLUE|LINE Protocol: Ensures reliable communication with compatible intercom systems
- Compact Design: Sleek and aesthetic housing suitable for modern interiors
- Robust EMC Compliance: Meets international standards for electromagnetic compatibility
- Wide Operating Temperature: -10° C to +55° C for reliable indoor performance
- Low Power Consumption: 0.2 W standby, 45 W max under full load
Key Specifications
- Input Voltage: 24 VDC (requires separate 24 VAC, 3 A power supply)
- Power Output: Up to 45 W under full load
- Connectivity: Supports six indoor monitors via CAT 5E
- Dimensions: 178.8 × 107.1 × 30.3 mm (7.04 × 4.22 × 1.19 in)
- Net Weight: 0.3 kg (0.66 lb)
Additional information
| Dimensions |
178.80 mm x 107.10 mm x 30.30 mm (7.04 in. x 4.22 in. x 1.19 in.) |
|---|---|
| Electromagnetic Compatibility (EMC) |
FCC CFR 47 Part 15 subpart B ANSI C63.4 – 2009 EN 55022:2010/AC:2011 ,EN 55024:2010 ,EN 50130-4:2011 ,EN 61000-6-3:2007/A1:2011 ,EN 61000-3-2:2006 +A2:2009 ,EN 61000-3-3:2008 ,IEC 61000-4-2:2008 ,IEC 61000-4-3:2006+A1:2007+A2:2010 ,IEC 61000-4-4:2012 ,IEC 61000-4-5:2005 ,IEC 61000-4-6:2008 ,IEC 61000-4-8:2009 ,IEC 61000-4-11:2004 |
| Net Weight |
0.30 kg (0.66 lb) |
| Operating Temperature |
-10° C to +55° C (14° F to +131° F) |
| Power Consumption |
Standby: 0.2 W ,under free load Maximum: 45 W ,under full load |
| Voltage |
24 V Requires a separate 24 VAC ,3 A power supply. |
