VTO2000C Module Outdoor Station Pixel IP54 Vandal-

Product Overview

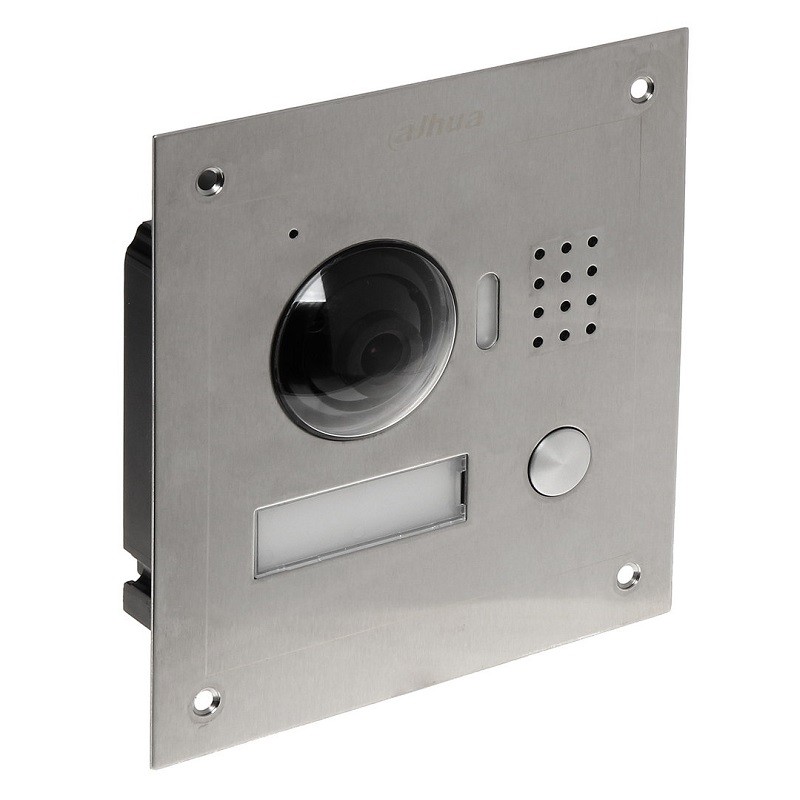

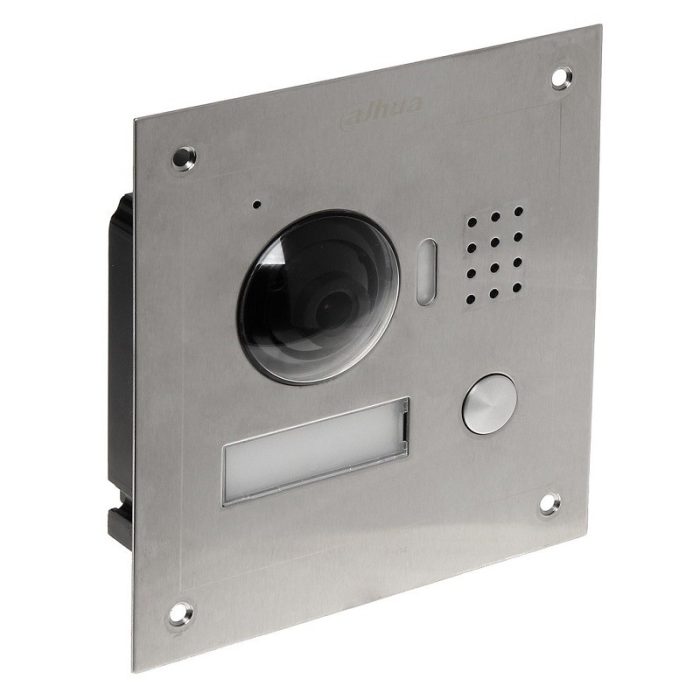

The VTO2000C Module Outdoor Station is a robust, modular outdoor intercom camera designed for residential and commercial access control applications. Equipped with a 1.3 MP HD CMOS sensor and 2.8 mm lens, it delivers clear, full-color video even in low-light conditions. The unit is constructed from stainless steel with IP54 and IK07 protection ratings, making it resistant to water, dust, and vandalism. Featuring built-in audio and video messaging, mechanical keypad support, and dual-way bidirectional talk, it ensures secure and convenient communication. Its modular design allows integration with up to nine modules when paired with the VTO2000A-C system, providing flexible expansion for complex installations.

Key Features

• HD CMOS Imaging: 1.3 MP sensor with 120° diagonal and 90° horizontal viewing angles
• Durable Construction: Stainless steel panel, IP54 waterproof, IK07 vandal-proof
• Audio & Video Messaging: Built-in microphone and speaker, supports dual-way communication
• Modular Design: Expandable up to 9 modules with VTO2000A-C
• Flexible Installation: Supports both surface and flush mounting
• Integrated Door Control: 2 relay outputs for main lock and access control module
• Night Vision & Voice Indication: Reliable operation in low-light environments with audible prompts

Key Specifications

• Video Compression: H.264
• Audio Compression: G.711
• Ethernet: 10M/100M self-adaptive
• Power Supply: DC 12V, Power Consumption: Standby ≤1W, Working ≤10W
