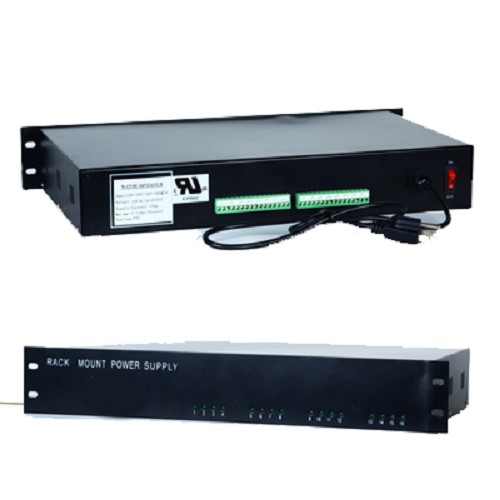

W-12VDC-16P13A-RM 12VDC, 16 OutPut Regulated 13AMP PTC

Product Overview

The W-12VDC-16P13A-Rock mount is a reliable 16-channel 12V DC power supply designed for multi-device setups requiring regulated output. Each channel provides up to 1.1A with individual PTC protection, ensuring overcurrent or short-circuit events affect only the corresponding channel while others remain operational. Integrated LED indicators allow instant visual monitoring of each channel’s status. With integral surge and overvoltage protection, the device delivers safe, stable power in demanding environments. The unit supports natural heat dissipation and operates efficiently with up to 80% efficiency at full load. Its 1.5U rack-mount form factor and dielectric strength ratings guarantee compatibility with professional installations, while fault recovery is automatic after resolving issues, reducing downtime and maintenance complexity.

Key Features

• Individual Channel Protection: PTC fuse per channel prevents overcurrent or short-circuit damage
• Visual Monitoring: LED indicators show the real-time status of each output
• Surge & Overvoltage Safety: Protects connected loads from electrical spikes
• Automatic Fault Recovery: Channels resume normal operation once the fault is cleared
• High Efficiency Design: ≥80% efficiency at rated load for stable performance
• Reliable Dielectric Strength: Input-output insulation up to 1500VAC for safe operation
• Versatile Rock-Mount: 1.5U form factor for professional network and security setups

Key Specifications

• Input 110/120 VAC
• Output 12V DC，16channels
• 13 Amp Supply Current
• Integral Surge Protection
• Individual LED Power Indication
• Individual PTC Output Protection
• Max. Amp: 1.1Amp/ch
• 1.5U rack mount
