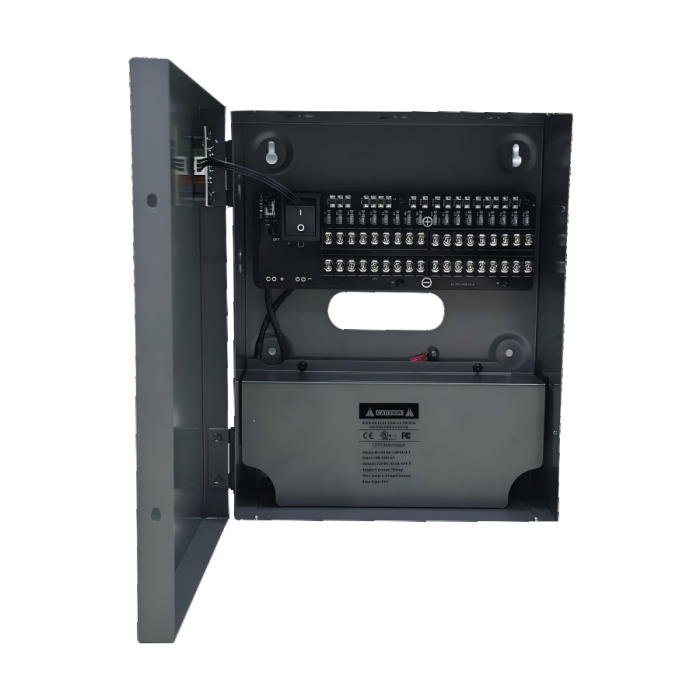

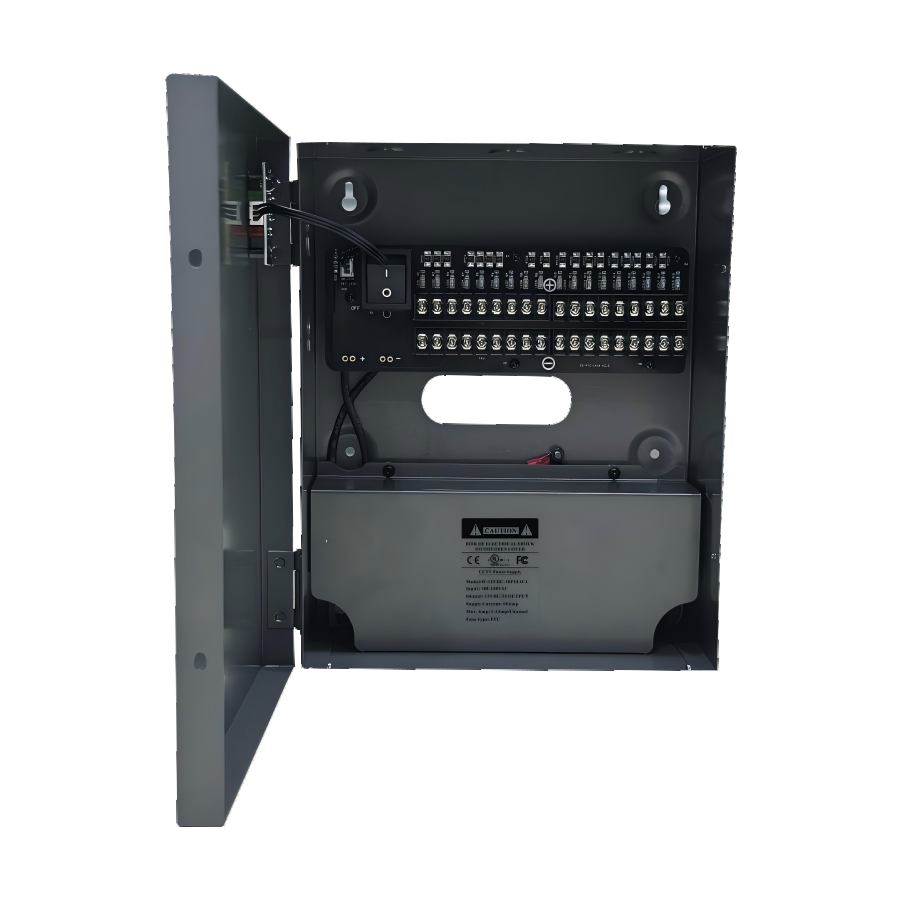

W-12VDC-18P10A UL 12V DC 10Amps 18-Channel UL-Listed Power Supply

Product Overview

The W-12VDC-18P10A UL is a reliable 18-channel 12V DC power supply designed for multi-device security and surveillance systems. Each channel delivers 0.55A, providing stable and regulated power with ±5% voltage tolerance across full load. The unit integrates short-circuit protection with automatic restart, along with overload and surge protection to ensure safe operation of connected devices. It operates efficiently above 80% efficiency, accepting a wide input voltage range of 100–240VAC at 50/60Hz. Built for professional environments, the supply maintains reliable performance within 0°C to 40°C operating temperature and can be stored between -25°C to 75°C. Equipped with individual PTC fuses and UL certification, this power supply offers secure, fault-tolerant, and continuous power for demanding multi-camera or network setups.

Key Features

• Multi-Channel Stability: 18 independent channels for simultaneous device power delivery
• Automatic Recovery: Short-circuit shutdown triggers self-reset to minimize downtime
• Comprehensive Protection: Overload, surge, and short-circuit protection safeguard connected devices
• High Efficiency: >80% efficiency reduces energy waste and maintains stable output
• Voltage Regulation: 12V DC ±5% ensures consistent performance even under full load
• UL-Listed Compliance: Certified for professional security and network installations
• Plug-and-Operate Design: Minimal configuration required, quick deployment

Key Specifications

• Output: 12V DC ±5%, 18 channels, total 10A (0.55A per channel)
• Input Voltage: 100–240VAC, 50/60Hz, rated 110VAC, input current 2.5A
• Protection: Overload, short-circuit, and surge protection with 1.1A PTC fuse
• Physical Size: 255 × 208 × 90 mm, UL-listed for reliability and safety
