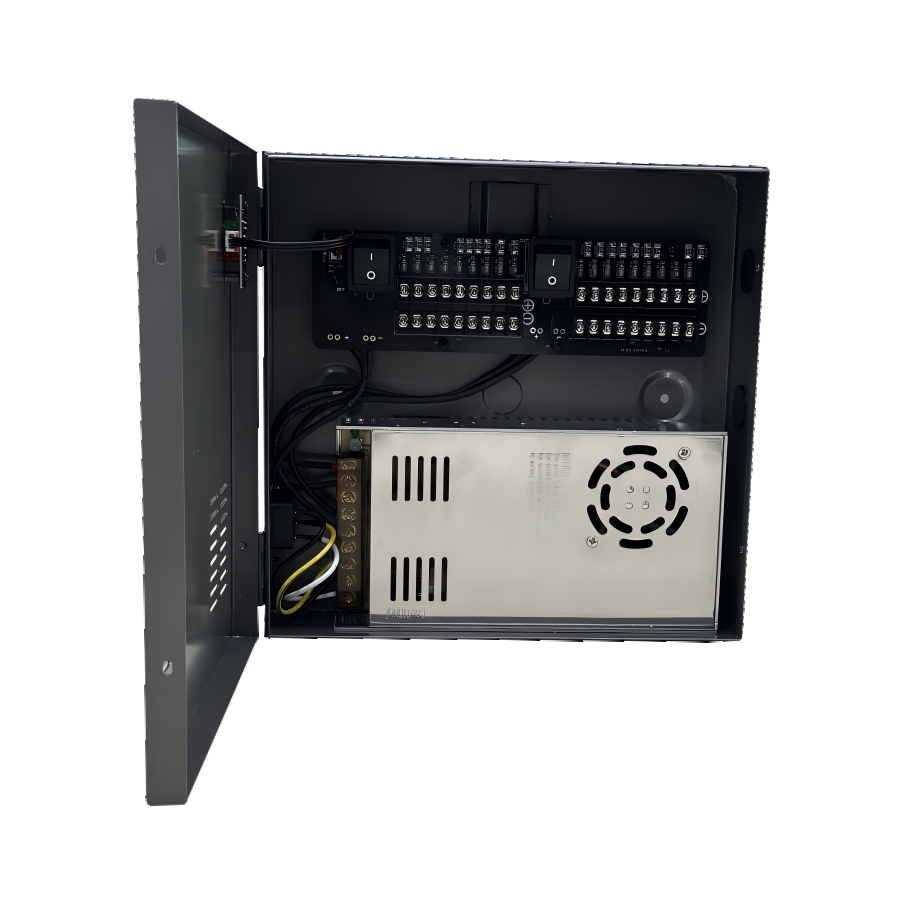

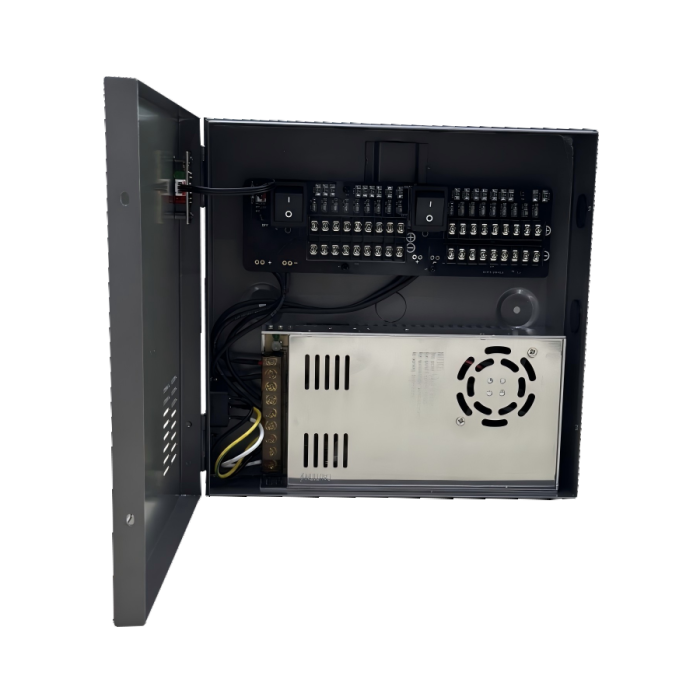

W-12VDC-18P20A UL 12V DC 20Amps 18-Channel UL-Listed Power Supply

Product Overview

The W-12VDC-18P20A UL is a high-performance 18-channel 12V DC power supply engineered for professional surveillance and network applications. Each channel delivers 1.11A with precise voltage regulation of ±5% even under full load, supporting reliable operation of multiple devices simultaneously. Equipped with short-circuit, overload, and surge protection, the unit automatically shuts down and restarts faulty channels without affecting the others. Operating efficiently at over 80% efficiency, it accepts 110–120VAC input and works across a temperature range of 0°C to 40°C with up to 95% relative humidity. UL certification ensures compliance with safety standards, while compact dimensions make it suitable for rack-mounted or centralized installations. This combination of high efficiency, multi-channel management, and protective features makes it ideal for demanding CCTV or network deployments.

Key Features

• Multi-Channel Power: 18 independent channels delivering 1.11A each
• Automatic Fault Recovery: Channels recover automatically after short-circuit shutdown
• Protection Suite: Overload, surge, and short-circuit safeguards for reliable operation
• High Efficiency: Operates above 80% efficiency for energy-saving performance
• Stable Voltage Output: 12V DC ±5% ensures consistent device operation under full load
• UL-Listed Compliance: Certified for professional installations and enhanced safety
• Plug-and-Operate Design: Minimal setup required, ideal for CCTV or multi-device networks

Key Specifications

• Output: 12V DC ±5%, 18 channels, total 20A (1.11A per channel)
• Input Voltage: 110–120VAC, 50/60Hz, input current 4A
• Protection: Short-circuit, overload, and surge with 1.5A PTC fuse
• Physical Size: 254 × 262 × 79 mm, UL-listed for safety and reliability
