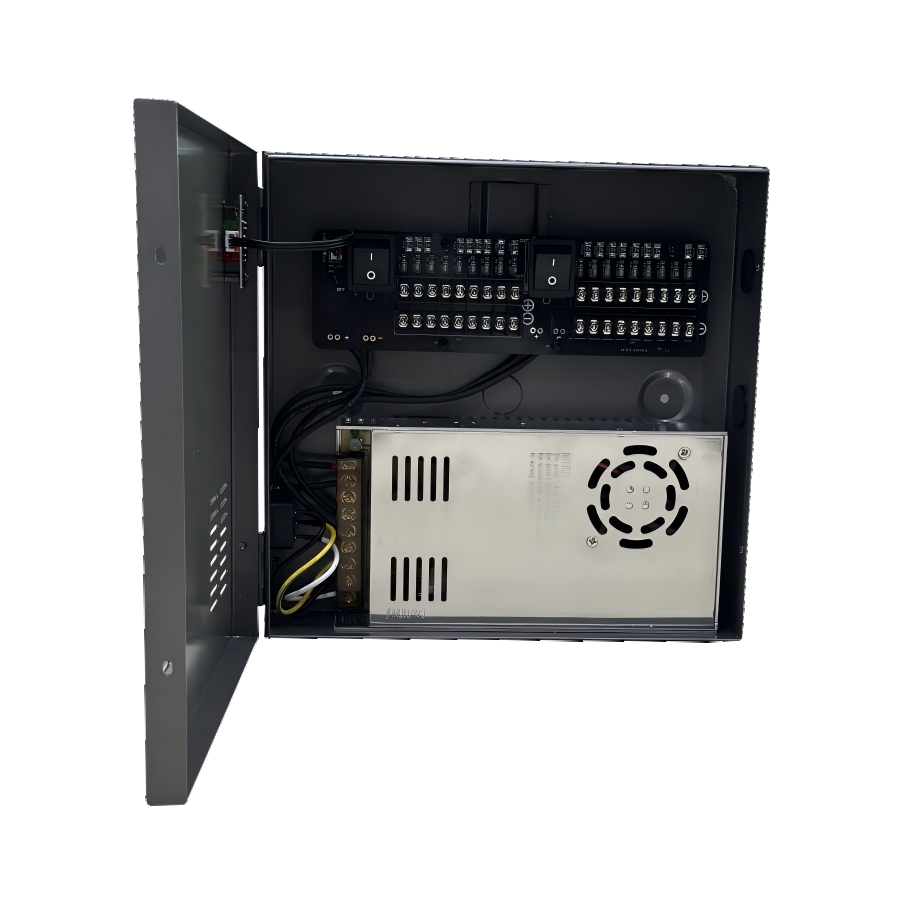

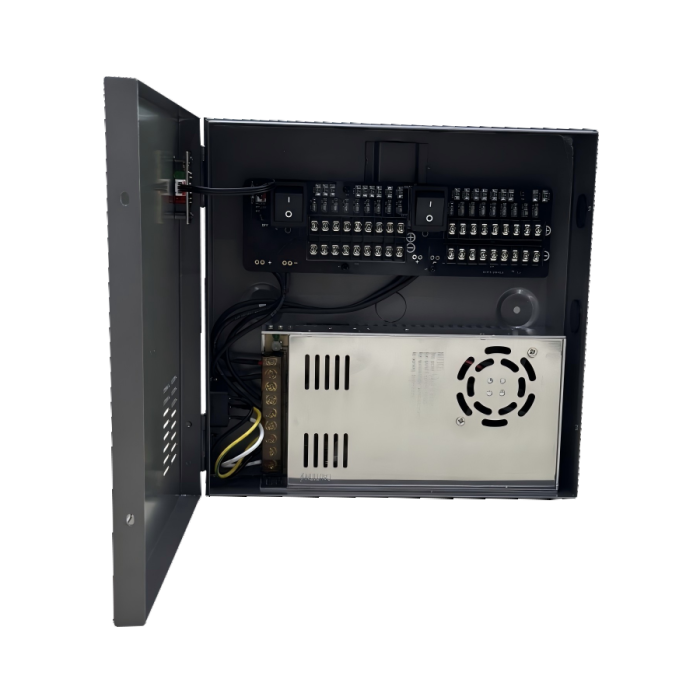

W-12VDC-18P30A UL 12V DC 30Amps 18-Channel UL-Listed Power Supply

Product Overview

The W-12VDC-18P30A UL is a high-capacity 18-channel 12V DC power supply engineered for demanding surveillance and network environments. Each channel outputs 1.66A with regulated 12V DC ±5% voltage, maintaining stable power under full load conditions. The unit includes comprehensive protections such as short-circuit shutdown with automatic restart, overload, and surge protection, ensuring continuous and safe operation of connected devices. Operating efficiently above 80% and supporting input voltages from 110–120VAC at 50/60Hz, it performs reliably across 0°C to 40°C and can be stored safely between -25°C to 75°C. UL certification guarantees compliance with safety standards, while compact dimensions allow convenient installation in professional rack or centralized power setups. This combination of high output, multi-channel management, and protective features makes it ideal for multi-camera or high-demand network deployments.

Key Features

• High-Capacity Multi-Channel Output: 18 channels delivering 1.66A each
• Automatic Fault Recovery: Channels reset automatically after short-circuit shutdown
• Comprehensive Protection Suite: Overload, surge, and short-circuit protection safeguards devices
• High Efficiency Performance: Operates above 80% efficiency for stable and reliable output
• Voltage Stability: 12V DC ±5% ensures consistent power across all channels
• UL-Listed Safety: Certified for professional CCTV and network installations
• Plug-and-Operate Design: Minimal setup required, fast deployment for multi-device systems

Key Specifications

• Output: 12V DC ±5%, 18 channels, total 30A (1.66A per channel)
• Input Voltage: 110–120VAC, 50/60Hz, input current 5A
• Protection: Short-circuit, overload, and surge protection with 2.0A PTC fuse
• Physical Size: 254 × 262 × 79 mm, UL-listed for safe and reliable operation
