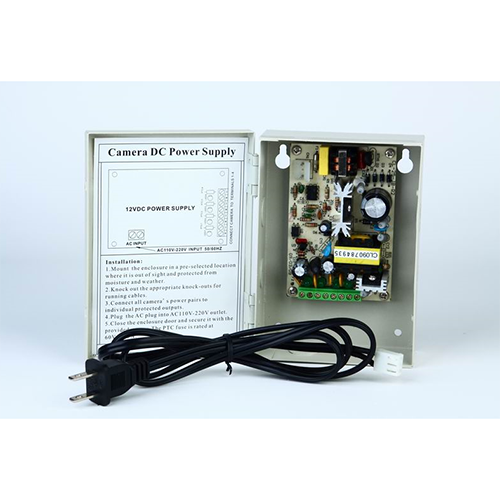

W-12VDC-4P/2A 12VDC/2 Amps 4 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY

Product Overview

The W-12VDC-4P/2A is a compact 4-channel 12V DC power supply designed for CCTV and small-scale surveillance systems. Each channel provides up to 0.65A output with regulated 12V DC ±5%, ensuring consistent operation for multiple devices. Integrated PTC fuses protect each channel against overcurrent, while individual LED indicators offer real-time visual monitoring of power status. The unit features built-in surge protection to safeguard connected cameras and equipment from electrical spikes. Operating efficiently at over 80%, it powers up in under three seconds and relies on natural heat dissipation for reliable performance. With minimal leakage current and low output ripple noise, it ensures clean, stable voltage. Its compact form factor makes it suitable for wall-mounted or centralized installations in professional environments.

Key Features

• Four Independent Channels: Each channel delivers up to 0.65A DC for multiple devices
• PTC Protection: Individual fuses prevent overcurrent and short-circuit damage
• LED Power Indicators: Visual status for each channel simplifies monitoring
• Surge Protection: Safeguards CCTV devices against power spikes
• Fast Startup: Ready in ≤3 seconds for immediate operation
• High Efficiency: ≥80% efficiency reduces energy loss and ensures stable output
• Low Ripple & Leakage: Maintains clean voltage with minimal interference

Key Specifications

• Output: 12V DC ±5%, 4 channels, total 2A (0.65A per channel)
• Input Voltage: 110–120VAC, 60Hz, input current ≤0.65A @100V
• Protection: PTC fuse 0.65A/60V per channel, integrated surge protection
• Performance: Output ripple 80mVp-p, fast startup ≤3s, natural heat dissipation
• Physical Size: 14.5 × 10.5 × 4.3 cm, compact design for CCTV setups
