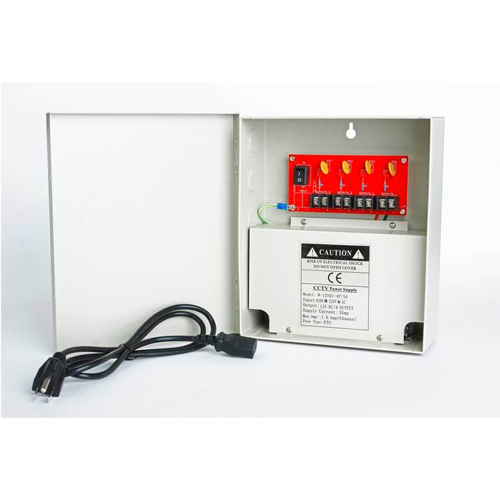

W-12VDC-4P/5A 12VDC 5 Amps 4 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY

Product Overview

The W-12VDC-4P/5A is a robust 4-channel 12V DC distributed power supply designed for professional CCTV systems. Each channel delivers up to 1.6A with regulated 12V DC ±5%, ensuring stable operation for multiple cameras or devices simultaneously. It features individual PTC fuses for overcurrent protection and LED power indicators for easy monitoring of each channel’s status. Built-in surge protection safeguards connected equipment from electrical spikes, while low output ripple and leakage current maintain clean and reliable voltage. With a rapid startup time of under three seconds and natural heat dissipation, this power supply delivers efficient performance in demanding environments. Compact yet powerful, it is ideal for wall-mounted or centralized installations in security and surveillance setups.

Key Features

• Four Independent Channels: Each channel outputs up to 1.6A for multiple CCTV devices
• PTC Overcurrent Protection: Prevents damage from short-circuit or overload
• LED Power Indicators: Real-time status monitoring for each channel
• Surge Protection: Safeguards devices from power spikes and surges
• High Efficiency: ≥80% efficiency ensures stable operation with minimal energy loss
• Rapid Startup: Powers up in ≤3 seconds for immediate deployment
• Clean Voltage Output: Low ripple and leakage current for safe and reliable device operation

Key Specifications

• Output: 12V DC ±5%, 4 channels, total 5A (1.6A per channel)
• Input Voltage: 110–120VAC, 60Hz, input current ≤1.0A @100V
• Protection: PTC fuse 1.6A/60V per channel, integral surge protection
• Performance: Output ripple 80mVp-p, fast startup ≤3s, natural heat dissipation
• Physical Size: 24.5 × 20.8 × 8.7 cm, suitable for wall-mounted or centralized CCTV installations
