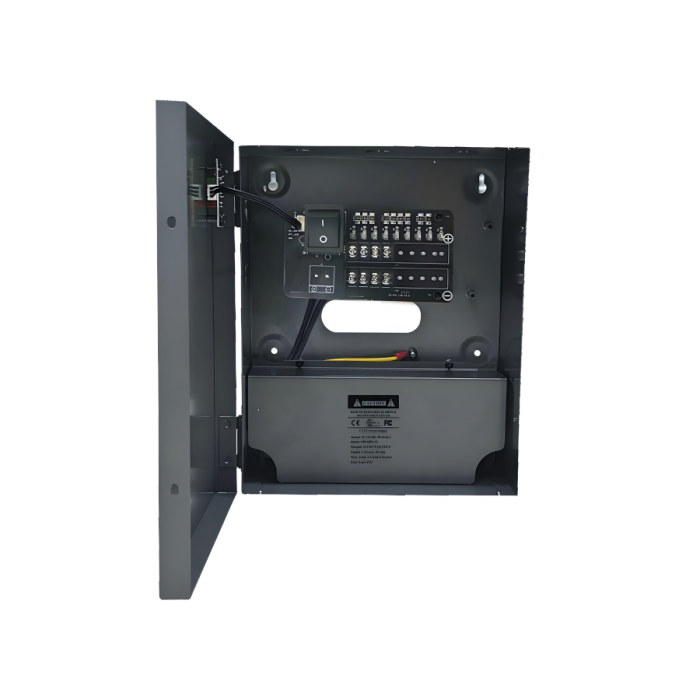

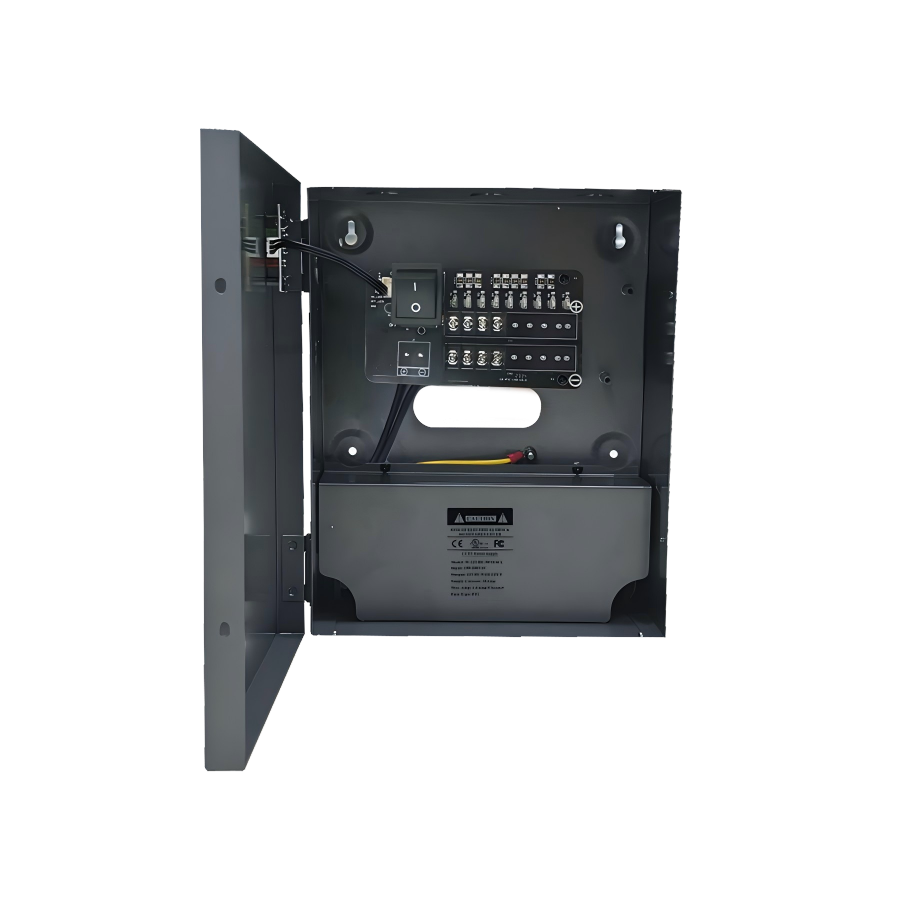

W-12VDC-4P5A UL 12V DC 5Amps 4-Channel UL-Listed Power Supply

Product Overview

The W-12VDC-4P5A UL is a reliable 4-channel 12V DC power supply engineered for professional surveillance and network systems. Each channel provides 1.25A with precise voltage regulation of ±5%, ensuring stable and consistent power even under full load. The unit features short-circuit protection with automatic restart, overload safeguards, and built-in surge protection to maintain safe operation of connected devices. Operating efficiently at over 80% efficiency, it accommodates a wide input voltage range of 100–240VAC at 50/60Hz and performs reliably in environments from 0°C to 40°C, with storage from -25°C to 75°C. UL certification ensures compliance with safety standards, while the compact design allows easy integration in centralized or distributed CCTV setups. With minimal leakage current and low output ripple, the supply provides clean and dependable power for multi-device installations.

Key Features

• Four Independent Channels: 1.25A per channel for reliable multi-device operation
• Automatic Recovery: Short-circuit shutdown triggers automatic restart
• Comprehensive Protection: Overload, surge, and short-circuit safeguards ensure safety
• High Efficiency: >80% efficiency for energy-saving and stable output
• Voltage Stability: 12V DC ±5% maintains consistent performance under full load
• UL-Listed Compliance: Certified for professional security and network installations
• Plug-and-Operate: Minimal configuration required for fast deployment

Key Specifications

• Output: 12V DC ±5%, 4 channels, total 5A (1.25A per channel)
• Input Voltage: 100–240VAC, 50/60Hz, input current 1.8A
• Protection: Short-circuit, overload, and surge protection with 1.5A PTC fuse
• Physical Size: 255 × 208 × 90 mm, UL-listed for safe and reliable operation
