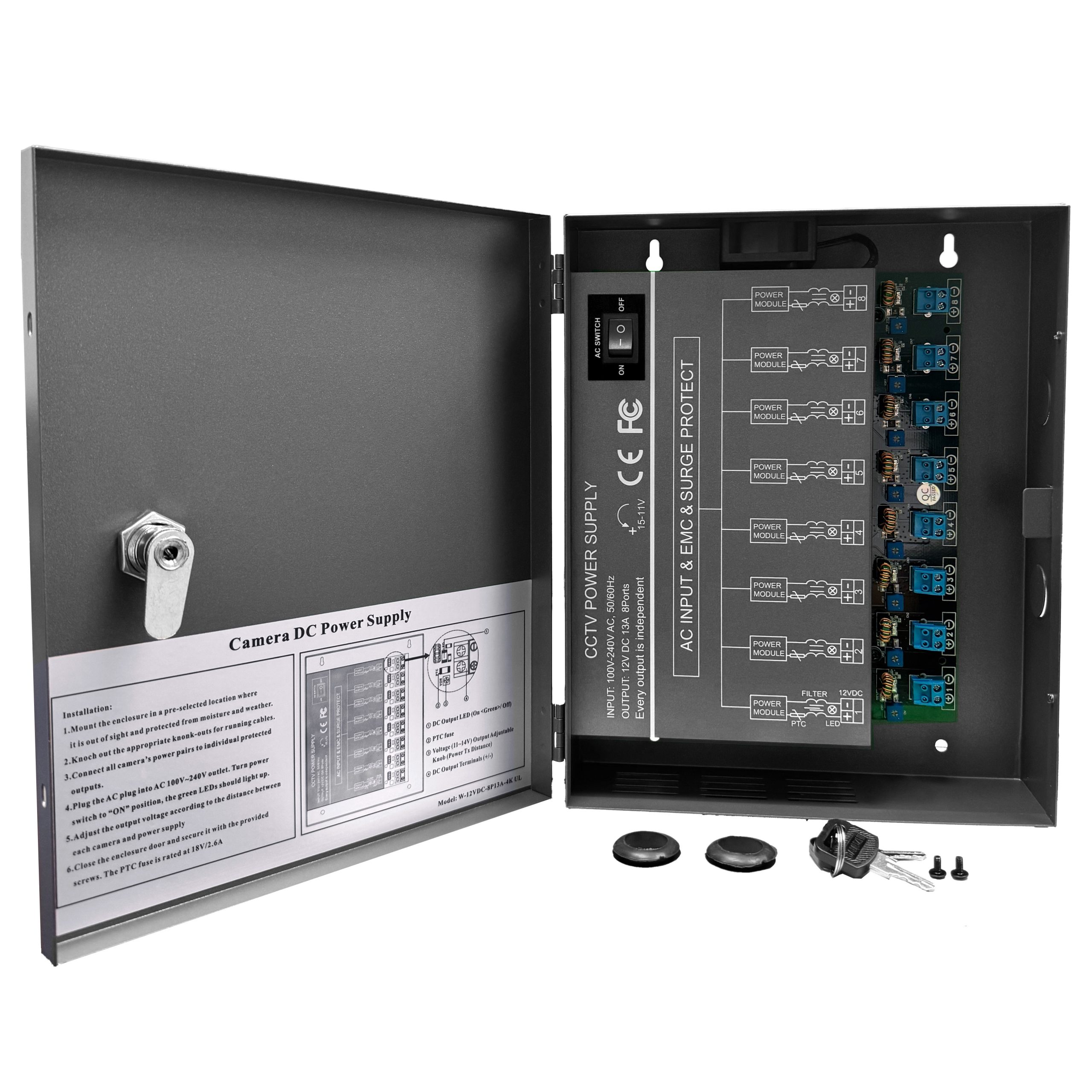

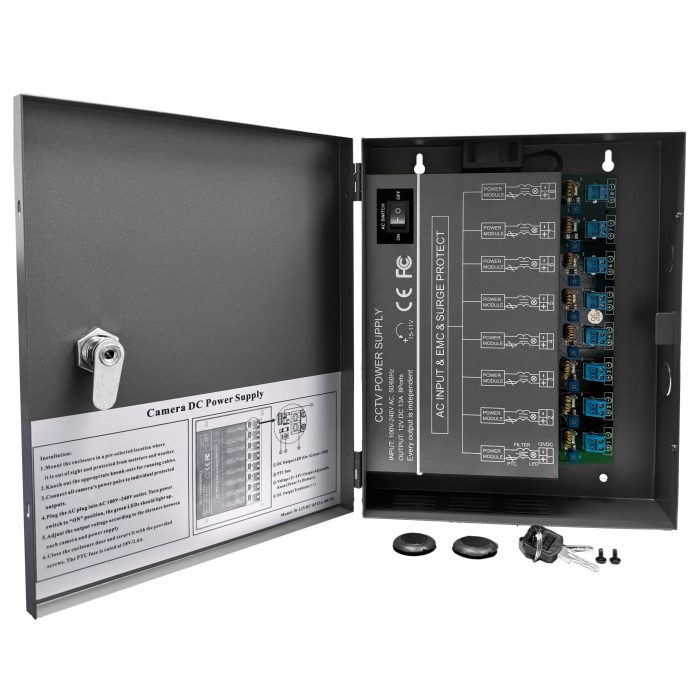

W-12VDC-8P13A-4K UL 8 channels of DC power supply for 4K/8M CCTV

Product Overview

The W-12VDC-8P13A-4K is a professional 8-channel 12V DC power supply designed for high-resolution 4K and 8M CCTV deployments. Each channel delivers 1.625A with regulated 12V DC ±5%, ensuring stable power for multiple cameras simultaneously. Smart voltage knobs help compensate for voltage drop, maintaining consistent performance across all channels. Integrated protection against overcurrent, overvoltage, short-circuits, and 6KVA surges safeguards connected devices. The unit features noise-free circuitry for exceptional image quality, while operating efficiently above 80%. With a wide input voltage range of 100–240VAC, input current of 3A, and operating temperature from 0°C to 40°C, it is suitable for both commercial and professional security installations. Its compact dimensions and UL certification make it a reliable and safe choice for multi-camera systems.

Key Features

• Eight Independent Channels: 1.625A per channel for consistent power delivery
• Smart Voltage Knobs: Compensate for voltage drop to maintain stable operation
• Comprehensive Protection: Overcurrent, overvoltage, short-circuit, and surge protection (6KVA)
• Noise-Free Design: Ensures clean power for optimal 4K/8M video performance
• High Efficiency: >80% efficiency reduces energy consumption and heat
• UL-Listed Certification: Meets safety standards for professional security installations
• Easy Terminal Access: Screw terminals simplify connections for multi-camera setups

Key Specifications

• Output: 12V DC ±5%, 8 channels, total 13A (1.625A per channel)
• Input Voltage: 100–240VAC, 50/60Hz, input current 3A
• Protection: Overcurrent, overvoltage, short-circuit, 6KVA surge, 2A PTC fuse
• Physical Size: 250 × 204 × 61 mm, UL-listed for safe and reliable operation
