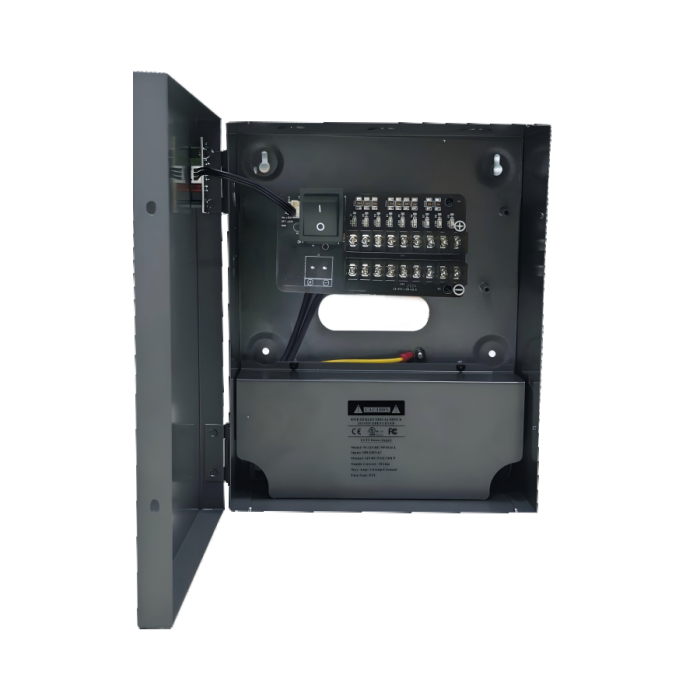

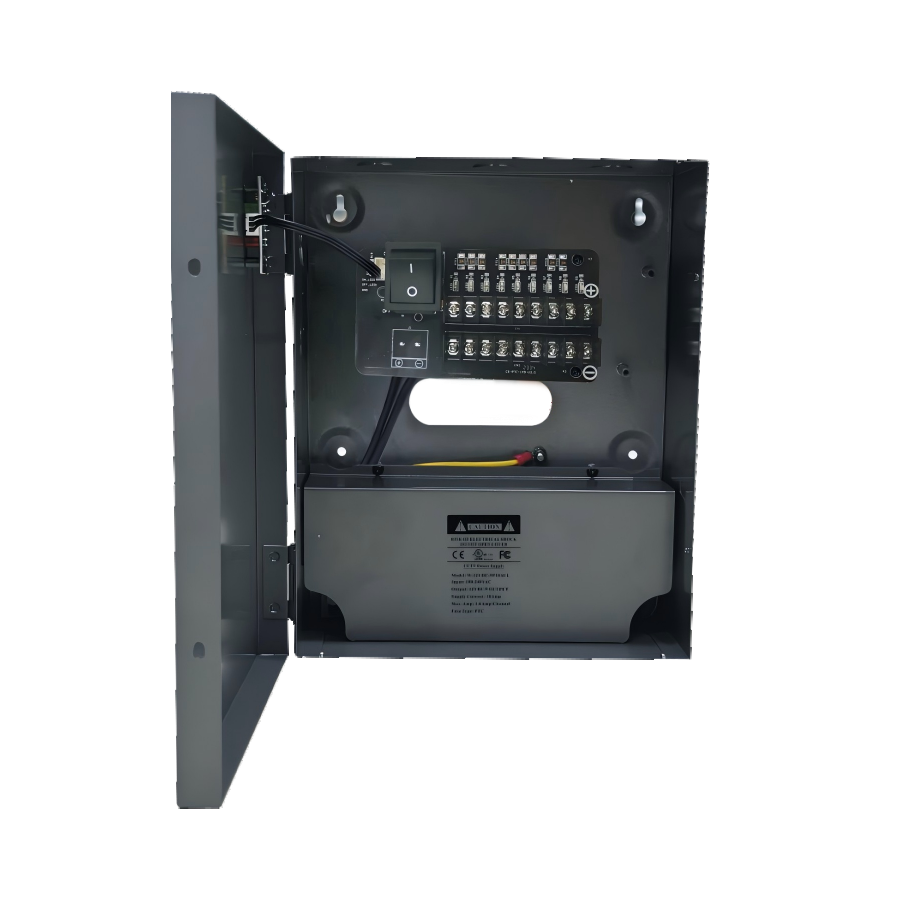

W-12VDC-9P10A UL 12V DC 10Amps 9-Channel UL-Listed Power Supply

Product Overview

The W-12VDC-9P10A UL is a professional 9-channel 12V DC power supply designed for centralized security and surveillance systems. Each channel delivers 1.11A with voltage regulation of ±5%, providing consistent power for multiple cameras and devices simultaneously. The unit incorporates short-circuit protection with automatic restart, overload safeguards, and surge protection to maintain safe operation of connected equipment. Operating efficiently above 80%, it supports a wide input voltage range of 100–240VAC with input current of 2.5A at 50/60Hz. Designed to perform reliably in environments from 0°C to 40°C, with storage from -25°C to 75°C, it ensures stable operation under demanding conditions. UL certification confirms safety compliance, while low ripple and leakage currents provide clean power for sensitive devices. Compact and robust, it is suitable for wall-mounted or centralized CCTV applications.

Key Features

• 9 Independent Channels: 1.11A per channel for consistent multi-device power
• Automatic Recovery: Short-circuit shutdown triggers automatic restart
• Comprehensive Protection: Overload, surge, and short-circuit safeguards
• High Efficiency: >80% efficiency for reduced energy consumption
• Voltage Stability: 12V DC ±5% maintains reliable operation under full load
• UL-Listed Compliance: Meets safety standards for professional security installations
• Quick Deployment: Plug-and-play design for easy integration

Key Specifications

• Output: 12V DC ±5%, 9 channels, total 10A (1.11A per channel)
• Input Voltage: 100–240VAC, 50/60Hz, input current 2.5A
• Protection: Short-circuit, overload, surge protection with 1.5A PTC fuse
• Physical Size: 255 × 208 × 90 mm, UL-listed for safe, reliable operation
