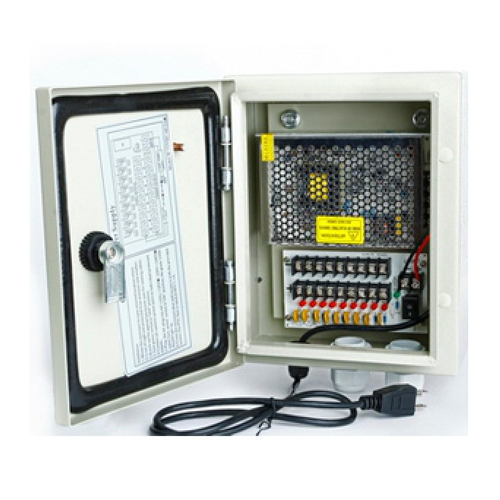

W-12VDC-9P10AWP 12VDC 10 Amps 9 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY Water resistant

Product Overview

The W-12VDC-9P10AWP is a robust 9-channel 12V DC power supply engineered for distributed CCTV installations, including outdoor setups requiring waterproof protection. Each channel delivers 1.1A with regulated 12V DC ±5%, ensuring stable operation across all connected devices. The unit integrates individual PTC output protection, LED power indicators, and surge protection, safeguarding cameras and network devices from short circuits and voltage spikes. With low output ripple (110mVp-p) and rapid startup response under 3 seconds, it delivers clean and reliable power. Operating efficiently at 100–120VAC input and 50/60Hz, it supports environments with high humidity and outdoor conditions. Compact yet durable, this power supply combines performance, safety, and water-resistant design for professional CCTV deployments.

Key Features

• 9 Independent Channels: 1.1A per channel for consistent multi-device power
• Waterproof Housing: Ensures reliability in outdoor or harsh environments
• Individual PTC Protection: Automatic shutdown and self-recovery per channel
• LED Power Indicators: Visual confirmation of channel operation and load status
• Surge Protection: Protects connected devices from overvoltage and spikes
• Low Ripple Design: Clean 12V DC output for stable video performance
• Fast Startup: Response time ≤3 seconds for immediate operation

Key Specifications

• Output: 12V DC ±5%, 9 channels, total 10A (1.1A per channel)
• Input Voltage: 110–120VAC, 60Hz, input current ≤1.6A
• Protection: Individual PTC fuses, surge protection, short-circuit safe
• Operating Conditions: Water-resistant, natural heat dissipation, leakage ≤0.02mA
• Physical Size: 120W12V10A9P, compact design for distributed CCTV installations
