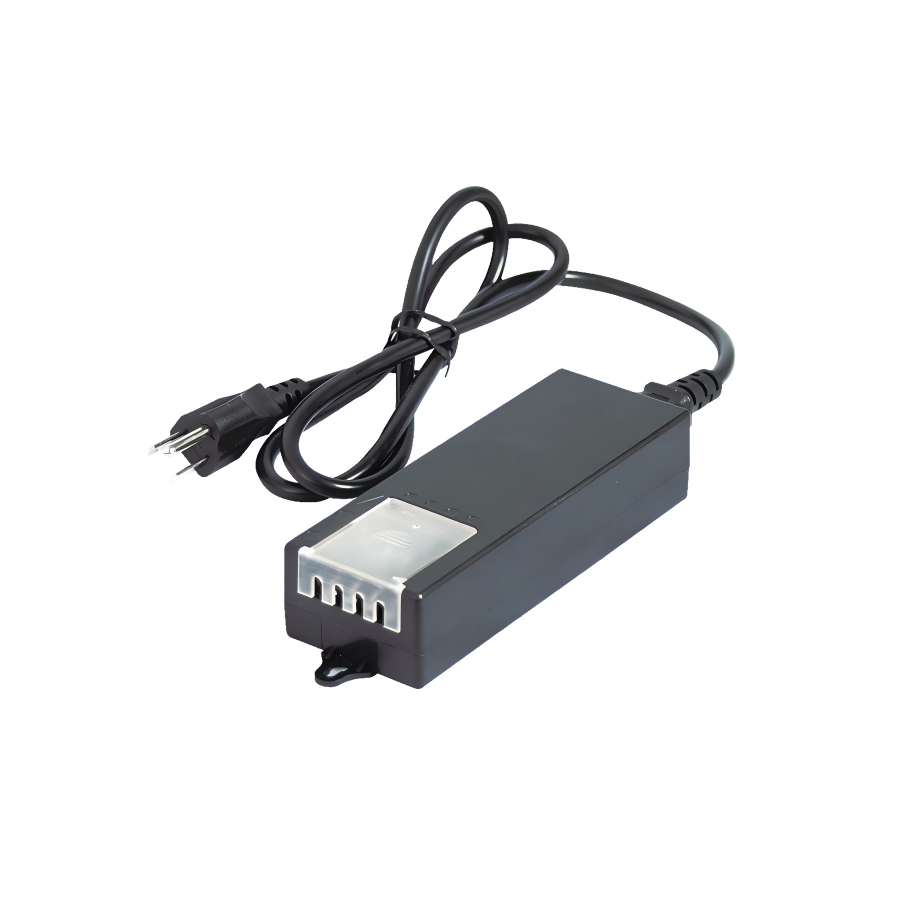

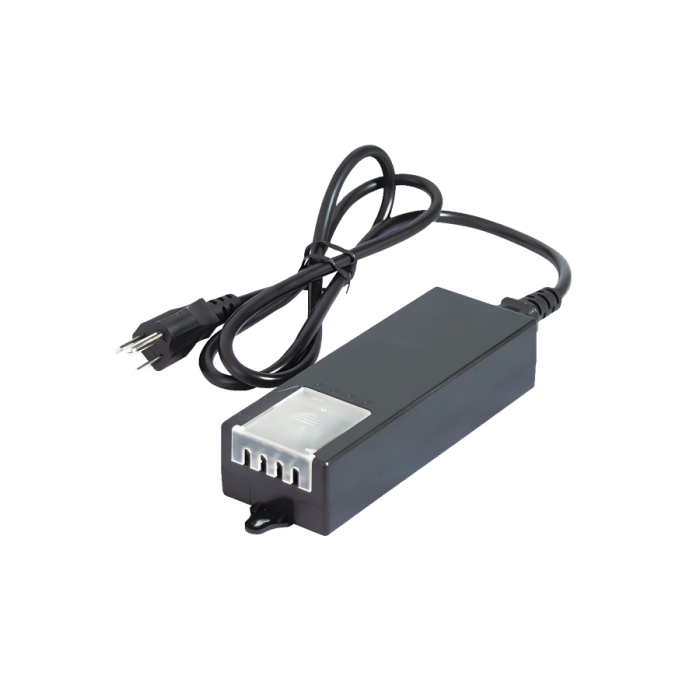

W-12VDC-SA4P5A UL 12V DC 5Amps 4-Channel UL-Listed Power Supply

Product Overview

The W-12VDC-SA4P5A UL is a 4-channel 12V DC power distribution system designed for professional security and CCTV setups. Each channel delivers up to 5A with adjustable output voltage ranging from 12V to 13.8V, making it suitable for long-distance transmission and maintaining stable operation of connected devices. The unit incorporates built-in 6A overcurrent protection and LED indicators for real-time status monitoring. Supporting a wide input voltage range of 100–240VAC, it can be deployed worldwide with consistent performance. Efficiency exceeds 80%, reducing energy consumption while ensuring clean and regulated DC output. Voltage regulation ensures 11.6V–13.2V under full load, protecting sensitive cameras and network devices. Compact and reliable, it is ideal for multi-camera installations, distributed networks, and long cable runs.

Key Features

• Four Independent Channels: Each channel supplies stable 12V DC to multiple devices
• Adjustable Voltage Output: 12V–13.8V for long-distance CCTV transmission
• Overcurrent Protection: Built-in 6A PTC safeguards connected equipment
• LED Status Indicators: Visual channel monitoring for easy management
• Wide Input Range: Supports AC 100–240V, 50/60Hz for global compatibility
• High Efficiency Operation: >80% energy-saving design
• Reliable Full-Load Performance: Voltage maintained between 11.6V–13.2V under full load

Key Specifications

• Output Voltage: 12V~13.8V DC, 4 channels, 5A total output
• Input Voltage: 100–240VAC, 50/60Hz, rated 220VAC, input current 1.6A
• Protection: Overcurrent protection 6A PTC per channel
• Efficiency: >80%, stable power delivery for sensitive equipment
• Voltage Regulation: 11.6–13.2V under full load, ensuring reliable operation
