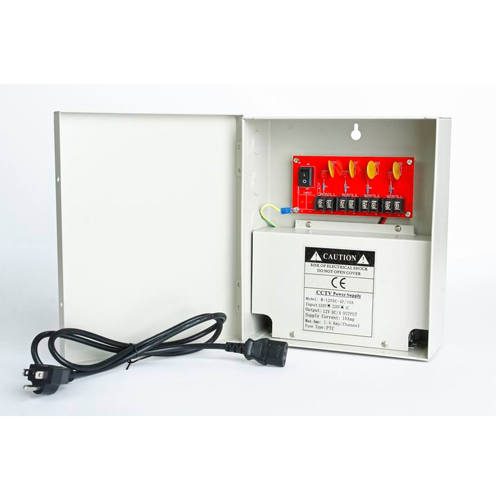

W-12VDC4P/10A 12V DC 10 Amps 4 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY

Product Overview

The W-12VDC4P/10A is a 4-channel distributed 12V DC power supply designed for professional CCTV and security deployments. Each channel provides up to 2.5A output with integrated PTC protection, safeguarding devices from overcurrent and surges. LED indicators allow immediate visual feedback of each channel’s operation, while the system delivers low ripple noise (110mVp-p) to maintain stable performance for high-resolution cameras. The unit operates efficiently at ≥80% and supports a wide input voltage of 110–120VAC, making it suitable for various installations. Natural heat dissipation ensures reliable long-term operation without active cooling, and the rapid startup response of ≤3 seconds allows quick power availability for connected devices. Compact and robust, it is ideal for multi-camera networks in hotels, offices, and surveillance projects requiring reliable DC distribution.

Key Features

• Four Independent Channels: Each channel provides stable 12V DC output up to 2.5A
• PTC Overcurrent Protection: Safeguards each channel against short circuits and overloads
• LED Channel Indicators: Immediate status display for easy monitoring
• Surge Protection: Protects connected equipment from voltage spikes
• High-Efficiency Design: ≥80% efficiency reduces energy consumption
• Low Ripple Noise: 110mVp-p ensures stable operation of sensitive devices
• Fast Startup: Power available in ≤3 seconds for connected loads

Key Specifications

• Output Voltage: 12V DC ±5%, 4 channels, total 10A output
• Input Voltage: 110–120VAC, 60Hz, input current ≤1.6A
• Fuse Type: PTC 2.5A/60V per channel for protection
• Efficiency: ≥80% with natural heat dissipation
• Output Ripple Noise: 110mVp-p @ full load, maintaining clean DC output
