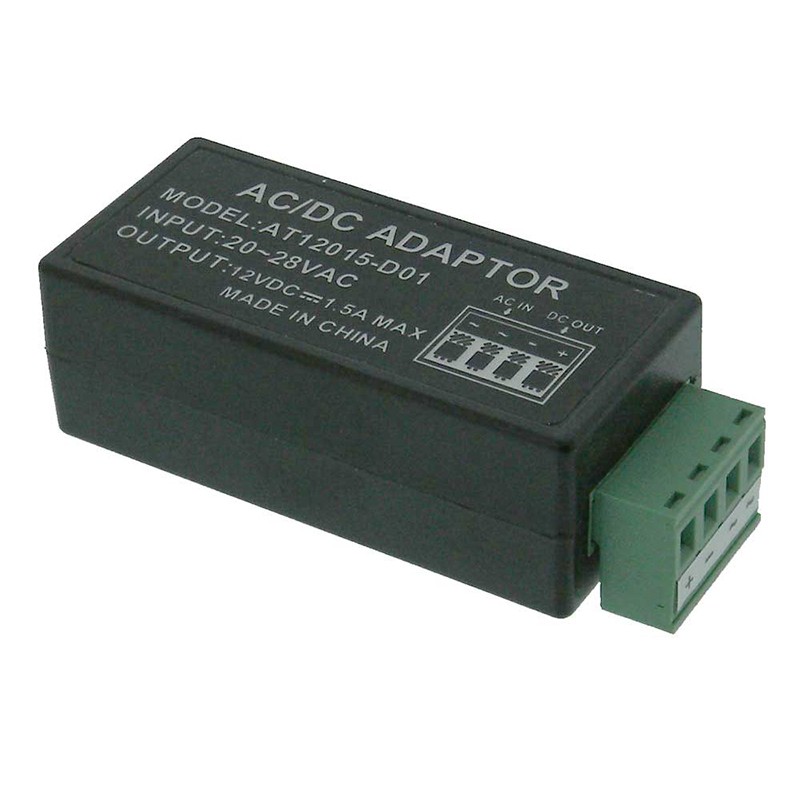

W-24T1812 24VAC to 12VDC Power Converter 18W

Product Overview

The W-24T1812 is a reliable power converter engineered for surveillance and security systems, converting 24VAC input into stable 12VDC output. It delivers up to 1.5A of current, providing 18W of total power to support CCTV cameras and related devices. Designed with low ripple noise (≤100mV), the unit ensures clear and uninterrupted performance. Operating efficiently at ≥80% and rated for temperatures from -10°C to +45°C, it is built for consistent operation with a mean time between failures exceeding 20,000 hours. Its compact form factor and terminal strip connection simplify installation in both new and existing systems.

Key Features

• Reliable AC-to-DC Conversion: Converts 24VAC to stable 12VDC output
• Low Ripple & Noise: Ensures clear and reliable surveillance imaging
• High Efficiency: ≥80% efficiency reduces energy loss and heat
• Wide Operating Temperature: Supports -10°C to +45°C for versatile deployment
• Long Service Life: MTBF >20,000 hours for continuous operation
• Compact & Easy Installation: Terminal strip connection for quick setup
• Consistent Power Delivery: Provides up to 1.5A per channel to multiple devices

Key Specifications

• Power supply is specially designed for surveillance cameras.
• Input Voltage (Input Voltage): 20-28VAC
• Output Voltage: 12VDC
• Output Current: 1.5A Max
• Total Power: 18 Watt
• Noise/Ripple: <= 100mV
• Efficiency Rate:> = 80%
• Operation temperature: -10 to +45 degree Celsius
• Average working life (MTBF):> 20,000 hours (Hour)
• Connection: Terminal Strip

• L:3″ O/AW:1-3/16″T:7/8″WT:.1
