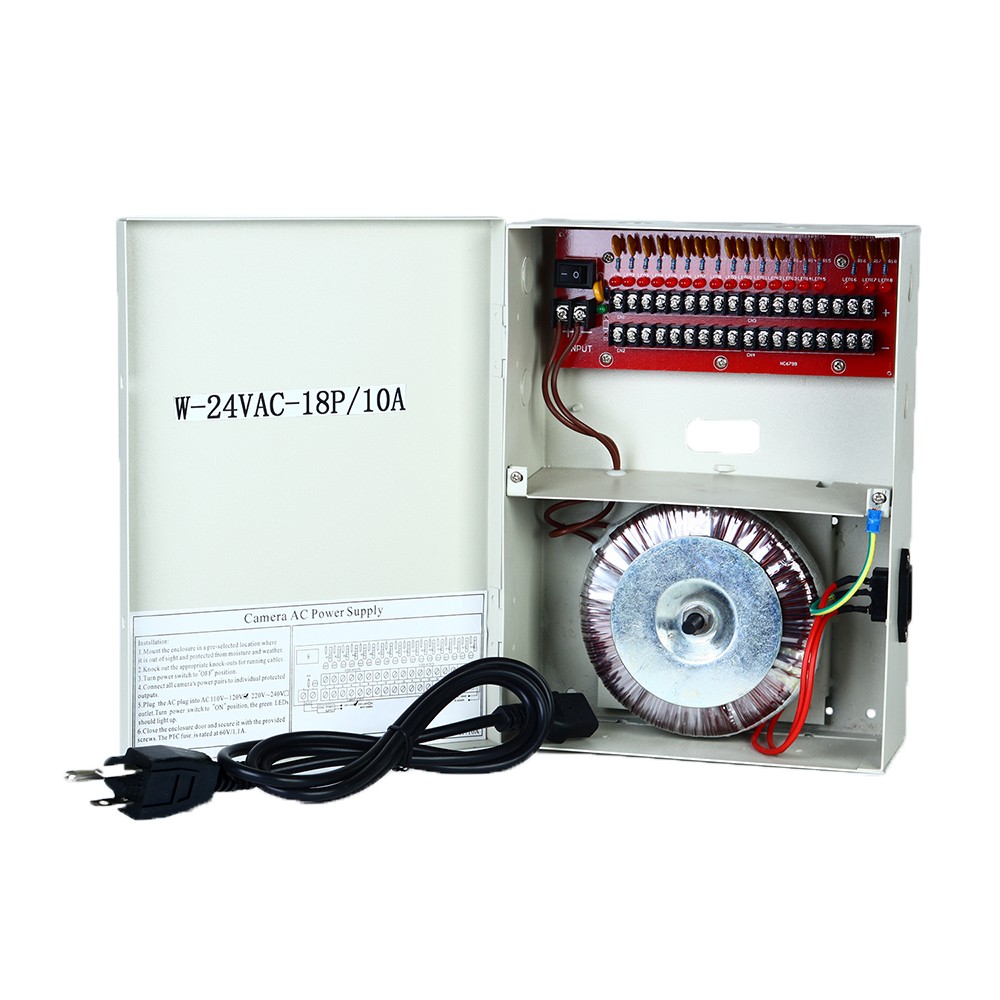

W-24VAC-18P10A 24VAC 10 Amps 18 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY

Product Overview

The W-24VAC-18P10A is a robust distributed power solution designed to supply 24VDC to multiple surveillance cameras or CCTV devices. Featuring 18 independent channels, it delivers a total of 10A current while protecting each channel individually with PTC fuses. The unit includes surge protection and LED indicators for monitoring each channel’s status. Efficient heat dissipation and stable voltage output ensure reliable performance under continuous operation. Its input supports standard 110/120VAC, making it compatible with common power sources, while its terminal-based output allows flexible connection to multiple devices. This system is ideal for large-scale installations where reliability and channel-specific protection are critical.

Key Features

• Multi-Channel Distribution: 18 separate channels with individual current control
• Overload & Surge Protection: Integral safeguards prevent damage to connected devices
• LED Status Indicators: Visual monitoring of power delivery for each channel
• Stable Voltage Output: 24VAC ±5% ensures consistent device performance
• High Current Capacity: 10A total output, 1.1A per channel
• Efficient Heat Dissipation: Natural cooling supports long-term operation
• Flexible Connections: Three-pin input socket with multi-channel screw terminal output

Key Specifications

• Input Voltage: 110–120VAC, 60Hz
• Output Voltage: 24VAC ±5%
• Output Current: 10A total, 1.1A per channel
• Number of Channels: 18 independent channels
• Fuse Type: PTC 1.1A/60V per channel
