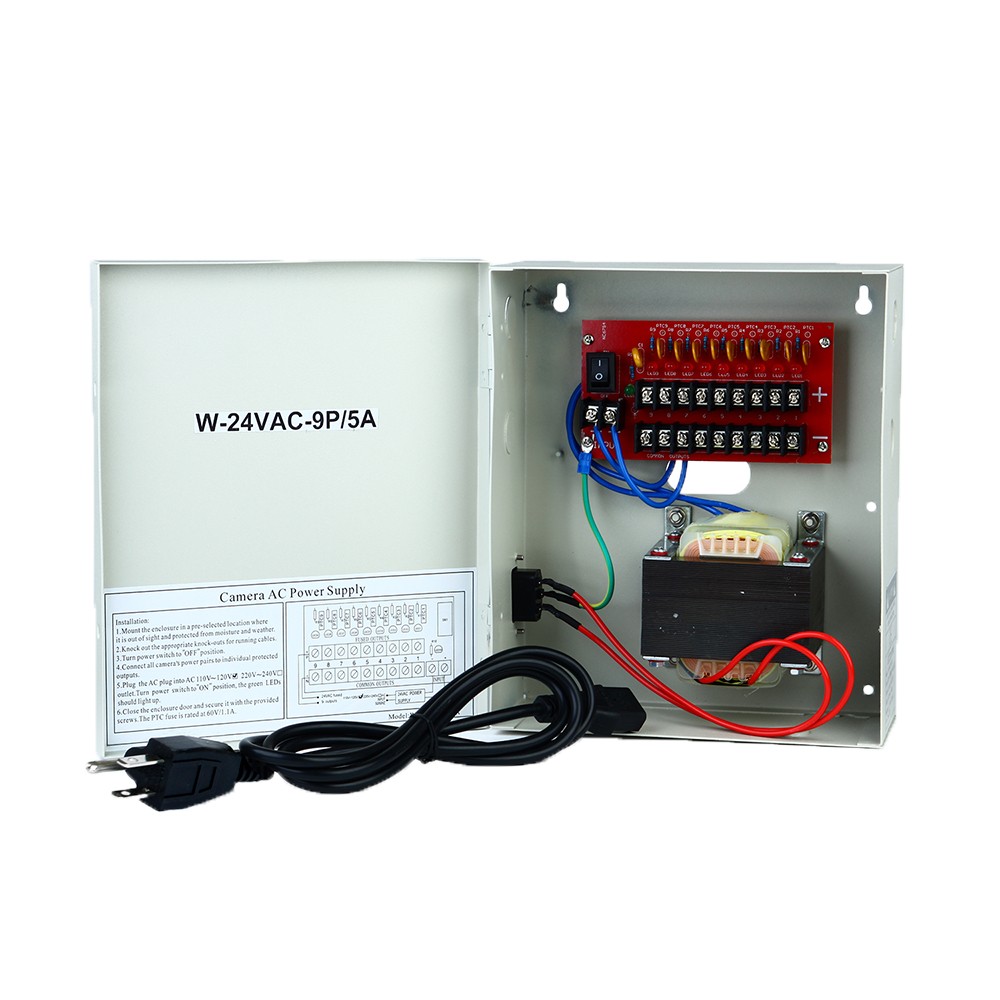

W-24VAC-9P5A 24VAC 5 Amps 9 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY

Product Overview

The W-24VAC-9P5A is designed to supply stable 24VDC power across 9 independent channels for CCTV and surveillance systems. Each channel delivers 1.1A, protected by PTC fuses to prevent overload or short-circuit events. The system features integral surge protection and LED indicators to monitor channel status in real-time. Its input supports standard 110/120VAC power, and output connections use screw terminals for flexible deployment. With natural heat dissipation and robust overcurrent safeguards, it ensures continuous operation for small to medium-scale security installations. This solution is ideal where reliable multi-channel power distribution is required.

Key Features

• Multi-Channel Power Delivery: 9 channels with individual current handling
• PTC Fuse Protection: Automatic recovery after short-circuit or overload
• Surge Protection: Guards sensitive CCTV equipment from voltage spikes
• LED Power Indicators: Quick visual check of channel status
• Stable 24VAC Output: Maintains ±5% voltage regulation under load
• Overcurrent & Short-Circuit Safety: Individual channel protection ensures continuity
• Flexible Connection Options: Three-pin input and 9-channel output terminals

Key Specifications

• Input Voltage: 110–120VAC, 60Hz
• Output Voltage: 24VAC ±5%
• Output Current: 5A total, 1.1A per channel
• Number of Channels: 9 independent channels
• Fuse Type: PTC 1.1A/60V per channel
