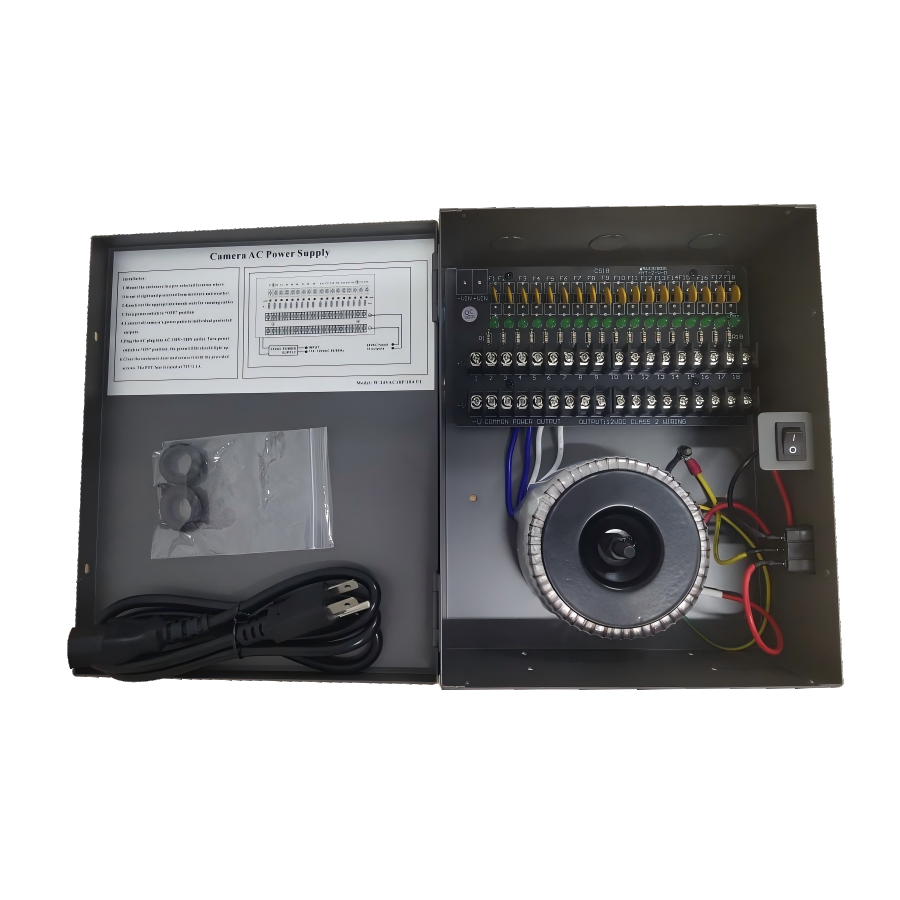

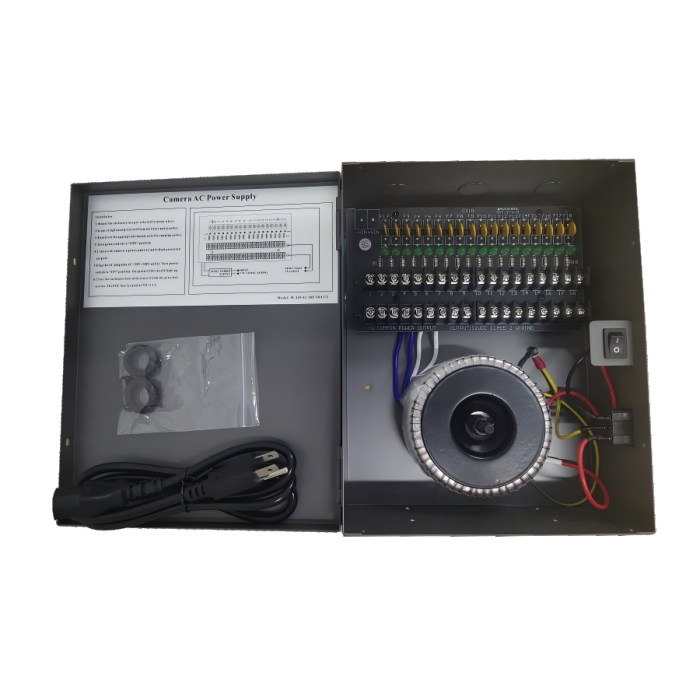

W-24VAC18P-10A UL 24V AC 10Amps 18-Channel Ul-Listed Power Supply

Product Overview

The W-24VAC18P-10A is a high-performance UL-listed power supply designed for demanding CCTV installations. It converts standard 110–120V AC input into stable 24V AC output across 18 independent channels, each delivering up to 0.55A. Built with advanced surge and overload protection, it ensures continuous operation even in challenging conditions. Automatic short-circuit shutdown and restart protect both the power supply and connected devices. With efficiency greater than 80% and precise voltage regulation, this unit is perfect for large-scale surveillance setups that require consistent and reliable power distribution.

Key Features

• Multi-Channel Distribution: 18 independent channels for versatile CCTV setups
• High Efficiency: >80% efficiency reduces energy loss
• Protection System: Short-circuit, overload, and surge protection
• Automatic Restart: Restores operation after fault conditions
• Stable Output: Voltage regulation ±5% under full load
• Professional Reliability: UL-listed for safety and compliance
• Optimized for CCTV: Supports long-term continuous surveillance operation

Key Specifications

• Input Voltage: 110–120V AC
• Output Voltage: 24V AC ±5%
• Total Output Current: 10A (0.55A per channel)
• Channels: 18 independent channels
• Fuse Type: 1.1A PTC for safe operation
