W-24VAC18P/5A 24VAC 5Amps 18 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY

Product Overview

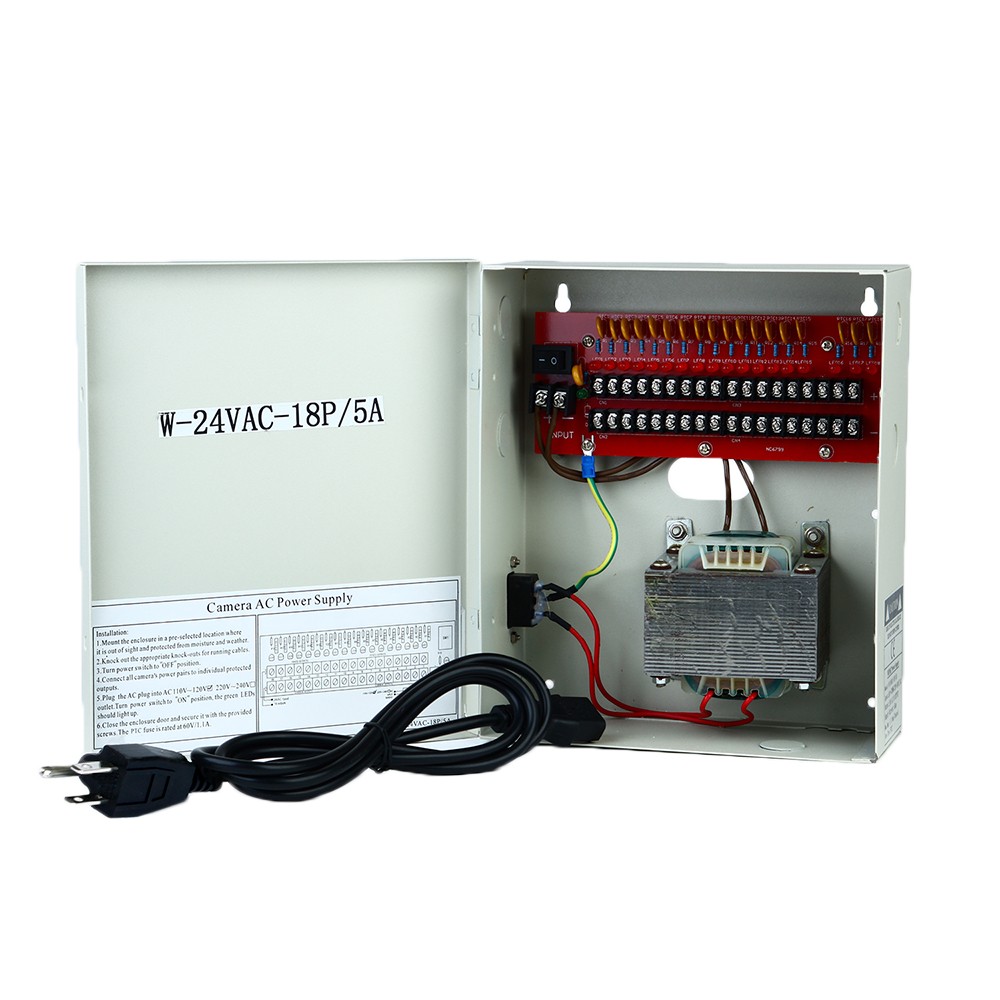

The W-24VAC18P/5A is a robust 18-channel power supply designed for professional CCTV networks. It converts standard 110–120V AC input into regulated 24V AC output, supporting a total current of 5A with a maximum of 1.1A per channel. Each channel features individual PTC protection and LED power indicators, ensuring safe operation under variable load conditions. With integrated surge protection and automatic response to faults, this unit maintains uninterrupted surveillance performance. Its natural heat dissipation design, combined with a three-pin socket input and multi-channel output, guarantees reliable operation for long-term deployments. Ideal for medium-scale surveillance systems requiring consistent and secure power distribution.

Key Features

• Multi-Channel Support: 18 separate outputs for flexible CCTV setups
• Channel Protection: PTC fuse on each channel prevents overcurrent damage
• Surge & Short-Circuit Safeguards: Protects connected devices
• LED Power Indicators: Instant visual status for each channel
• Stable Output: Voltage regulation ±5% across all channels
• Reliable Operation: Natural heat dissipation for continuous performance
• Optimized for Surveillance: Ensures consistent power for 24/7 camera operation

Key Specifications

• Input Voltage: 110–120V AC, 60Hz
• Output Voltage: 24V AC ±5%
• Total Output Current: 5A (1.1A per channel)
• Channels: 18 independent channels
• Fuse Type: 1.1A PTC per channel
