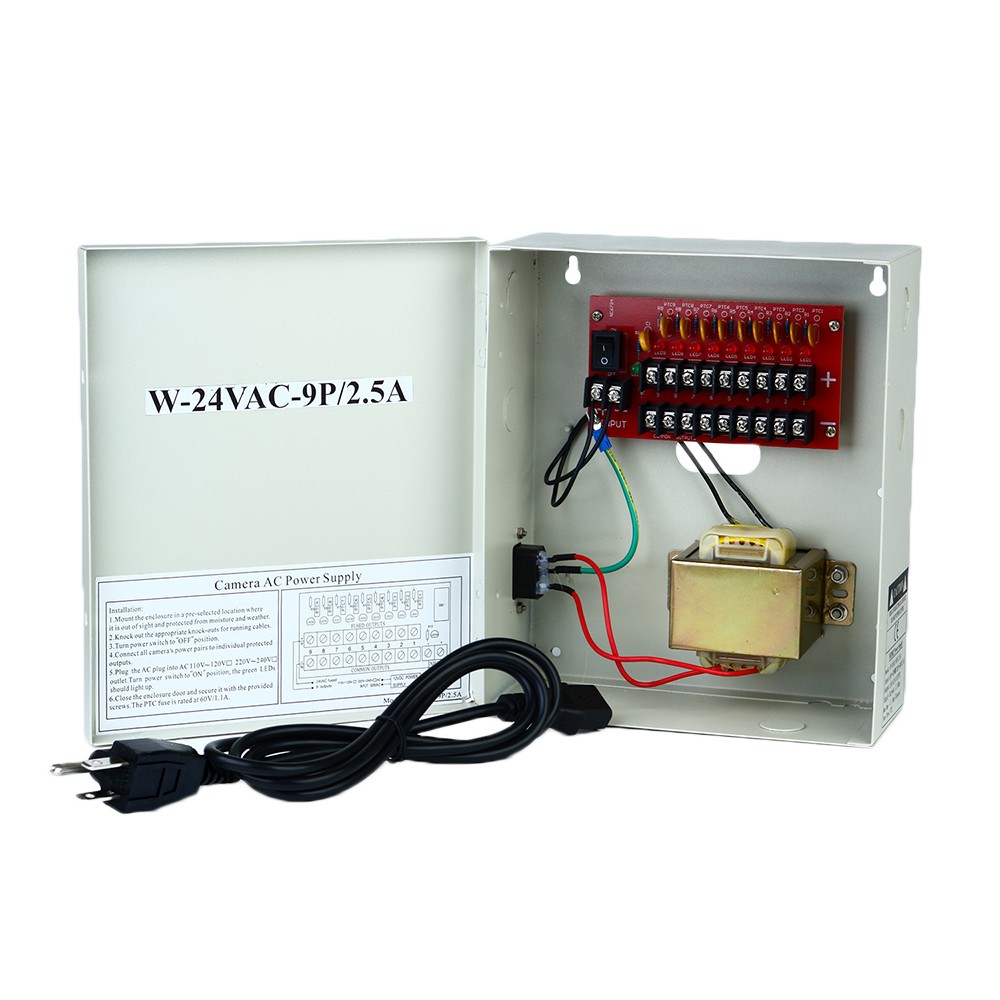

W-24VAC9P/2.5A 24VAC 2.5Amps 9 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY

Product Overview

The W-24VAC9P/2.5A is a high-efficiency 9-channel power supply engineered for professional CCTV installations. Operating from standard 110–120V AC input, it provides a regulated 24V AC output with 2.5A total current, supporting up to 1.1A per channel. Each channel is individually protected with PTC fuses and includes LED indicators for quick visual monitoring. Integrated surge and short-circuit protection ensures connected devices remain safe under varying loads. With natural heat dissipation and a three-pin input socket, this power supply guarantees reliable performance for long-term surveillance operation. It is ideally suited for small to mid-scale security camera networks requiring consistent and safe power distribution.

Key Features

• Multi-Channel Output: 9 separate channels for flexible CCTV deployment
• Channel Safety: PTC fuse per channel prevents overcurrent damage
• Surge & Short-Circuit Protection: Safeguards connected cameras
• LED Indicators: Real-time status display for each channel
• Stable Voltage: Maintains 24V AC ±5% under load
• Continuous Reliability: Natural heat dissipation for extended operation
• Optimized for Surveillance: Delivers steady power for uninterrupted camera function

Key Specifications

• Input 110/120 VAC
• Output 24V DC，9channels
• 2.5 Amp Supply Current
• Integral Surge Protection
• Individual LED Power Indication
• Individual PTC Output Protection
• Max. Amp: 1.1Amp/ch
