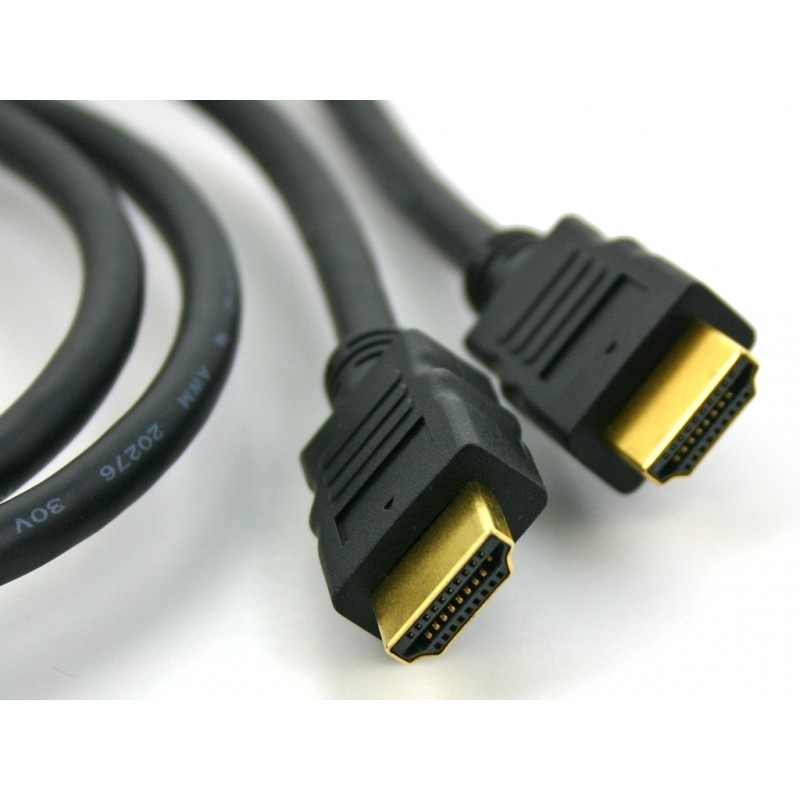

W-HD0402-6 6FT HDMI V1.4 Cable– HDMI-plug 19 pin
Click to enlarge
WINIC

W-HD0402-6 6FT HDMI V1.4 Cable– HDMI-plug 19 pin

6FT HDMI V1.4 Cable– HDMI-plug 19 pin

Add to wishlist
SKU: W-HD0402-6 Category:
Description
  • HDMI V1.4 HDMI-plug 19 pin
  • 6 ft Support 4K output.
Additional information
Conductor

30AWG/28AWG/26AWG Pure Copper
Insulation

PVC
Shielded

Aluminum Foil + 30AWG Solid Drain Wire
Jacket

PVC
Overall Diameter

5.5mm/7.3mm/7.3mm
Connectors

24K Gold Plated HDMI Type A Male to Teype A Male 19 Pin

,

Male to Male
Voltage

DC300V 5M ohm/10ms
Insulation Resistance

10M min
Contact Resistance

2 ohm max
Data transfer rate

10.2Gbps Max
Differential Impedance

100±10Ω(TDR)
Standards

CE & RoHS Compliant
