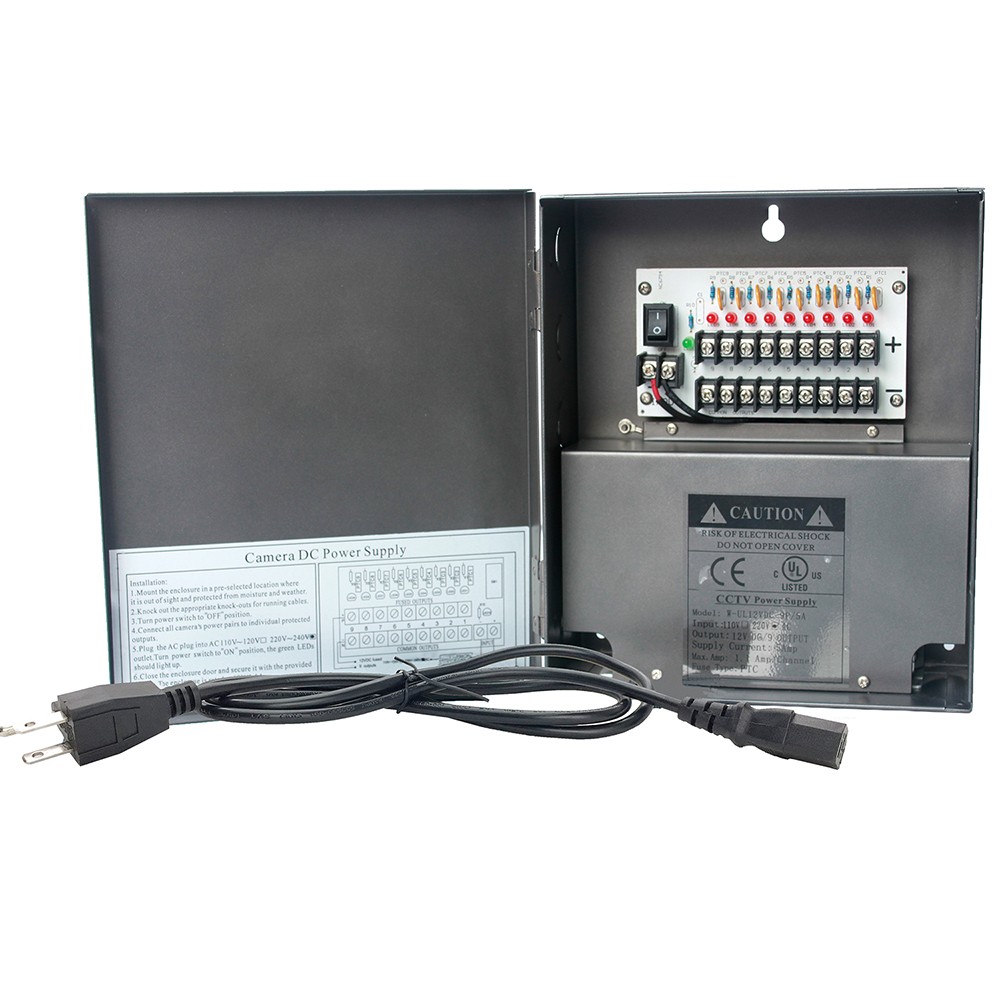

W-UL12VDC9P5A 12VDC 5Amps 9 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY UL LISTED

Product Overview

The W-UL12VDC9P5A is a UL-listed 9-channel power supply designed for reliable CCTV operation. Operating from 110–120V AC input, it delivers regulated 12V DC output with a total current of 5A, ensuring stable power across all connected devices. Each channel is individually protected with PTC fuses and features LED indicators for easy visual monitoring. The built-in surge protection minimizes risks to sensitive surveillance equipment, while a rapid startup response of ≤3 seconds ensures cameras become operational quickly. Its low leakage current and minimal ripple output further guarantee high-quality power delivery. Ideal for multi-camera setups, this power supply blends safety, efficiency, and practical functionality for professional installations.

Key Features

• UL Listed Certification: Meets safety standards for commercial installations
• Multi-Channel Distribution: 9 independent outputs for flexible setups
• PTC Fuse Protection: Individual overcurrent protection per channel
• Surge-Resistant Design: Safeguards CCTV devices from voltage spikes
• LED Status Indicators: Easy monitoring of each channel’s operation
• Fast Startup: Less than 3-second activation for connected cameras
• Stable Power Delivery: Maintains 12V DC ±5% under full load

Key Specifications

• Input 110/20 VAC
• Output 12V DC，9channels
• 5Amp Supply Current
• Integral Surge Protection
• Individual LED Power Indication
• Individual PTC OutputProtection
• Max. Amp: 1.1Amp/ch
• UL Listed
