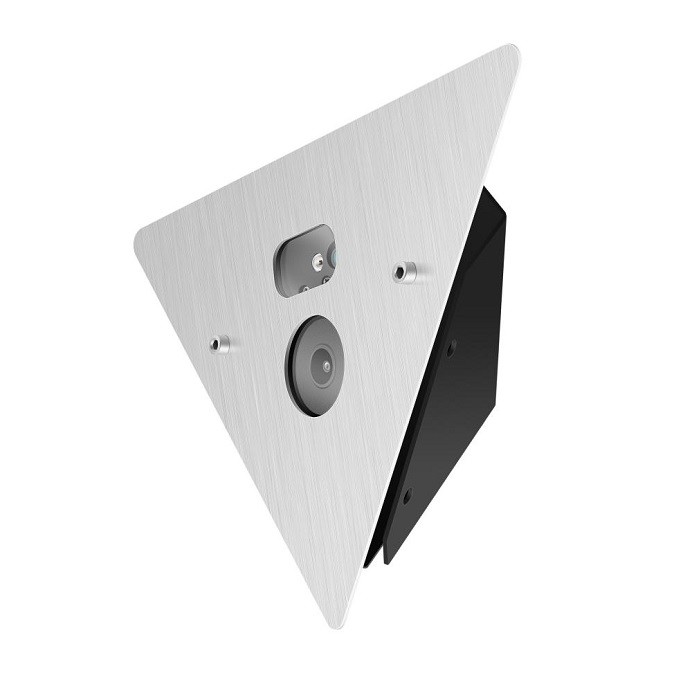

WNC2016-EV 6MP HD Elevator fixed IP Camera

Product Overview

The WNC2016-EV is a 6MP HD fixed IP camera specially designed for elevator surveillance. Featuring a 1/2.8″ Sony CMOS sensor, it delivers real-time 3072 × 2048 resolution for crisp and detailed images. Its ultra-low light sensitivity of 0.01 Lux ensures visibility in dim conditions, while the integrated IR LED provides night monitoring up to 5–6 meters. Advanced imaging technologies, including DWDR, 2D/3D-DNR, BLC, and HLC, maintain clarity under challenging lighting conditions such as strong backlight or glare. Intelligent detection functions, including human and vehicle recognition, enhance monitoring accuracy. The camera supports H.265/H.264 dual-stream encoding, ONVIF/RTSP protocols, and P2P cloud access for flexible integration with NVR systems and remote monitoring via web browsers, PC client, and mobile applications. Designed with IP66 protection and lightning resistance, the WNC2016-EV is optimized for the confined, high-traffic environment of elevators.

Key Features

• 6MP Ultra HD Imaging: Captures high-resolution 3072 × 2048 video to provide detailed surveillance in small elevator spaces
• Compact Elevator-Optimized Design: Fixed turret form factor fits easily in elevator interiors without obstructing movement
• Intelligent Human & Vehicle Detection: Automatically identifies people and vehicles to reduce false alarms and focus on real security events
• Advanced Low-Light Performance: 0.01 Lux sensitivity combined with a built-in IR LED ensures clear images even in near-dark conditions
• Image Enhancement Technologies: DWDR balances strong backlight; 2D/3D-DNR reduces noise; BLC/HLC improve clarity under complex lighting
• Flexible Network Integration: Supports H.265/H.264 dual-stream, ONVIF 17.06, RTSP, P2P cloud, and multiple browser access for easy monitoring and recording
• Reliable Outdoor & Indoor Protection: IP66-rated housing with lightning protection ensures stable operation in confined and challenging environments

Key Specifications

• Image Sensor: 1/2.8″ Sony CMOS
• Max Resolution: 3072 × 2048 (6MP)
• Lens: 2.8mm fixed lens
• Night Vision: 1 IR LED, range 5–6 meters
• Power Supply: 12V DC ±10%, power consumption <8W
