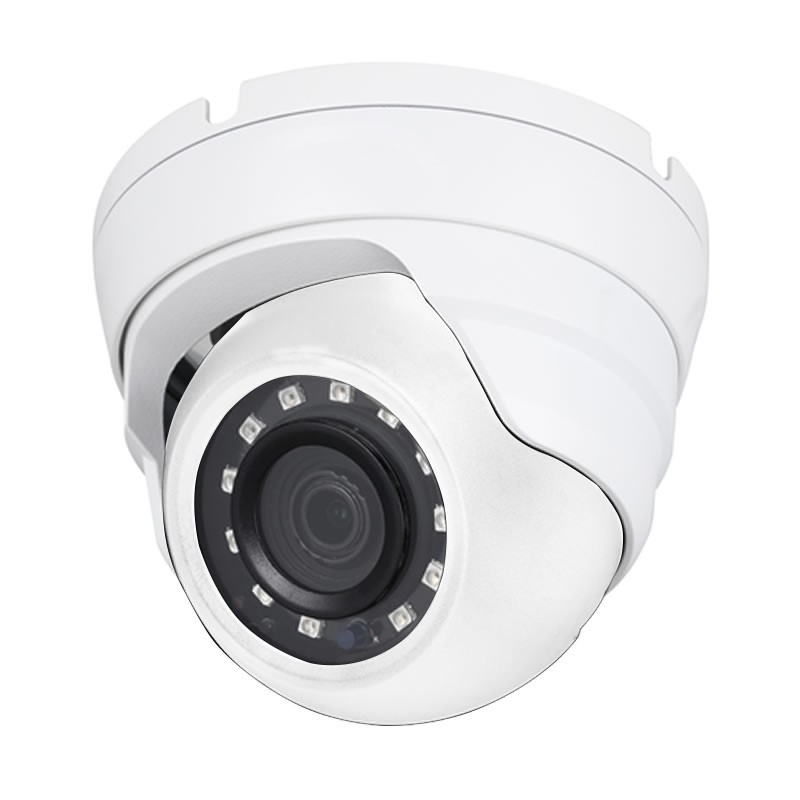

XVI-EB1203M-IR 2MP HDCVI Smart IR Fixed Eyeball Camera

Product Overview

The XVI-EB1203M-IR delivers high-definition 2MP surveillance for residential and commercial applications. Equipped with a 2.8mm fixed lens, the camera provides wide-angle coverage and optional lenses for flexible monitoring. Smart IR LEDs illuminate scenes up to 30 meters, ensuring clarity in low-light and nighttime environments. Its 120dB WDR and 2D DNR handle challenging lighting conditions effectively, balancing bright and dark areas. The camera supports HD/SD switchable output, allowing compatibility with various HDCVI systems. Built-in AGC and BLC/HLC/DWDR improve image clarity under different conditions. The IP67 aluminum housing guarantees durability against dust and water, making it suitable for harsh outdoor conditions. Multi-language OSD menus provide convenient configuration for installers.

Key Features

• High-Definition 2MP Imaging: Provides sharp 1080P video for detailed monitoring.
• Smart IR Night Vision: Automatically illuminates up to 30 meters (98 ft) in low-light environments.
• True Wide Dynamic Range: 120dB DWDR enhances visibility in scenes with strong contrast.
• HD/SD Switchable Output: Compatible with a wide range of HDCVI and hybrid systems.
• Durable Outdoor Design: IP67-rated aluminium housing ensures long-lasting performance.
• Low-Light Performance: 2D noise reduction and AGC provide clear images in dim environments.
• Flexible Lens Options: Standard 2.8mm lens with optional 3.6mm and 6mm lenses for varied coverage.

Key Specifications

• Resolution: 2 MP (1920×1080)
• Lens: 2.8mm fixed (optional 3.6mm / 6mm)
• IR Distance: Up to 30 meters (98 ft)
• WDR: 120 dB DWDR
• Protection: IP67 aluminum housing
