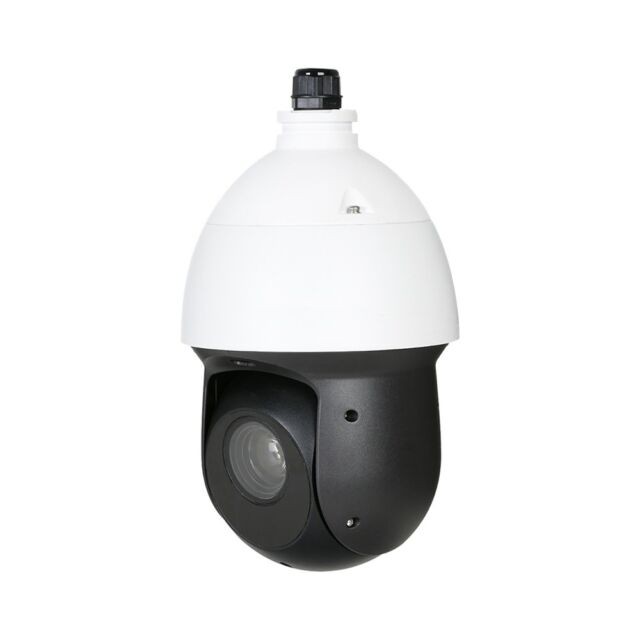

XVI-PD49225L-W 2MP 25x Starlight IR PTZ HDCVI Camera

Product Overview

The XVI-PD49225L-W is a 2MP Starlight HDCVI PTZ camera engineered for large-area and critical surveillance applications. Its 25x optical zoom combined with auto, semi-auto, and manual focus control provides precise monitoring over long distances. The camera supports 1080P at 25/30fps and 720P at up to 60fps, ensuring smooth, high-definition video. With STARVIS™ CMOS technology, it captures vibrant, low-noise images in low-light conditions, while 120 dB WDR and 3D DNR maintain clarity in environments with extreme brightness differences. Smart IR illuminates up to 100 meters, automatically adjusting for optimal exposure. PTZ functions include 360° endless pan, tilt from -15° to +90°, and auto flip 180°, enabling full situational coverage. The unit features privacy masking, preset tours, and pattern scanning for intelligent monitoring. Housed in a robust IP66-rated case with TVS 6000V lightning protection, it is suitable for challenging outdoor environments.

Key Features

• Starlight Imaging: Ultra-low-light capture for night surveillance without loss of detail.
• High-Speed PTZ: 25x optical zoom with pan/tilt speeds up to 240°/s for rapid target tracking.
• True WDR & DNR: 120 dB wide dynamic range with 2D/3D noise reduction for clear images under harsh lighting.
• IR Night Vision: Up to 100 meters with automatic illuminator control.
• Integrated Audio & Alarm: Built-in audio input and alarm output enhance comprehensive monitoring.
• Advanced Preset & Tour Modes: 300 presets, pattern scanning, and auto flip for full area coverage.
• Durable Outdoor Design: IP66 weatherproof, surge-protected, and capable of operating from –40°C to +70°C.

Key Specifications

• Resolution: 2MP (1920×1080)
• Lens & Zoom: 4.8–120 mm, 25x optical zoom
• IR Distance: Up to 100 m (328 ft)
• Power Supply: DC12V/3A ±10%, Max 23.2W (IR + PTZ active)
• PTZ Range: Pan 0–360°, Tilt –15° to +90°, Auto Flip 180°
