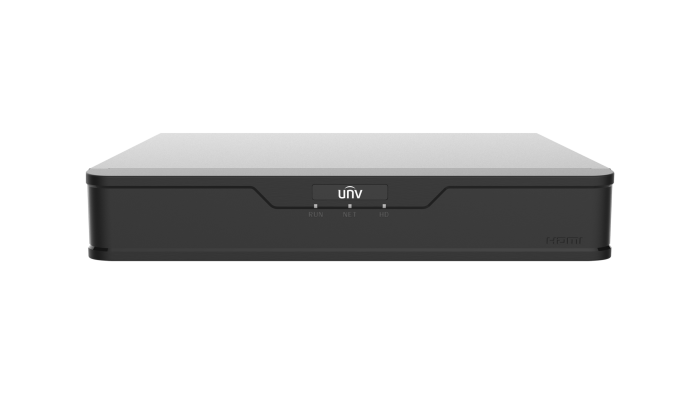

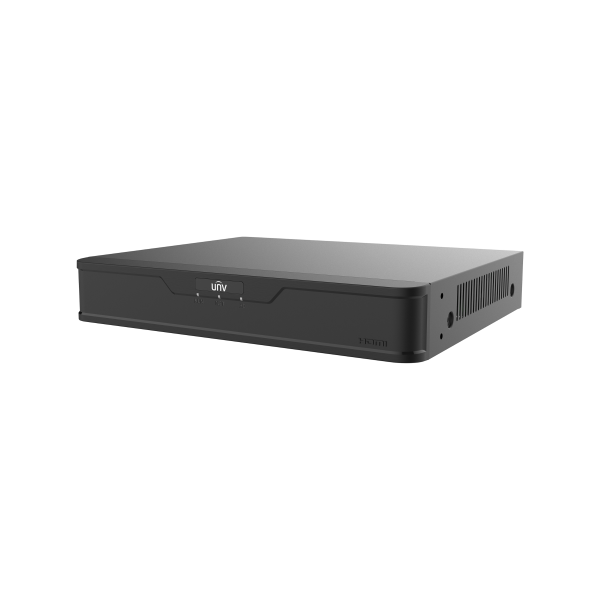

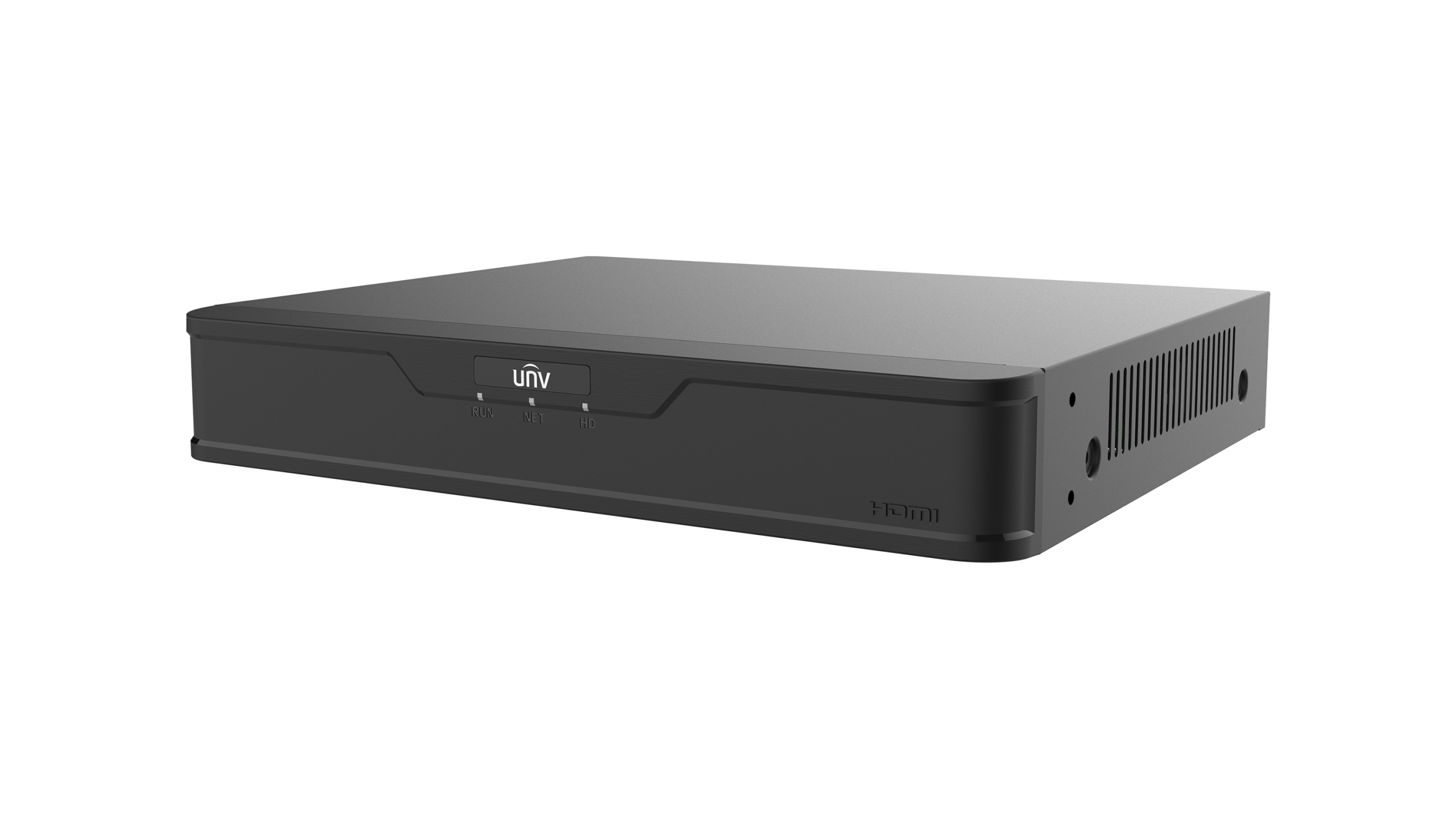

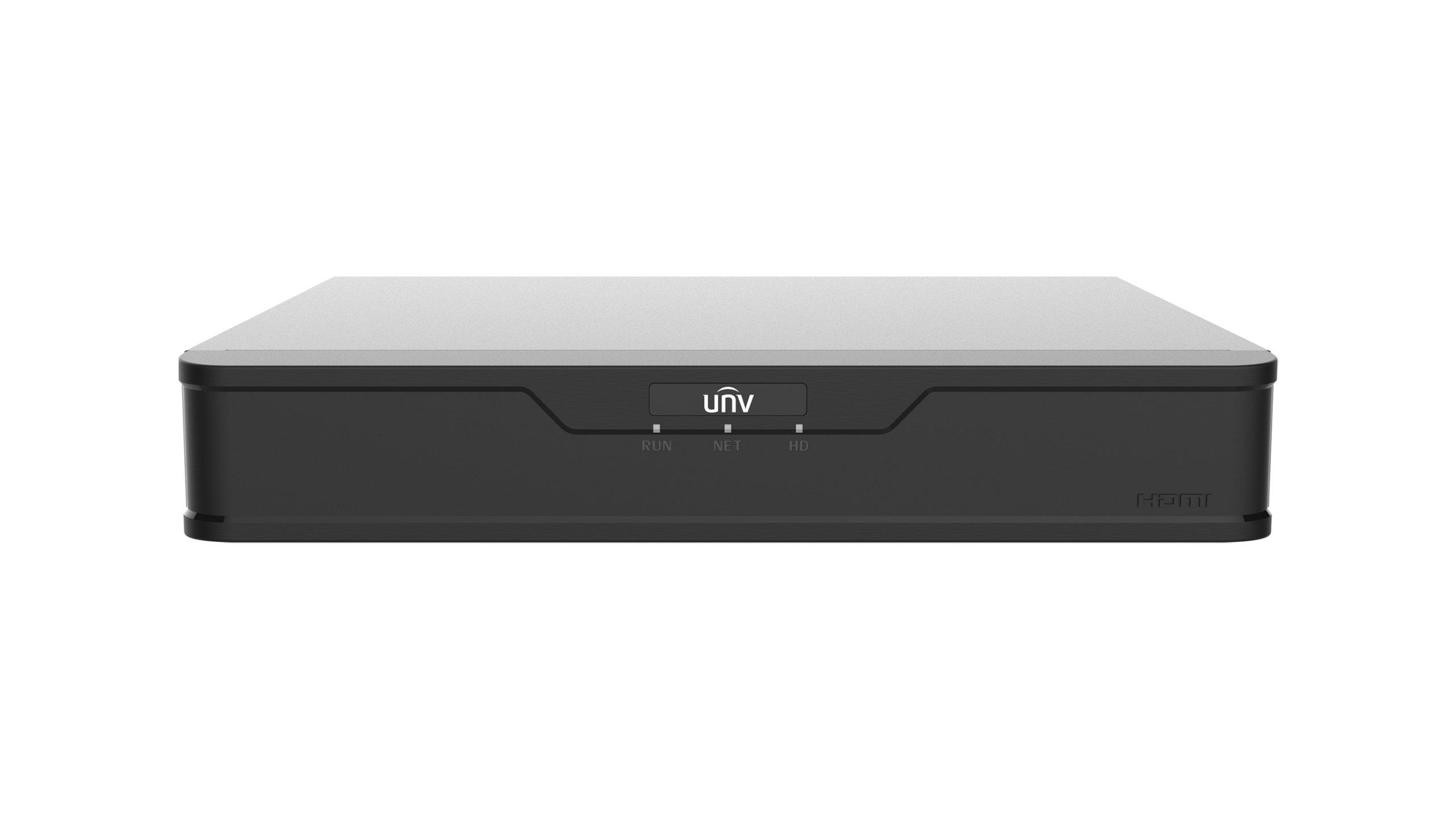

XVR301-16G3 16-Ch 1U Digital Video Recorder
16-Ch 1U Digital Video Recorder
Description
- Support H.265/H.264 video formats
- Support audio over coaxial cable (only for TVI cameras)
- Control the dual-light of UNV analog cameras under TVI
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 4/8/16-channel BNC input
- Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
Additional information
| Channel | |
|---|---|
| HDD Support | |
| PoE |
N/A |
| IP Video Input |
8-ch |
| Analog Video Input |
16-ch ,BNC |
| Max IP Video Input |
16-ch |
| HDMI Output |
HDMI: 1920 × 1080/60 Hz ,1920 × 1080/50 Hz ,1600 × 1200/60 Hz ,1280 × 1024/60 Hz ,1280 × 720/60 Hz ,1024 × 768/60 Hz |
| VGA Output |
VGA: 1920 × 1080/60 Hz ,1920 × 1080/50 Hz ,1600 × 1200/60 Hz ,1280 × 1024/60 Hz ,1280 × 720/60 Hz ,1024 × 768/60 Hz |
| Live View Display |
HDMI/VGA: 1/4/6/8/9/25 |
| Recording Resolution |
5MP Lite/1080P Lite/720P/D1 |
| Decoding Capability |
Analog: 8 x 5MP Lite@6 ,8 x 1080P Lite@12 IP: 1 x 8MP@30 ,2 x 4MP@30 ,4 x 1080P@30 |
| Two-way Audio |
1-ch ,RCA (Using the audio input and output) |
| Incoming Bandwidth |
40Mbps (up to 56Mbps after all analog channel conversion) |
| Outgoing Bandwidth |
64Mbps |
| Capacity |
Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| USB |
Rear panel: 2 × USB2.0 |
| Power Supply |
DC 12 V/2 A |
| Power Consumption (without HDD) |
≤ 10W |
| Weight (without HDD) |
≤1.1 Kg ( 2.42lb ) |
| Dimensions |
260mm ×226mm× 47mm (10.2" × 8.9"×1.8") |
| Certification |
CE; FCC; UL; RoHS; WEEE |
| CE |
EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC |
Part15 Subpart B |
