UNV

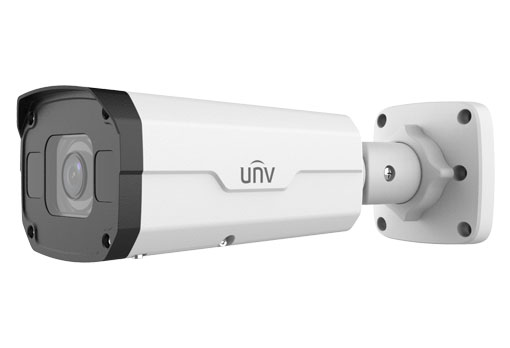

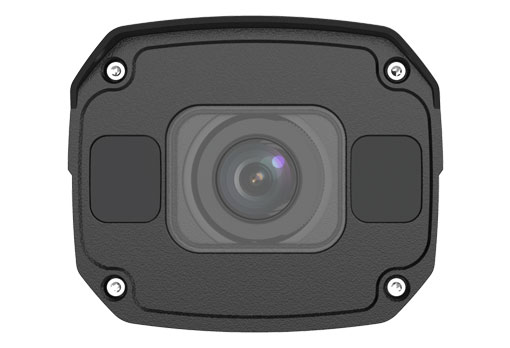

IPC2324SE-ADZK-WL-I0 4MP HD Intelligent Dual Illuminators ColorHunter VF Bullet Network Camera
SKU:
IPC2324SE-ADZK-WL-I0
| Sensor | 1/1.8″ CMOS |
|---|---|
| Camera Resolutions | 4 MP |
| Camera Style | Bullet |
| Lens Size | 2.8-12mm |
| Lens Type | Motorized Lens |
| WDR | 120 dB |
| Min. Illumination | Color: 0.0005 Lux (F1.2, AGC ON) |
| Supplemental Light | Dual light |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | >56 dB |
| Iris | F1.2 |
| Illumination Distance (IR) | 30 m (98.4 ft) |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Digital Noise Reduction | 2D/3D DNR |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Audio | Built-in Microphone |
| Interface Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 11.5 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 245 mm × 86 mm × 85 mm (9.6″ × 3.4″ × 3.3″ ) (L × W × H) |
| Weight | 0.9 kg (1.98 lb) |
| Material | Metal |
| Surge Protection | 6 KV |
| Protection | IP67 |
IPC2324SR5-ADZK-G 4MP HD IR Bullet Network Camera
SKU:
IPC2324SR5-ADZK-G
| Image Sensor | 1/3″ Progressive Scan CMOS |
|---|---|
| Lens Size | 2.8-12mm |
| Adjustment angle | Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotate: 0° ~ 360° |
| Shutter Speed | 1s to 1/100000s |
| Minimum Illumination | AGC ON); 0 lux with IR, Colour:0.003 lux (F1.6 |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital Noise Reduction | 2D/3D DNR |
| IR Range | Up to 50 m |
| Wavelength | 850nm |
| WDR | 120 dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Edge Storage | Micro SD, up to 128 GB |
| Network Storage | ANR, NAS(NFS) |
| Certifications | CE: EN 60950-1, FCC: FCC Part 15, UL: UL60950-1 |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 8.5W |
| Dimensions | 206 × 74 × 74mm (8.1” × 2.9” × 2.9”) |
| Net Weight | 0.55kg (1.2lb) |
| Material | metal |
| Ingress Protection | IP67 |
IPC2325SB-DZK-I0 5MP HD LightHunter IR VF Bullet Network Camera
SKU:
IPC2325SB-DZK-I0
| Image Sensor | 1/2.7″ Progressive Scan CMOS, 5.0 megapixel |
|---|---|
| Lens Size | 2.7-13.5mm |
| Adjustment angle | Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotate: 0° ~ 360° |
| Shutter Speed | 1s to 1/100000s |
| Minimum Illumination | Colour: 0.002Lux (F1.2, AGC ON); 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 50 m |
| Wavelength | 850nm |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Digital Noise Reduction | 2D/3D DNR |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR |
| Certifications | CE: CE: EN 60950-1, FCC: FCC Part 15, UL: UL60950-1 |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 8.0 W |
| Dimensions (L × W × H) | 245 × 86 × 72mm (9.6” × 3.4” × 2.8”) |
| Net Weight | 0.92kg (2.0lb) |
| Material | Metal |
| Surge Protection | 6KV |
| Protection | IK10, IP67 |
IPC2325SR5-ADZK-G 5MP HD IR Bullet Network Camera
SKU:
IPC2325SR5-ADZK-G
| Image Sensor | 1/2.7″ Progressive Scan CMOS, 5.0 megapixel |
|---|---|
| Lens Size | 2.8-12mm |
| Adjustment angle | Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotate: 0° ~ 360° |
| Shutter Speed | 1s to 1/100000s |
| Minimum Illumination | AGC ON); 0 lux with IR, Colour:0.003 lux (F1.6 |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 50 m |
| Wavelength | 850nm |
| WDR | 120 dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Digital Noise Reduction | 2D/3D DNR |
| Edge Storage | Micro SD, up to 128 GB |
| Network Storage | ANR, NAS(NFS) |
| Interface Network | 10M/100M Base-TX Ethernet |
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 8.5W |
| Dimension | 206 × 74 × 74mm (8.1” × 2.9” × 2.9”) |
| Net Weight | 0.55kg (1.2lb) |
| Material | metal |
| Surge Protection | 6KV |
| Protection | IP67 |
| Camera Style | Bullet |
IPC2328SB-DZK-I0 8MP HD LightHunter IR VF Bullet Network Camera
SKU:
IPC2328SB-DZK-I0
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
|---|---|
| Lens Size | 2.8-12mm |
| Camera Style | Bullet |
| Adjustment angle | Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotate: 0° ~ 360° |
| Shutter Speed | 1s to 1/100000s |
| Minimum Illumination | AGC ON); 0 lux with IR, Colour:0.003 lux (F1.6 |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital Noise Reduction | 2D/3D DNR |
| IR Range | Up to 50 m |
| Wavelength | 850nm |
| WDR | 120 dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Camera Resolutions | 8 MP |
| Edge Storage | Micro SD，up to 128GB |
| Network Storage | ANR |
| Certifications | CE: EN 60950-1, FCC: FCC Part 15, UL: UL60950-1 |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 10.5W |
| Dimensions | 245 × 86 × 72mm (9.6” × 3.4” × 2.8”) |
| Net Weight | 0.92kg (2.03lb) |
| Material | Metal |
| Surge Protection | 6KV |
| Protection | IK10, IP67 |
IPC2A14LP-ADF40KC-4G-US 4MP ColorHunter 4G Fixed Dual-light Bullet Network Camera
SKU:
IPC2A14LP-ADF40KC-4G-US
| Sensor | 1/3.0″ CMOS |
|---|---|
| Min. Illumination | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter Speed | Auto/Manual, 1 ~ 1/100001s |
| S/N | >52 dB |
| WDR | 120 dB |
| Focal Length | 4.0 mm |
| Iris Type | Fixed Lens |
| DORI Distance (Lens) | 4 mm |
| Supplemental Light | Dual light |
| Camera Resolutions | 4 MP |
| Illumination Distance (Warm Light) | 30 m (98.4 ft) |
| Illumination Distance (IR) | 50 m (164.0 ft) |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Camera Style | Bullet |
| Video Bit Rate | 128 Kbps to 2048 Kbps |
| Digital Noise Reduction | 2D/3D DNR |
| Edge Storage | Micro SD, up to 512GB |
| Protection | IP67 |
| Power | DC 12 V±25% |
| Power Consumption | Max. 6.8 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 169 mm × 113 mm × 96 mm (6.7″ × 4.4″ × 3.8″) (L × W × H) |
| Weight | 0.47 kg (1.04 lb) |
| Material | Graphene + Metal |
| Surge Protection | 4 KV |
IPC2A14LP-ADF60KC-4G-US 4MP ColorHunter 4G Fixed Dual-light Bullet Network Camera
SKU:
IPC2A14LP-ADF60KC-4G-US
| Sensor | 1/3.0″ CMOS |
|---|---|
| Min. Illumination | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter Speed | Auto/Manual, 1 ~ 1/100001s |
| S/N | >52 dB |
| WDR | 120 dB |
| Focal Length | 6.0 mm |
| Iris Type | Fixed Lens |
| DORI Distance (Lens) | 6 mm |
| Supplemental Light | Dual light |
| Camera Resolutions | 4 MP |
| Illumination Distance (Warm Light) | 30 m (98.4 ft) |
| Camera Style | Bullet |
| Illumination Distance (IR) | 50 m (164.0 ft) |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Video Bit Rate | 128 Kbps to 2048 Kbps |
| Digital Noise Reduction | 2D/3D DNR |
| Edge Storage | Micro SD, up to 512GB |
| Protection | IP67 |
| Power | DC 12 V±25% |
| Power Consumption | Max. 6.8 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 169 mm × 113 mm × 96 mm (6.7″ × 4.4″ × 3.8″) (L × W × H) |
| Weight | 0.47 kg (1.04 lb) |
| Material | Graphene + Metal |
| Surge Protection | 4 KV |
IPC2B14SE-ADF28K-WP-I1 4MP ColorHunter with Wise-ISP Fixed Warm Light Bullet Network Camera
SKU:
IPC2B14SE-ADF28K-WP-I1
| Lens Size | 2.8mm |
|---|---|
| Lens Type | Fixed Lens |
| WDR | 130 dB |
| Protection | IK10, IP67 |
| Camera Resolutions | 4 MP |
| Sensor | 1/1.8″ CMOS |
| Min. Illumination | Colour: 0.0003 lux ( F1.0, AGC ON) |
| Supplemental Light | Warm light |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| S/N | >56 dB |
| Iris | F1.0 |
| Illumination Distance (Warm Light) | 40 m (131.2 ft) |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Digital Noise Reduction | 2D/3D DNR |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Audio | Built-in Microphone |
| Interface Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 4.5W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 265.2 × 95.2 × 82.9mm (10.4″ × 3.7″ × 3.3″) (L x W x H) |
| Weight | 0.89kg (1.96lb) |
| Material | Metal + Plastic |
| Surge Protection | 4 KV |
| Camera Style | Bullet |
IPC2B14SE-ADF40K-WP-I1 4MP WDR OwlView Plus Bullet Network Camera
SKU:
IPC2B14SE-ADF40K-WP-I1
| Sensor | 1/1.8″ CMOS |
|---|---|
| Camera Resolutions | 4 MP |
| Camera Style | Bullet |
| Lens Size | 4mm |
| Lens Type | Fixed Lens |
| WDR | 130 dB |
| Min. Illumination | Colour: 0.0003 lux ( F1.0, AGC ON) |
| Supplemental Light | Warm light |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| S/N | >56 dB |
| Iris | F1.0 |
| Illumination Distance (Warm Light) | 40 m (131.2 ft) |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Digital Noise Reduction | 2D/3D DNR |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Audio | Built-in Microphone |
| Interface Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 4.5W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 265.2 × 95.2 × 82.9mm (10.4″ × 3.7″ × 3.3″) (L x W x H) |
| Weight | 0.89kg (1.96lb) |
| Material | Metal + Plastic |
| Surge Protection | 4 KV |
| Protection | IK10, IP67 |
IPC2B14SS-ADF28KMC-I1 4MP Tri-Guard Fixed Dual-light Bullet Network Camera
SKU:
IPC2B14SS-ADF28KMC-I1
| Lens Size | 2.8mm |
|---|---|
| Lens Type | Fixed Lens |
| WDR | 130 dB |
| Protection | IP67 |
| Camera Resolutions | 4 MP |
| Sensor | 1/2.7″ CMOS |
| Min. Illumination | Color: 0.001 Lux ( F1.0, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | >56 dB |
| Iris | F1.6 |
| Illumination Distance (IR) | IR 40 m (131.2 ft), warm light 40 m (131.2 ft) |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Digital Noise Reduction | 2D/3D DNR |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Audio | Built-in Microphone, Built-in Speaker |
| Interface Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 9.5 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 269 mm × 96 mm × 82 mm (10.6″ × 3.8″ × 3.2″) (L × W × H) |
| Weight | 0.95 kg (2.09 lb) |
| Material | Metal + Plastic |
| Surge Protection | 4 KV |
| Camera Style | Bullet |
IPC2B15SS-ADF28K-I1 5MP LightHunter Fixed IR Bullet Network Camera
SKU:
IPC2B15SS-ADF28K-I1
| Sensor | 1/2.7″ CMOS |
|---|---|
| Camera Resolutions | 5 MP |
| Camera Style | Bullet |
| Lens Size | 2.8mm |
| Lens Type | Fixed Lens |
| WDR | 130 dB |
| Min. Illumination | Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | >56 dB |
| Iris | F1.6 |
| Illumination Distance (IR) | 80 m (262.5 ft) |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Digital Noise Reduction | 2D/3D DNR |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Audio | Built-in Microphone |
| Interface Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 10.0 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 269 mm × 96 mm × 82 mm (10.6″ × 3.8″ × 3.2″) (L × W × H) |
| Weight | 0.84 kg (1.85 lb) |
| Material | Metal + Plastic |
| Surge Protection | 4 KV |
| Protection | IP67 |
IPC2B15SS-ADF28KMC-I1 5MP Tri-Guard Fixed Dual-light Bullet Network Camera
SKU:
IPC2B15SS-ADF28KMC-I1
| Lens Size | 2.8mm |
|---|---|
| Lens Type | Fixed Lens |
| WDR | 130 dB |
| Protection | IP67 |
| Camera Resolutions | 5 MP |
| Sensor | 1/2.7″ CMOS |
| Min. Illumination | Color: 0.001 Lux ( F1.0, AGC ON), 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | >56 dB |
| Iris | F1.0 |
| Illumination Distance (IR) | IR 40 m (131.2 ft), warm light 40 m (131.2 ft) |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Digital Noise Reduction | 2D/3D DNR |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Audio | Built-in Microphone, Built-in Speaker |
| Interface Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 10.0 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 269 mm × 96 mm × 82 mm (10.6″ × 3.8″ × 3.2″) (L × W × H) |
| Weight | 0.97 kg (2.14 lb) |
| Material | Metal + Plastic |
| Surge Protection | 4 KV |
| Camera Style | Bullet |
