NETWORK PTZS CAMERA

Product Overview

NP3A4-LS combines high-resolution imaging, AI-driven analytics, and active deterrence features to create an intelligent surveillance solution for modern security environments. Equipped with a 1/1.8″ progressive scan CMOS sensor, the camera captures sharp 4 MP video at up to 2560 × 1440 resolution and 30 fps. Its ultra-large F1.0 aperture and extremely low illumination capability enable full-color imaging even under very dim lighting conditions. With built-in white light illumination reaching up to 30 meters, the camera maintains clear color footage throughout the night. Advanced deep learning algorithms focus on human and vehicle classification, significantly reducing false alarms. The system also supports multi-face detection and automatic best-shot face capture, with up to five faces captured simultaneously. A built-in microphone and speaker allow audio monitoring and communication, while the linked audible and visual alarm can actively warn intruders. Enhanced image technologies such as 120 dB WDR, 3D DNR, HLC, and demist ensure consistent image clarity in complex environments.

Key Features

• 4 MP High-Definition Imaging: Captures detailed surveillance footage at up to 2560 × 1440 resolution using a 1/1.8″ progressive scan CMOS sensor.
• Ultra-Low Light Color Performance: Large F1.0 aperture and high-sensitivity sensor enable color imaging at only 0.0005 Lux.
• 24/7 Full-Color Monitoring: Integrated white light illumination provides continuous color video with up to 30 m coverage.
• Deep Learning Target Analytics: AI-based algorithms accurately classify human and vehicle targets to improve detection efficiency.
• Intelligent Face Capture: Automatically selects the best face snapshot and supports simultaneous capture of up to five faces.
• Active Audio-Visual Deterrence: Built-in microphone, speaker, and linked flashing light alarm provide real-time warnings and communication.
• Advanced Image Optimization: 120 dB WDR, 3D DNR, HLC, and demist technologies enhance clarity in challenging lighting conditions.

Key Specifications

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Maximum Resolution: 2560 × 1440 (4 MP) @ 30 fps
• Minimum Illumination: 0.0005 Lux @ F1.0 (Color)
• White Light Distance: Up to 30 m
• Protection Rating: IP66

Product Overview

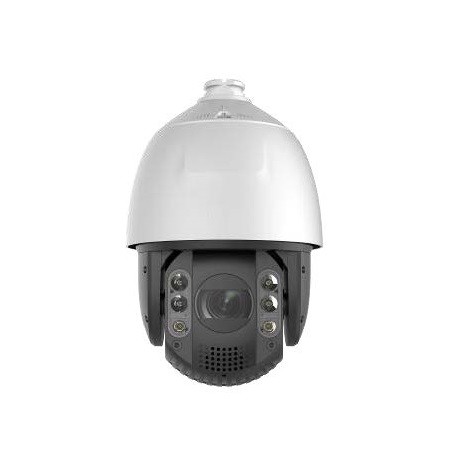

NP514A-IR/36X delivers professional-grade monitoring with high-definition imaging and intelligent PTZ control. Equipped with a 1/1.9″ progressive scan CMOS sensor, the camera achieves 4 MP resolution at up to 2560 × 1440 @ 30 fps. Exceptional low-light performance ensures clear color or B/W footage down to 0.005 Lux (color) and 0.0005 Lux (B/W), complemented by Smart IR illumination reaching 200 m. The camera’s 36× optical zoom and 16× digital zoom offer precise details for distant targets. Built-in AI-driven smart detection supports intrusion, line crossing, region entrance/exit, and face detection. Auto-tracking and event-triggered tracking enable proactive monitoring, while audio-visual alarms and two-way audio provide real-time deterrence. Additional image enhancements include DWDR, 3D DNR, HLC, and defog support. Flexible integration is enabled via ONVIF, CGI, and third-party platform compatibility, making it ideal for large-scale security installations.

Key Features

• High-Definition 4 MP Imaging: Captures sharp details at 2560 × 1440 resolution with a 1/1.9″ sensor.
• Ultra-Long-Range Monitoring: Smart IR ensures visibility up to 200 m in complete darkness.
• 36× Optical Zoom & 16× Digital Zoom: Provides granular control for monitoring expansive areas.
• AI-Powered Smart Detection: Supports intrusion detection, line crossing, region entrance/exit, and face detection.
• Auto Tracking & Event Tracking: Enables precise manual or automatic following of moving targets.
• Enhanced Image Clarity: DWDR, 3D DNR, HLC, and defog maintain consistent video quality.
• Audio-Visual Alarm & Two-Way Communication: Built-in mic, speaker, and alarm lights for real-time intervention.

Key Specifications

• 1/1.9" progressive scan CMOS
• Up to 2560 × 1440 resolution
• Min. Illumination: Color: 0.005 Lux @(F1.5, AGC ON)B/W: 0.0005 Lux @(F1.5, AGC ON)0 Lux with IR
• 36× optical zoom, 16× digital zoom
• Digital WDR, 3D DNR, HLC, Smart IR
• 24 VAC & Hi-PoE
• Up to 200 m IR distance
• Support H.265+/H.265 video compression
• Support rapid focusNP514A-IR/36X4MP 36 × Network IR Speed Dome

Product Overview

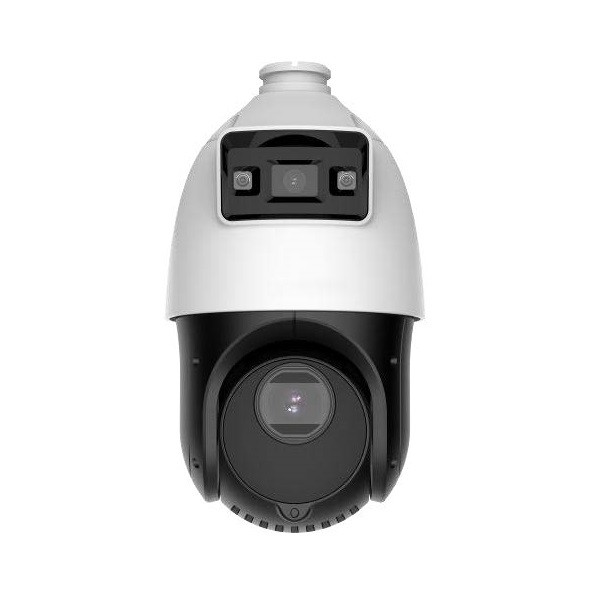

NPB124-IR/25X TandemVu combines high-resolution surveillance with intelligent analytics for demanding security applications. Equipped with dual channels—bullet and PTZ—each offering 2560 × 1440 resolution, it captures both large areas and fine details simultaneously. Powered by DarkFighter low-light technology and ColorVu, the camera maintains clear color images at extremely low illumination levels. Advanced AI supports classification of humans and vehicles, ensuring intelligent monitoring. Its 25× optical zoom and 16× digital zoom enable detailed tracking across expansive areas. Image quality is enhanced through 120 dB WDR, HLC/BLC, 3D DNR, defog, regional exposure, and regional focus. Dual illumination with 100 m IR and 30 m white light ensures consistent night-time visibility. Designed for outdoor resilience, the IP66-rated dome can operate with 12V DC or PoE+ power.

Key Features

• Dual Channel Imaging: Bullet and PTZ channels capture both broad coverage and fine detail.
• 25× Optical & 16× Digital Zoom: Flexible zoom for close-up monitoring of distant targets.
• Enhanced Low-Light Performance: DarkFighter and ColorVu technologies deliver vivid night imaging.
• AI Analytics: Human and vehicle detection with target classification.
• Advanced Image Processing: WDR, HLC/BLC, 3D DNR, defog, and regional focus.
• Night-Time Illumination: 100 m IR and 30 m white light coverage.
• Robust Outdoor Design: IP66 protection for reliable operation in harsh environments.

Key Specifications

• Image Sensor: Bullet: 1/3″ CMOS; PTZ: 1/2.8″ Progressive Scan CMOS
• Maximum Resolution: 2560 × 1440 (4 MP)
• Minimum Illumination: Bullet: 0.0005 Lux with light; PTZ: Color: 0.005 Lux, B/W: 0.001 Lux
• Zoom: 25× optical, 16× digital
• Power Supply: 12V DC or PoE+, Max. 24 W
