AY-H6280B+TRO 02S-MIFARE DESFIRE EV1 SMAR EACH CARD READER
SKU:
AY-H6280B+TRO
- Contactless smart card reader (13.56 MHz)
- Meets ISO14443 Type A Standard
- AES 128-bit encryption during transmission
- Uses NXP SAM AV2 for identity and communication cryptography
- Supports OSDP V2 including secure channel using AES 128 bit encryption for improved security
- Reads O2S ID data from O2S credentials
- Reads CSN of non-O2S credentials
- Output formats:
- Wiegand (per format on O2S credential)
- OSDP via RS-485 (selected models)
- RGB multicolor light indicator
- Blue backlit tact switch keypad
- IP68 water and dust resistant for AY-x6280 pigtail models
- IP65 water and dust resistant for AY-x6280 terminal block models and AY-x6380 models
- IK08 vandal resistant for all AY-x6x80 models
- Optical back tamper sensor
- Two LED control and buzzer control inputs
- Pigtail or terminal block connectivity
- Antimicrobial technology reduces level of microbes on reader by up to 99.99%.

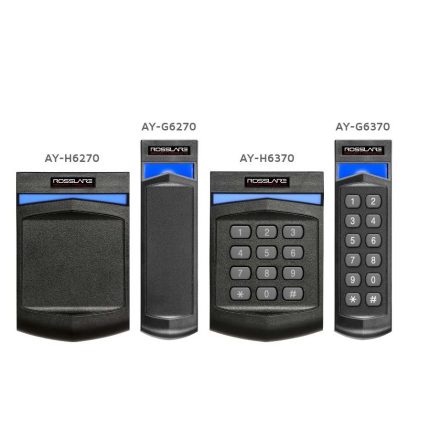

AY-H6370B+P00 O2S MIFARE PLUS X/S SMARTCARD READER AND 3X4 MATRIX KEYPAD W/18″ PIGTAIL
SKU:
AY-H6370B+P00
- Contactless smart card reader (13.56 MHz)
- Meets ISO14443 Type A Standard
- AES 128-bit encryption during transmission
- Reads O2S ID data from O2S credentials
- Reads CSN of non-O2S credentials
- Output formats:
- Wiegand (per format on O2S credential)
- OSDP via RS-485 (selected models)
- RGB multicolor light indicator
- Blue backlit tact switch keypad
- IP68 water and dust resistant for AY-x6270 pigtail models
- IP65 water and dust resistant for AY-x6270 terminal block models and AY-x6370 models
- IK08 vandal resistant for all AY-x6x70 models
- Optical back tamper sensor
- Two LED control and buzzer control inputs
- Pigtail or terminal block connectivity
- Antimicrobial technology reduces level of microbes on reader by up to 99.99%.

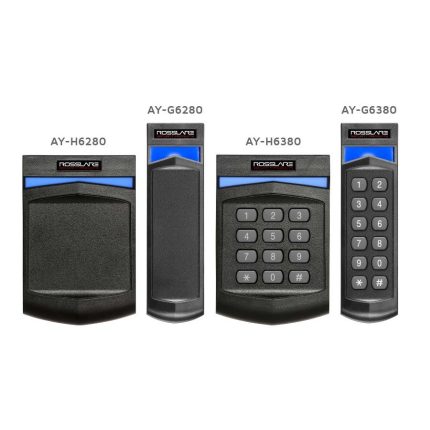

AY-H6380B+P00 O2S-MIFARE DESFire EV1 Smart Card Reader
SKU:
AY-H6380B+P00
- Contactless smart card reader (13.56 MHz)
- Meets ISO14443 Type A Standard
- AES 128-bit encryption during transmission
- Uses NXP SAM AV2 for identity and communication cryptography
- Supports OSDP V2 including secure channel using AES 128 bit encryption for improved security
- Reads O2S ID data from O2S credentials
- Reads CSN of non-O2S credentials
- Output formats:
- Wiegand (per format on O2S credential)
- OSDP via RS-485 (selected models)
- RGB multicolor light indicator
- Blue backlit tact switch keypad
- IP68 water and dust resistant for AY-x6280 pigtail models
- IP65 water and dust resistant for AY-x6280 terminal block models and AY-x6380 models
- IK08 vandal resistant for all AY-x6x80 models
- Optical back tamper sensor
- Two LED control and buzzer control inputs
- Pigtail or terminal block connectivity
- Antimicrobial technology reduces level of microbes on reader by up to 99.99%.

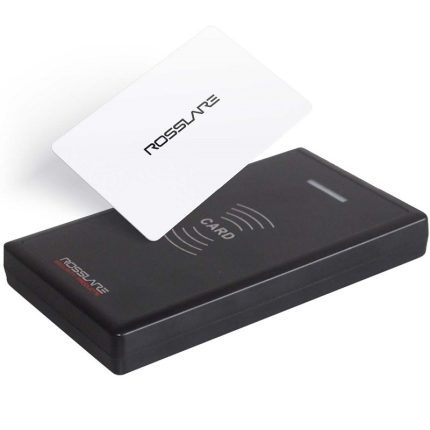

DR-6280 MIFARE ENROLLMENT READER
SKU:
DR-6280
- Contactless Smart Card Reader (13.56 MHz)
- Meets ISO14443 Type A Standard
- Reads O2S ID data from an O2S credential
- Uses NXP SAM AV2 for identity and communication cryptography
- AES 128-bit encryption during the transmission of an ID from a MIFARE DESFire EV1 credential
- Reads CSN of non-O2S MIFARE credentials
- Bi-Colored LED
- Supports USB 2.0 Standard (compatible with USB 1.1), meets the EIA Standard
