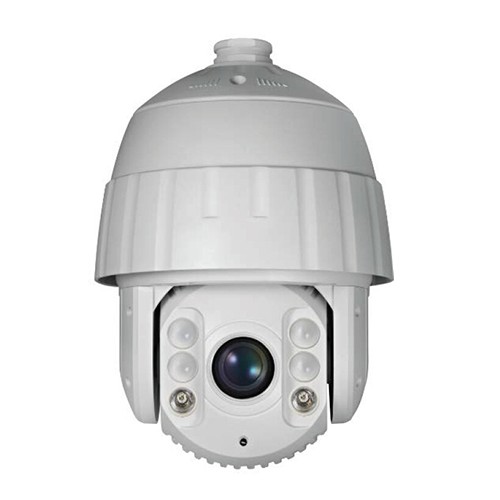

AP312-IR/25X 2 MP 25x IR Turbo 7-Inch Speed Dome

2 MP IR Turbo 7-Inch Speed Dome

2 MP 7-inch speed dome delivering sharp 1080P video for large-scale monitoring.
Powerful 25× optical zoom and 16× digital zoom for detailed surveillance at long distances.
Smart IR system provides night visibility up to 150 meters.
120 dB true WDR ensures balanced imaging in scenes with extreme light contrast.
3D intelligent positioning allows fast and precise PTZ control.
Multiple switchable outputs (TVI/AHD/CVI/CVBS) for versatile system integration.

Description

Product Overview

The AP312-IR/25X is a high-performance 7-inch IR speed dome designed for demanding surveillance applications where long-range monitoring and precision control are critical. Featuring a 1/2.8″ progressive scan CMOS sensor, the camera delivers 1920 × 1080 full HD video with excellent clarity. Its 25× optical zoom lens, combined with 16× digital zoom, provides detailed observation across expansive areas, while the smart IR system ensures visibility up to 150 meters even in complete darkness. True Day/Night operation with IR cut filter allows seamless adaptation to changing lighting conditions, complemented by 120 dB WDR for balanced exposure in high-contrast scenes. The camera supports 3D intelligent positioning, proportional zoom, and customizable patrol and pattern functions, giving operators complete control over tracking and surveillance coverage. With IP66 protection, automatic IR intensity adjustment, and versatile mounting options, this dome is suitable for both indoor and outdoor deployments. Advanced features such as EIS, HLC, BLC, and RS485 support provide robust performance for professional security environments.

Key Features

Long-Range Zooming: 25× optical and 16× digital zoom delivers detailed imagery over extended distances.
High-Performance Night Vision: Smart IR technology ensures clear images up to 150 meters in low-light conditions.
True Day/Night with IR Cut Filter: Automatic adaptation to varying light for consistent video quality.
Wide Dynamic Range: 120 dB WDR maintains image detail in scenes with extreme light contrast.
3D Intelligent Positioning: Fast and accurate PTZ tracking with preset, patrol, and pattern options.
Flexible Output Options: Switchable TVI, AHD, CVI, and CVBS outputs for easy integration.
Enhanced Imaging Control: Proportional zoom, EIS, BLC, and HLC optimize image quality in diverse conditions.

Key Specifications

Resolution: 1920 × 1080 (Full HD)
Optical/Digital Zoom: 25× optical, 16× digital
IR Distance: Up to 150 meters with auto-adjusted intensity
Pan/Tilt Range: 360° endless pan / -15° to 90° tilt with auto flip
Protection: IP66 outdoor standard with surge and lightning protection

Additional information

Image Sensor	1/2.8" progressive scan CMOS
Camera Style	Dome
AGC	AUTO/MANUAL
Aperture range	F 1.6 to F 3.5
BLC	Yes
Day & Night	IR cut filter
Digital Zoom	16×
Digital Noise Reduction	3D DNR
Focal Length	4.8 mm to 120 mm , 25× Optical
Focus Control	Auto/Semiauto/Manual
Frame Rate	50Hz: 25fps @(1920 × 1080) 60Hz: 30fps @(1920 × 1080)
IR Distance	Up to 150 m
IR Intensity	Automatically adjusted depending on the zoom ratio
Min. Illumination	Color: 0.005 Lux @(F1.6 , AGC ON) B/W: 0.001 Lux @(F1.6 , AGC ON) 0 lux with IR
Min. working distance	10 mm to 1500 mm (wide to tele)
Mount Type	Various mounting modes optional
Number of preset	256
RS485	Half-duplex mode Self-adaptive HIKVISION , Pelco-P , Pelco-D protocol
Scheduled Task	Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Shutter Time	PAL: 1/1 s to 1/10 , 000 s NTSC: 1/1 s to 1/10 , 000 s
Video Output	Switchable TVI/AHD/CVI/CVBS video output , (NTSC or PAL composite , BNC)
WDR	≥ 120 dB
Weight	4.5 kg (9.92 lb.)
White Balance	AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
Power Supply	24 VAC Max. 40 W (IR: 14 W)
Dimensions	Ø 220 mm × 353.4 mm (Ø 8.66" ×13.91")
Protection	IP66
