AC306-OD 5 MP Ultra-Low Light EXIR Dome Camera
SKU:
AC306-OD 3.6mm
Product Overview
AC306-OD combines high-resolution 5 MP imaging with advanced low-light performance for professional security applications. The fixed 3.6 mm lens captures precise detail with a maximum resolution of 2560 × 1944. True Day/Night capability with ICR ensures consistent imaging under varying lighting conditions. EXIR and Smart IR technologies provide balanced illumination, extending night vision up to 20 m. Integrated digital noise reduction (DNR) and OSD menu controls enable fine-tuning of image quality. Up the Coax HIKVISION-C simplifies HD analog system setup and communication. The dome design allows flexible angle adjustment with pan, tilt, and rotation capabilities. Built from robust metal, the IP67 and IK10-rated housing ensures dependable outdoor performance and impact resistance.Key Features
- Ultra-Low Light Sensitivity: Color: 0.008 Lux @ F1.2, 0 Lux with IR
- EXIR Night Vision: Up to 20 m with Smart IR for balanced illumination
- True Day/Night Imaging: ICR provides clear visibility in all lighting
- Fixed Lens Precision: 3.6 mm lens for detailed coverage
- Advanced Image Control: DNR and OSD menu for optimized image settings
- HD Analog Output: Supports Up the Coax HIKVISION-C protocol
- Rugged Protection: IP67 and IK10-rated for outdoor and impact resistance
- HD analog output, up to 5 MP resolution
- 3.6 mm fixed focal lens
- True Day/Night OSD menu, DNR, Smart IR
- EXIR technology, up to 20 m IR distance
- IP67, IK10
AC318D-OD4Z 8 MP Motorized Dome Camera
SKU:
AC318D-OD4Z
Product Overview
The AC318D-OD4Z is a high-performance 8 MP dome camera designed for versatile surveillance needs. It features a motorized vari-focal lens with auto-focus, enabling flexible field-of-view adjustments from 108° wide to 45.6° telephoto. EXIR 2.0 technology, combined with Smart IR, provides clear, uniform illumination at night up to 60 m. True Day/Night operation ensures accurate color imaging in daylight and clear monochrome visibility after dark. The camera supports DWDR, DNR, and OSD menu adjustments for optimized image quality. Its 4-in-1 switchable output (TVI/AHD/CVI/CVBS) and Up the Coax protocol simplify system integration. The rugged IP67 metal housing withstands harsh outdoor environments, making it suitable for commercial and professional security applications.Key Features
- 8 MP Ultra HD Imaging: High-resolution video with clear, detailed surveillance coverage.
- Motorized Vari-Focal Lens: 2.7–13.5 mm lens with auto-focus for precise framing and scene adjustment.
- EXIR 2.0 & Smart IR: Advanced infrared technology ensures uniform night vision up to 60 m without hotspots.
- True Day/Night & DWDR: Maintains accurate color during daylight and balanced monochrome images in low light.
- 4-in-1 Video Output: Switchable between TVI, AHD, CVI, and CVBS for flexible system compatibility.
- Advanced Image Optimization: Supports DNR, brightness and sharpness adjustments, and mirror correction.
- Robust Outdoor Protection: IP67-rated metal housing for reliable operation in harsh weather conditions.
- 8.29 MP high performance CMOS
- Auto focus
- 3840 × 2160 resolution
- 2.7 mm to 13.5 mm motorized vari‐focal lens
- EXIR 2.0, smart IR, up to 60 m IR distance
- OSD menu, DNR,
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
- Up the coax (UTC‐C)
AC326-OD 5 MP Smart IR Fixed Dome Camera
SKU:
AC326-OD 2.8mm
Product Overview
The AC326-OD delivers professional-grade security with a 5 MP CMOS sensor, producing high-resolution 2560 × 1944 images. Its 2.8 mm fixed lens offers an 85.5° horizontal field of view, ideal for monitoring entrances, lobbies, and indoor spaces. Smart IR extends night vision up to 20 meters, while DWDR, BLC, and HLC maintain balanced exposure in varied lighting conditions. Up-the-coax communication streamlines camera configuration without additional wiring, and switchable 4-in-1 outputs ensure compatibility across multiple analog HD systems. The camera combines metal construction with IK10 impact protection and an IP67 rating, delivering resilience against tampering and environmental hazards. Designed for versatile installation, the AC326-OD is suitable for commercial, retail, and residential surveillance applications.Key Features
- Smart IR Night Vision: Provides clear visibility up to 20 meters in total darkness.
- Advanced Image Processing: DWDR and 2D DNR reduce noise and improve image clarity.
- Vandal-Resistant: IK10-rated dome protects against physical impacts and tampering.
- Day/Night Accuracy: IR cut filter automatically switches for consistent color and clarity.
- Multi-System Output: Compatible with TVI, AHD, CVI, and CVBS devices.
- Remote Adjustment: Up-the-coax UTC-C enables configuration without additional cables.
- Weatherproof Construction: IP67-rated housing ensures reliable outdoor performance.
- 5 MP high performance COMS
- 2560 × 1944 resolution
- 2.8 mm fixed lens
- EXIR 2.0, smart IR, up to 20 m IR distance
- OSD menu, 2D DNR, DWDR
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67, IK10
- Up the coax (UTC‐C)
AC326-VD4Z 5 MP Motorized Vari focal Dome Camera
SKU:
AC326-VD4Z
Product Overview
The AC326-VD4Z combines a 5 MP CMOS sensor with a motorized 2.7–13.5 mm lens, allowing adjustable field of view from 95.7° to 29.1° for versatile surveillance coverage. Smart EXIR 2.0 technology delivers bright and even illumination in darkness, extending visibility up to 40 meters. Digital WDR, BLC, and 2D DNR enhance image quality in complex lighting situations. Compatible with TVI, AHD, CVI, and CVBS systems through 4-in-1 outputs, the camera supports up-the-coax UTC-C protocol for remote lens and settings adjustments. Metal construction and IP67 protection provide robustness against environmental exposure, making it suitable for both indoor and outdoor monitoring. Its integrated functions like brightness, sharpness, and mirror adjustment ensure tailored image performance for professional security applications.Key Features
- Motorized Vari-focal Lens: Adjust focal length remotely for optimized scene framing.
- Smart EXIR 2.0 Night Vision: Ensures clear imaging up to 40 m in complete darkness.
- Enhanced Image Quality: DWDR and 2D DNR reduce noise and maintain consistent exposure.
- Flexible System Compatibility: Switchable TVI/AHD/CVI/CVBS output supports diverse analog systems.
- Remote Configuration: UTC-C over coax enables lens and setting adjustments without physical access.
- Weather-Resistant: IP67-rated housing withstands rain, dust, and extreme outdoor conditions.
- Dynamic Exposure Control: BLC and HLC manage bright or backlit scenes effectively.
- 5 MP high performance COMS
- 2560 × 1944 resolution
- 2.7 mm to 13.5 mm motorized vari‐focal lens
- EXIR 2.0, smart IR, up to 40 m IR distance
- OSD menu, 2D DNR, DWDR
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
- Up the coax (UTC‐C)
AC344-OD 2 MP Ultra Low‐Light EXIR Dome Camera
SKU:
AC344-OD
Product Overview
The AC344-OD is a professional-grade dome camera engineered for ultra low-light environments. Its 2.0 MP progressive scan CMOS sensor captures full HD 1080p video with precise detail. Equipped with EXIR 2.0 Smart IR technology, it provides uniform night illumination up to 20 meters. True Day/Night functionality automatically adjusts between full color and black-and-white images for consistent monitoring. The camera features >120 dB wide dynamic range and advanced digital noise reduction to maintain high-quality images even in challenging lighting. Lens options include 2.8 mm, 3.6 mm fixed focal lengths, enabling flexible deployment scenarios. Up-the-coax HIKVISION-C protocol simplifies integration, while motion detection and privacy masking add intelligent surveillance capabilities. Its robust IK7 and IP67-rated metal construction ensures reliable outdoor operation under harsh conditions.Key Features
- Ultra Low-Light Performance: Maintains visibility in environments as low as 0.005 Lux.
- Smart EXIR 2.0 Night Vision: Delivers even, glare-free illumination up to 20 meters.
- True Day/Night Functionality: Automatically switches between color and black-and-white modes.
- High Dynamic Range & Noise Reduction: >120 dB WDR and DNR optimize image quality.
- Versatile Lens Options: Choose from 2.8 mm, 3.6 mm lenses for tailored surveillance.
- Intelligent Surveillance Tools: Supports motion detection and programmable privacy masking.
- Durable Design: IK7 impact protection and IP67-rated metal housing for long-term outdoor use.
- 2.0 megapixel high‐performance CMOS
- HD analog output, up to 1080p resolution
- 2.8 mm, 3.6 mm fixed focal lens
- True Day/Night
- 120 dB true WDR
- OSD menu, DNR, Smart IR
- EXIR 2.0, up to 20 m IR distance
- IP67, IK7
- Up the Coax (HIKVISION‐C)
AP112-ID/25X 2 MP 1080P Starlight 25X Ture WDR Recessed or Surface Dome PTZ
SKU:
AP112-ID/25X
Product Overview
The AP112-ID/25X is a professional PTZ speed dome camera designed for wide-area surveillance and precise monitoring. Equipped with a 1/2.8" progressive scan CMOS sensor, the camera captures full HD 1920 × 1080 video with excellent detail and smooth performance. Its powerful 25× optical zoom allows operators to closely monitor distant objects while maintaining image clarity across expansive scenes. Starlight imaging technology improves visibility in poor lighting conditions, making it suitable for night-time security environments. The camera integrates 120 dB true WDR to maintain image balance in scenes with strong light contrast. Intelligent positioning ensures accurate and responsive PTZ control for tracking or focusing on specific areas. Multiple switchable HD analog outputs enable flexible system compatibility. As part of the Pro Series, the AP112-ID/25X offers reliable performance and advanced monitoring capabilities for professional security deployments.Key Features
- Powerful 25× Optical Zoom: Enables detailed monitoring across large areas without loss of image quality.
- Full HD Imaging: Captures clear 1920 × 1080 video using a high-performance progressive scan sensor.
- Starlight Low-Light Technology: Maintains visibility in extremely dim environments.
- True WDR Imaging: 120 dB wide dynamic range balances bright and dark areas in challenging lighting.
- Intelligent PTZ Positioning: 3D positioning enables quick and precise camera targeting.
- Flexible Video Compatibility: Supports switchable TVI, AHD, CVI, and CVBS signal outputs.
- Enhanced Privacy Protection: Up to eight programmable privacy masks for sensitive areas.
- Resolution: 1920 × 1080 (Full HD)
- Optical Zoom: 25× optical zoom, 16× digital zoom
- Minimum Illumination: Color 0.005 Lux / B&W 0.001 Lux
- Frame Rate: Up to 25 fps (50 Hz) / 30 fps (60 Hz)
- Power Supply: 24 VAC, Max. 14 W
AP112-IR/25X 2 MP 25x IR Turbo 4-Inch Speed Dome
SKU:
AP112-IR/25X
Product Overview
The AP112-IR/25X is a high-performance 4-inch IR speed dome designed for professional surveillance applications requiring wide coverage and precise monitoring. Equipped with a 1/2.8" progressive scan CMOS sensor, the camera captures full HD 1920 × 1080 video with smooth frame rates and accurate detail reproduction. Its powerful 25× optical zoom allows operators to focus on distant targets without sacrificing image clarity. The integrated infrared system delivers up to 100 meters of night illumination, enabling reliable monitoring even in complete darkness. With true Day/Night functionality and an IR cut filter, the camera automatically adapts to changing lighting conditions. The built-in 120 dB true WDR technology ensures balanced images when bright and dark areas appear in the same scene. Advanced 3D intelligent positioning allows quick and precise PTZ control for target tracking. Designed for outdoor security deployments, the camera features IP66 protection and multiple mounting options for flexible installation.Key Features
- Long-Range Optical Zoom: 25× optical zoom enables detailed inspection across expansive surveillance areas.
- Infrared Night Monitoring: High-performance IR system provides visibility up to 100 meters in total darkness.
- Full HD Video Performance: 1920 × 1080 resolution delivers clear and accurate security footage.
- Wide Dynamic Range Imaging: 120 dB WDR preserves detail in scenes with strong lighting contrast.
- Precise PTZ Control: 3D intelligent positioning allows fast and accurate camera targeting.
- Hybrid Video Compatibility: Supports switchable Turbo HD and CVBS outputs for flexible integration.
- Enhanced Privacy Protection: Up to eight configurable privacy masks safeguard sensitive zones.
- 1/2.8" HD progressive scan CMOS
- 1920 × 1080 resolution
- 25× optical zoom
- 120 dB true WDR (Wide Dynamic Range)
- Up to 100 m IR distance
- 3D intelligent positioning
- Switchable Turbo HD and CVBS outputs
AP312-IR/25X 2 MP 25x IR Turbo 7-Inch Speed Dome
SKU:
AP312-IR/25X
Product Overview
The AP312-IR/25X is a high-performance 7-inch IR speed dome designed for demanding surveillance applications where long-range monitoring and precision control are critical. Featuring a 1/2.8" progressive scan CMOS sensor, the camera delivers 1920 × 1080 full HD video with excellent clarity. Its 25× optical zoom lens, combined with 16× digital zoom, provides detailed observation across expansive areas, while the smart IR system ensures visibility up to 150 meters even in complete darkness. True Day/Night operation with IR cut filter allows seamless adaptation to changing lighting conditions, complemented by 120 dB WDR for balanced exposure in high-contrast scenes. The camera supports 3D intelligent positioning, proportional zoom, and customizable patrol and pattern functions, giving operators complete control over tracking and surveillance coverage. With IP66 protection, automatic IR intensity adjustment, and versatile mounting options, this dome is suitable for both indoor and outdoor deployments. Advanced features such as EIS, HLC, BLC, and RS485 support provide robust performance for professional security environments.Key Features
- Long-Range Zooming: 25× optical and 16× digital zoom delivers detailed imagery over extended distances.
- High-Performance Night Vision: Smart IR technology ensures clear images up to 150 meters in low-light conditions.
- True Day/Night with IR Cut Filter: Automatic adaptation to varying light for consistent video quality.
- Wide Dynamic Range: 120 dB WDR maintains image detail in scenes with extreme light contrast.
- 3D Intelligent Positioning: Fast and accurate PTZ tracking with preset, patrol, and pattern options.
- Flexible Output Options: Switchable TVI, AHD, CVI, and CVBS outputs for easy integration.
- Enhanced Imaging Control: Proportional zoom, EIS, BLC, and HLC optimize image quality in diverse conditions.
- Resolution: 1920 × 1080 (Full HD)
- Optical/Digital Zoom: 25× optical, 16× digital
- IR Distance: Up to 150 meters with auto-adjusted intensity
- Pan/Tilt Range: 360° endless pan / -15° to 90° tilt with auto flip
- Protection: IP66 outdoor standard with surge and lightning protection
AP312-IR/32X 2 MP 32x IR Turbo 7-Inch Speed Dome
SKU:
AP312-IR/32X
Product Overview
The AP312-IR/25X is a high-performance 7-inch IR speed dome designed for demanding surveillance applications where long-range monitoring and precision control are critical. Featuring a 1/2.8" progressive scan CMOS sensor, the camera delivers 1920 × 1080 full HD video with excellent clarity. Its 32× optical zoom lens, combined with 16× digital zoom, provides detailed observation across expansive areas, while the smart IR system ensures visibility up to 150 meters even in complete darkness. True Day/Night operation with IR cut filter allows seamless adaptation to changing lighting conditions, complemented by 120 dB WDR for balanced exposure in high-contrast scenes. The camera supports 3D intelligent positioning, proportional zoom, and customizable patrol and pattern functions, giving operators complete control over tracking and surveillance coverage. With IP66 protection, automatic IR intensity adjustment, and versatile mounting options, this dome is suitable for both indoor and outdoor deployments. Advanced features such as EIS, HLC, BLC, and RS485 support provide robust performance for professional security environments.Key Features
- Long-Range Zooming: 32× optical and 16× digital zoom delivers detailed imagery over extended distances.
- High-Performance Night Vision: Smart IR technology ensures clear images up to 150 meters in low-light conditions.
- True Day/Night with IR Cut Filter: Automatic adaptation to varying light for consistent video quality.
- Wide Dynamic Range: 120 dB WDR maintains image detail in scenes with extreme light contrast.
- 3D Intelligent Positioning: Fast and accurate PTZ tracking with preset, patrol, and pattern options.
- Flexible Output Options: Switchable TVI, AHD, CVI, and CVBS outputs for easy integration.
- Enhanced Imaging Control: Proportional zoom, EIS, BLC, and HLC optimize image quality in diverse conditions.
- Resolution: 1920 × 1080 (Full HD)
- Optical/Digital Zoom: 32× optical, 16× digital
- IR Distance: Up to 150 meters with auto-adjusted intensity
- Pan/Tilt Range: 360° endless pan / -15° to 90° tilt with auto flip
- Protection: IP66 outdoor standard with surge and lightning protection
EC-T4F28M-V3 4MP Fixed Dome Network Camera
SKU:
EC-T4F28M-V3

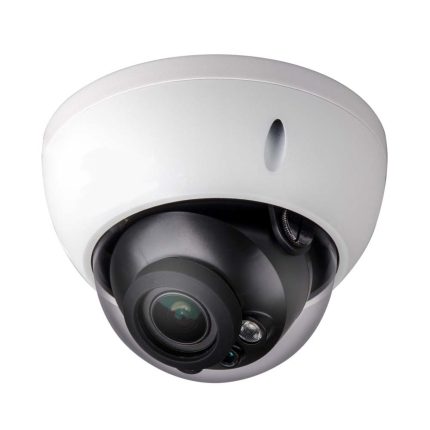

HAC-HDBW1100R-VF 1 Megapixel 720P HDCVI IR Dome Camera
SKU:
HAC-HDBW1100R-VF
Product Overview
The HAC-HDBW1100R-VF is a 1MP 720P HDCVI IR dome camera designed for reliable indoor and outdoor surveillance. Its 1/2.9" CMOS sensor delivers sharp, high-contrast video at 30fps, ensuring smooth motion capture. The camera supports day/night (ICR) operation, Smart IR, and 2D-DNR, providing clear images even in low-light conditions. With a 2.7–12mm vari-focal lens, users can remotely adjust the viewing angle to optimize coverage. Advanced imaging functions such as BLC, AWB, and AGC further enhance picture quality under varying lighting. The camera is housed in a vandal-resistant IK10 and weatherproof IP66 casing, suitable for harsh environments. Its high-speed, long-distance transmission over coaxial cable ensures minimal signal degradation, while low power consumption allows efficient deployment.Key Features
- High-Definition 720P Imaging: Real-time 1MP video at 30fps for clear scene monitoring.
- Flexible Vari-Focal Lens: 2.7–12mm lens allows precise field-of-view adjustment for targeted coverage.
- Smart Night Vision: IR LEDs with 30m range deliver uniform illumination without overexposure.
- Advanced Image Enhancements: BLC, AWB, AGC, 2D-DNR improve clarity in challenging light conditions.
- Outdoor Design: IP66 weatherproof and IK10 vandal-resistant casing ensures durability.
- Extended Transmission Capability: Supports over 500m via 75-3 coaxial cable for remote monitoring.
- Energy Efficient: Low power operation reduces consumption without compromising performance.
- Image Sensor: 1/2.9" 1MP CMOS
- Resolution: 1280 × 720 @ 30fps
- Lens: 2.7–12mm vari-focal
- IR Range: Up to 30 meters
- Protection: IP66, IK10
HAC-HDBW2220E-3.6 2 Megapixel 1080P HD-CVI IR Mini Dome Camera
SKU:
HAC-HDBW2220E-3.6
Product Overview
The HAC-HDBW2220E-3.6 is a 2MP 1080P HDCVI mini dome camera engineered for reliable day and night surveillance. Its 1/2.8" CMOS sensor captures high-definition images with excellent clarity at 25/30fps. Integrated Smart IR technology ensures objects up to 30 meters are visible in complete darkness. The camera supports 2D/3D noise reduction, BLC, and ICR day/night switching, providing consistent performance under varying lighting conditions. A 3.6mm lens delivers a well-balanced field of view, while its dual HDCVI and CVBS outputs enable flexible system integration. Built with a metal housing, the camera is IP67-rated and IK10-certified, protecting it against harsh environments and vandalism. With internal synchronization and low power consumption, it is ideal for indoor and outdoor security deployments, delivering clear, reliable footage over long-distance coaxial cable.Key Features
- High-Definition 1080P Imaging: Sharp 2MP resolution at 25/30fps for detailed surveillance.
- Smart Night Vision: IR LEDs with 30m range ensure visibility in total darkness.
- Enhanced Image Clarity: 2D/3D noise reduction and BLC maintain optimal image quality in diverse lighting conditions.
- Durable Vandal-Resistant Design: IK10-rated housing prevents tampering, ideal for public spaces.
- Weatherproof Performance: IP67 casing ensures reliable operation in challenging environments.
- Flexible Output & Transmission: Supports HDCVI/CVBS dual output and long-distance transmission over coaxial cable.
- Energy Efficient: Consumes only 3.5W, enabling economical continuous operation.
- Image Sensor: 1/2.8" 2.4MP CMOS
- Resolution: 1984 × 1225 @ 25/30fps
- Lens: 3.6mm fixed
- IR Range: Up to 30 meters
- Protection: IK10, IP67
