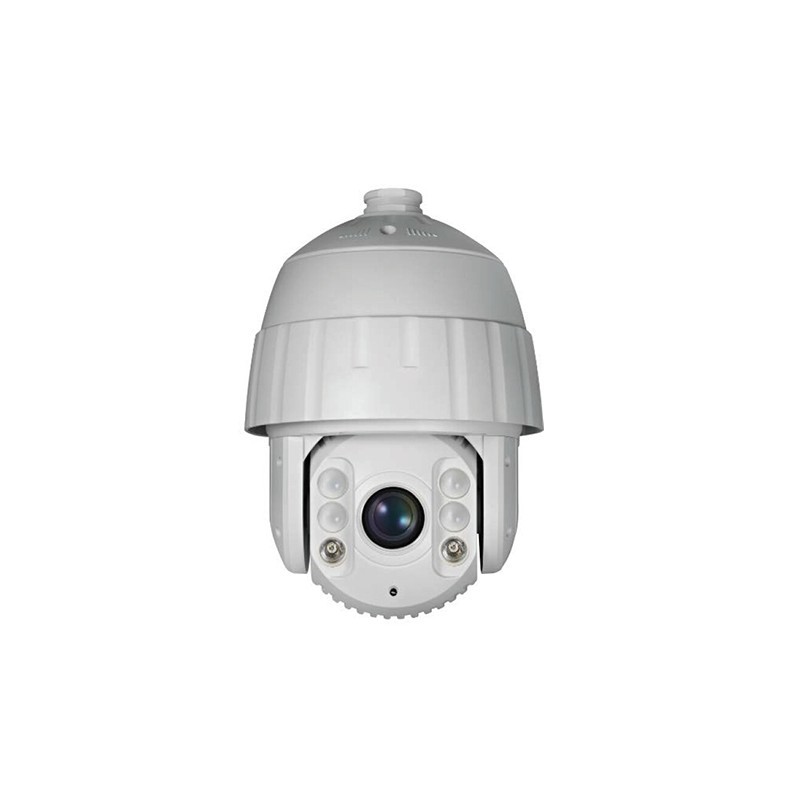

AP312-IR/32X 2 MP 32x IR Turbo 7-Inch Speed Dome

Product Overview

The AP312-IR/25X is a high-performance 7-inch IR speed dome designed for demanding surveillance applications where long-range monitoring and precision control are critical. Featuring a 1/2.8″ progressive scan CMOS sensor, the camera delivers 1920 × 1080 full HD video with excellent clarity. Its 32× optical zoom lens, combined with 16× digital zoom, provides detailed observation across expansive areas, while the smart IR system ensures visibility up to 150 meters even in complete darkness. True Day/Night operation with IR cut filter allows seamless adaptation to changing lighting conditions, complemented by 120 dB WDR for balanced exposure in high-contrast scenes. The camera supports 3D intelligent positioning, proportional zoom, and customizable patrol and pattern functions, giving operators complete control over tracking and surveillance coverage. With IP66 protection, automatic IR intensity adjustment, and versatile mounting options, this dome is suitable for both indoor and outdoor deployments. Advanced features such as EIS, HLC, BLC, and RS485 support provide robust performance for professional security environments.

Key Features

• Long-Range Zooming: 32× optical and 16× digital zoom delivers detailed imagery over extended distances.
• High-Performance Night Vision: Smart IR technology ensures clear images up to 150 meters in low-light conditions.
• True Day/Night with IR Cut Filter: Automatic adaptation to varying light for consistent video quality.
• Wide Dynamic Range: 120 dB WDR maintains image detail in scenes with extreme light contrast.
• 3D Intelligent Positioning: Fast and accurate PTZ tracking with preset, patrol, and pattern options.
• Flexible Output Options: Switchable TVI, AHD, CVI, and CVBS outputs for easy integration.
• Enhanced Imaging Control: Proportional zoom, EIS, BLC, and HLC optimize image quality in diverse conditions.

Key Specifications

• Resolution: 1920 × 1080 (Full HD)
• Optical/Digital Zoom: 32× optical, 16× digital
• IR Distance: Up to 150 meters with auto-adjusted intensity
• Pan/Tilt Range: 360° endless pan / -15° to 90° tilt with auto flip
• Protection: IP66 outdoor standard with surge and lightning protection
