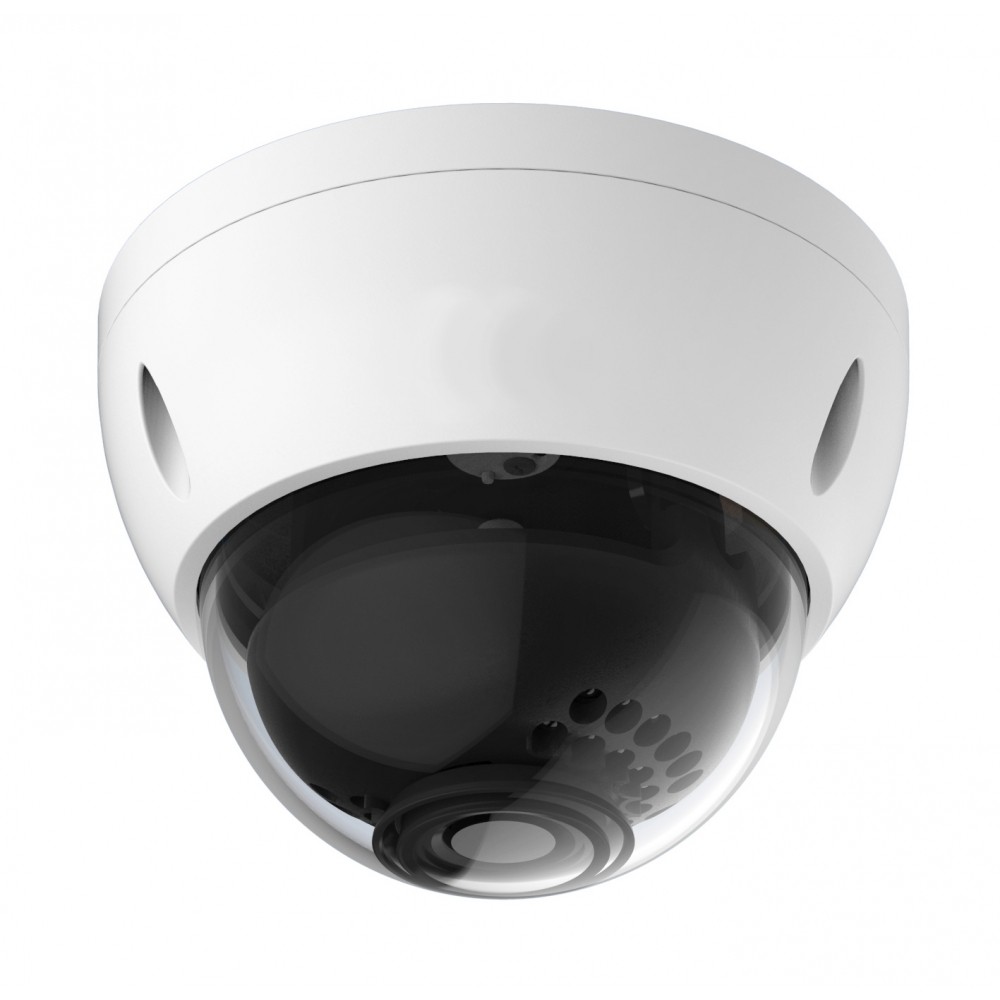

HAC-HDBW2220E-3.6 2 Megapixel 1080P HD-CVI IR Mini Dome Camera

Product Overview

The HAC-HDBW2220E-3.6 is a 2MP 1080P HDCVI mini dome camera engineered for reliable day and night surveillance. Its 1/2.8″ CMOS sensor captures high-definition images with excellent clarity at 25/30fps. Integrated Smart IR technology ensures objects up to 30 meters are visible in complete darkness. The camera supports 2D/3D noise reduction, BLC, and ICR day/night switching, providing consistent performance under varying lighting conditions. A 3.6mm lens delivers a well-balanced field of view, while its dual HDCVI and CVBS outputs enable flexible system integration. Built with a metal housing, the camera is IP67-rated and IK10-certified, protecting it against harsh environments and vandalism. With internal synchronization and low power consumption, it is ideal for indoor and outdoor security deployments, delivering clear, reliable footage over long-distance coaxial cable.

Key Features

• High-Definition 1080P Imaging: Sharp 2MP resolution at 25/30fps for detailed surveillance.
• Smart Night Vision: IR LEDs with 30m range ensure visibility in total darkness.
• Enhanced Image Clarity: 2D/3D noise reduction and BLC maintain optimal image quality in diverse lighting conditions.
• Durable Vandal-Resistant Design: IK10-rated housing prevents tampering, ideal for public spaces.
• Weatherproof Performance: IP67 casing ensures reliable operation in challenging environments.
• Flexible Output & Transmission: Supports HDCVI/CVBS dual output and long-distance transmission over coaxial cable.
• Energy Efficient: Consumes only 3.5W, enabling economical continuous operation.

Key Specifications

• Image Sensor: 1/2.8″ 2.4MP CMOS
• Resolution: 1984 × 1225 @ 25/30fps
• Lens: 3.6mm fixed
• IR Range: Up to 30 meters
• Protection: IK10, IP67
