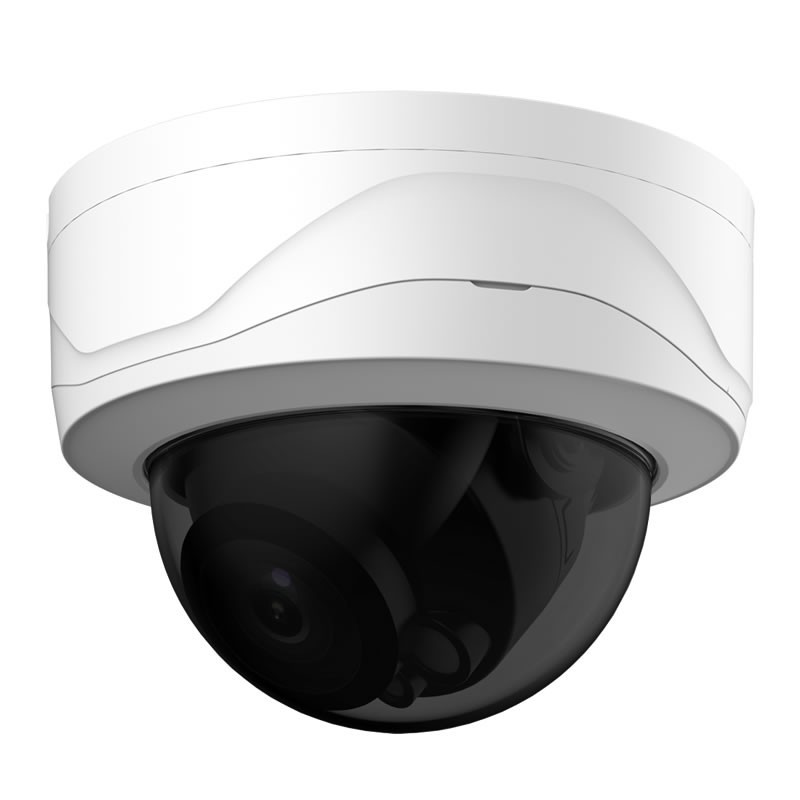

IPC-MD244E-IR 4MP WDR IR Mini Dome Network Camera

Product Overview

The IPC-MD244E-IR is a compact 4MP dome camera designed for reliable surveillance with intelligent features. Equipped with a 1/3″ progressive CMOS sensor, it outputs 2560 × 1440 resolution at 25/30 fps, delivering sharp, detailed images. Its built-in IR LEDs provide up to 30 m of night vision, complemented by WDR (120 dB), 3D-DNR, HLC, and BLC technologies for clear imaging across various environments. The camera supports intrusion and tripwire detection, as well as multiple abnormality alerts including SD card errors, network disconnection, IP conflicts, and voltage anomalies. ROI and SMART H.264/H.265+ encoding allow flexible storage management and efficient bandwidth usage. With 12V DC or PoE support, and an IK10/IP67-rated metal casing, the camera is engineered for both indoor and outdoor deployments.

Key Features

• AI-Enhanced Detection: Accurately identifies human and vehicle targets for intrusion and tripwire alerts.
• Night Vision Capability: IR LEDs illuminate up to 30 m, maintaining clarity in low-light conditions.
• Superior Imaging: 120 dB WDR and 3D DNR reduce noise and balance light for detailed footage.
• Adaptive Video Encoding: SMART H.264/H.265+ with ROI optimizes storage and network efficiency.
• Abnormality Alerts: Monitors motion, video tampering, SD card issues, network disconnections, and IP conflicts.
• Rugged Design: IK10 vandal-resistant and IP67-rated housing for reliable indoor/outdoor use.
• Flexible Storage Options: Supports up to 256 GB Micro SD, FTP/SFTP, NAS, and Dahua Cloud recording.

Key Specifications

• Sensor & Resolution: 1/3″ CMOS, 4MP (2688 × 1520), 25/30 fps
• Lens: 3.6 mm fixed lens, M12 mount, F1.6 aperture
• IR & Illumination: Max IR distance 30 m, 0.008 Lux minimum illumination
• Power & Network: 12V DC / PoE (802.3af), Max <5.2W power consumption
• Video Encoding: H.265/H.264/MJPEG, ROI and SMART codec for efficient bandwidth
