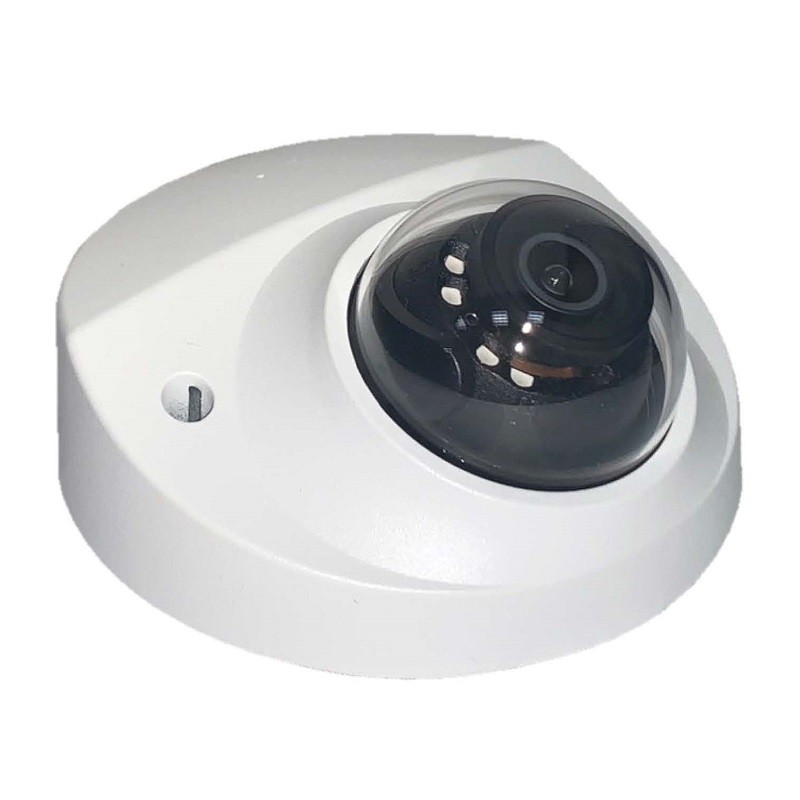

IPC-MD244F-IRM-S 4MP Lite IR Fixed-focal Dome Network Camera

Product Overview

The IPC-MD244F-IRM-S is a compact 4MP dome camera engineered for efficient and intelligent surveillance. It features a 1/3″ progressive CMOS sensor that outputs 2560 × 1440 resolution at 25/30 fps, and can reach 2688 × 1520 at 20 fps. The camera integrates advanced image enhancements, including WDR, 3D NR, HLC, BLC, and digital watermarking to maintain clarity under challenging lighting conditions. Its built-in IR LED offers up to 30 m night vision coverage. Intelligent detection functions include intrusion and tripwire alerts, complemented by abnormality detection for motion, video tampering, audio anomalies, network issues, and SD card errors. ROI and SMART H.264+/H.265+ encoding allow efficient data storage and bandwidth management. Powered via 12V DC or PoE, and housed in IK10/IP67-rated casing, this camera is suitable for a wide range of indoor and outdoor deployments.

Key Features

• Intelligent Target Detection: Distinguishes human and vehicle movement for intrusion and tripwire events.
• Enhanced Night Vision: IR illumination ensures visibility up to 30 m in complete darkness.
• Superior Image Processing: WDR, 3D NR, HLC, and BLC maintain balanced exposure and reduce noise.
• Flexible Video Encoding: SMART H.264+/H.265+ reduces bandwidth and optimizes storage use.
• Comprehensive Abnormality Alerts: Detects motion, video tampering, audio anomalies, network issues, SD card errors, and voltage irregularities.
• Audio & Alarm Support: Two-way audio with built-in microphone and alarm input/output enhances situational awareness.
• Rugged Reliability: IK10 vandal-resistant and IP67-rated metal casing ensures secure operation in harsh environments.

Key Specifications

• Sensor & Resolution: 1/3″ CMOS, 4MP (2560 × 1440) at 25/30 fps, Max 2688 × 1520 @ 20 fps
• Lens: Fixed focal, 3.6 mm lens, M12 mount, F1.6 aperture
• IR & Illumination: Built-in IR, max 30 m night vision, 0.008 Lux minimum illumination
• Power & Network: 12V DC / PoE, low power consumption with smart codec support
• Video Encoding: SMART H.264+/H.265+, ROI support, WDR, 3D NR, HLC, BLC
