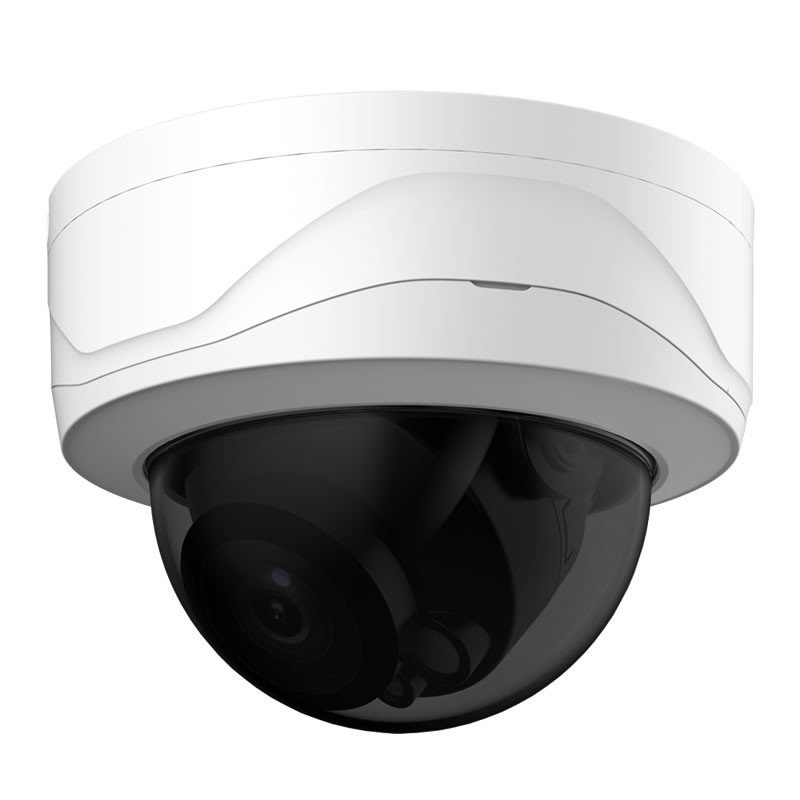

IPC-MD443E-IR-2.8 4MP HD WDR Network Vandal-proof IR Mini Dome Camera

Product Overview

The IPC-MD443E-IR-2.8 is a compact 4MP HD mini dome camera designed for versatile indoor and outdoor surveillance. Featuring a 1/3″ progressive scan CMOS sensor, it outputs 2688 × 1520 resolution at up to 20 fps and 3MP resolution at 25/30 fps. Equipped with WDR (120 dB), 3D noise reduction, AWB, AGC, and BLC, the camera maintains clear and balanced imagery under varying lighting conditions. Its 2.8 mm fixed lens provides wide coverage, complemented by up to 30 m of IR night illumination. The camera supports smart detection features for human and vehicle intrusion, plus standard abnormality alerts. Network management is simplified through Web viewer, CMS (DSS/PSS), and DMSS, while PoE power support and rugged IP67/IK10-rated housing allow reliable performance in harsh environments. Optional audio and alarm I/O, along with micro SD support, further enhance situational awareness.

Key Features

• Smart Detection: Monitors human and vehicle motion with tripwire and intrusion alerts.
• Enhanced Low-light Imaging: IR illumination up to 30 m and ICR day/night switching ensure reliable night surveillance.
• Advanced Image Processing: WDR 120 dB, 3D NR, AWB, AGC, and BLC for superior image clarity in complex lighting.
• Flexible Network Monitoring: Supports Web viewer, CMS (DSS/PSS), and DMSS for real-time remote access.
• Audio & Alarm Support: Optional 1/1 audio input/output and 1/1 alarm input/output enhance security response.
• Durable Design: IK10 vandal-proof and IP67-rated for long-lasting performance in indoor and outdoor installations.
• Efficient Encoding: H.264/MJPEG dual codec supports bandwidth optimization and flexible storage.

Key Specifications

• Sensor & Resolution: 1/3″ 4MP progressive CMOS, 2688 × 1520 @ 20 fps, 3M @ 25/30 fps
• Lens: 2.8 mm fixed focal lens
• IR & Illumination: Max IR distance 30 m, IR cut filter with day/night function
• Video Processing: WDR 120 dB, 3D NR, BLC, AGC, AWB; Smart Detection supported
• Power & Protection: PoE / 12V DC, IP67 rated, IK10 vandal-proof casing
