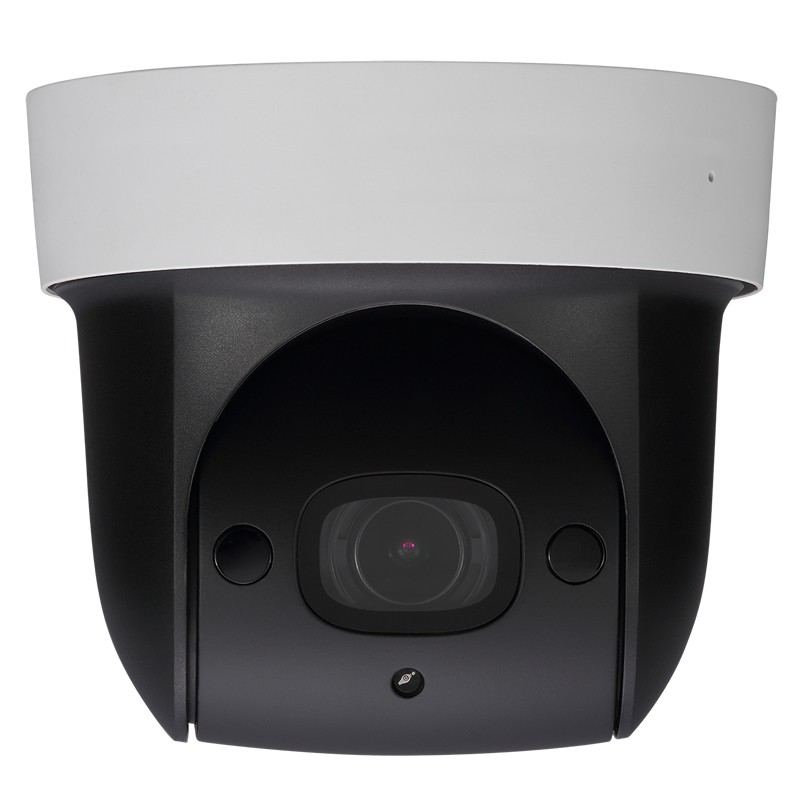

IPC-PD29204SG-S 2 Megapixel Full HD Network Mini IR PTZ Dome Camera

2 Megapixel Full HD Network Mini IR PTZ Dome Camera

  • 2MP Full HD PTZ dome camera with precise pan, tilt, and zoom control
  • 4x optical zoom with ultra DNR and DWDR for high-quality imaging in diverse lighting
  • IR night vision up to 30 m for reliable low-light monitoring
  • Supports intelligent 3D positioning and up to 300 presets for flexible surveillance
  • Dual-stream encoding with H.264 & MJPEG for efficient bandwidth usage
  • Remote monitoring via Web viewer, CMS (DSS/PSS), and DMSS mobile apps
SKU: IPC-PD29204SG-S Categories: ,
Description

Product Overview

The IPC-PD29204SG-S is a versatile 2MP Full HD PTZ dome camera ideal for dynamic surveillance scenarios. Equipped with a 1/2.8″ progressive CMOS sensor, it delivers crisp 1080P at 25/30 fps and smooth 720P at 50/60 fps. Its 4x optical zoom, auto iris, and autofocus allow detailed observation over wide areas. Advanced imaging features like DWDR, Ultra DNR, and day/night ICR switching ensure clear images in challenging lighting conditions. The camera supports up to 300 presets, 5 auto scans, 8 tours, and 5 pattern modes, combined with intelligent 3D positioning via DH-SD protocol for precise tracking. Optional PoE or Wi-Fi connectivity, built-in microphone, and micro SD card storage enhance deployment flexibility. With a 30 m IR range, it ensures round-the-clock surveillance.

Key Features

  • Dynamic PTZ Control: Pan up to 360°, tilt 0–90° with 180° auto-flip for full coverage.
  • 4x Optical Zoom & Autofocus: Provides sharp detail recognition across varied distances.
  • Intelligent 3D Positioning: Accurate tracking of objects and preset area scanning.
  • Enhanced Low-light Imaging: DWDR and Ultra DNR for clean, high-contrast images.
  • Preset & Patrol Support: Up to 300 presets, 5 auto scans, 8 tours, 5 patterns.
  • Flexible Connectivity: Supports PoE, optional Wi-Fi, and multiple network monitoring platforms.
  • Night Vision: IR LEDs deliver clear imaging up to 30 m in darkness.



Key Specifications

  • Image Sensor: 1/2.8″ 2MP progressive CMOS, 1920 × 1080 @ 25/30 fps
  • Lens & Zoom: 4x optical zoom, F1.6–F2.8, 16x digital zoom
  • Pan/Tilt Range: Pan 0–360°, Tilt 0–90°, 180° auto flip
  • IR & Illumination: Built-in IR LEDs, effective up to 30 m
  • Power & Monitoring: DC12V / PoE, multiple network monitoring via Web viewer, CMS, DMSS
Additional information
Camera Resolutions

Camera Style

Image Sensor

1/2.8" CMOS

Effective Pixels

1920(H) x 1080(V)

,

2Megapixels

Scanning System

Progressive

Electronic Shutter Speed

1/1 ~ 1/30

,

000s

Min. Illumination

Color: [email protected]; B/W: [email protected]

Day/Night

Auto(ICR) / Color / B/W

Auto(ICR) / Color / B/W

Ultra DNR (2D/3D)

Digital Zoom

16x

Max Aperture

F1.6~ F2.8

Pan/Tilt Range

Pan: 0° ~ 360° limited; Tilt: 0° ~ 90°

,

auto flip 180°

IR Distance

30m

Power Supply

DC12V

,

POE

Power Consumption

10W

,

13W (IR on)

Dimensions

Φ132.7 (mm) x 116.5 (mm)

Weight

0.95kg

Audio

Built-in Microphone

Download

Datasheet

No associated firmware documentation found.
