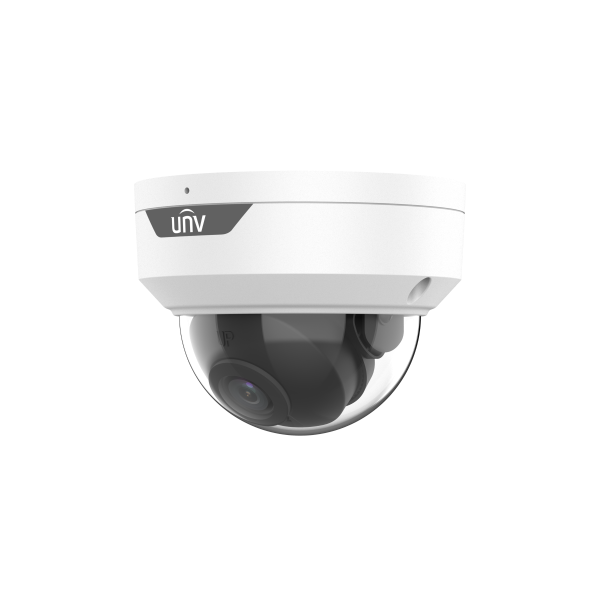

IPC328SR-ADF40KM-H 8MP HD Easystar WDR Three Axis Fixed IR Mini Dome Network Camera

8MP HD Easystar WDR Three Axis Fixed IR Mini Dome Network Camera

SKU: IPC328SR-ADF40KM-H Category: Sharp Series

Description

High quality image with 8 MP, 1/2.8″ CMOS sensor
8 MP (3840 × 2160)@20 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Built-in mic
Smart IR, up to 30 m (98.4 ft) IR distance
MicroSD, up to 512 GB
IP67 protection
IK10 protection
Supports PoE power supply
3-axis

Additional information

Sensor	1/2.8" CMOS
Camera Resolutions	8 MP
Camera Style	Dome
Lens Size	4mm
Lens Type	Fixed Lens
WDR	120 dB
Min. Illumination	Support Easystar: color: 0.005 Lux ( F1.6 , AGC ON) , 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual , 1 ~ 1/100000s
Adjustment Angle	Pan: 8° to 360° , Tilt: 0° to 68° , Rotate: 10° to 360°
S/N	>52 dB
IR On/Off Control	Auto/Manual
Iris	F1.6
Illumination Distance (IR)	30 m (98.4 ft)
Wavelength	850nm
Video Compression	Ultra 265 , H.265 , H.264 , MJPEG
Video Bit Rate	128 Kbps to 16 Mbps
Digital Noise Reduction	2D/3D DNR
Edge Storage	Micro SD , up to 512GB
Network Storage	ANR , NAS (NFS)
Network Interface	1 × RJ45 10 M/100 M Base-TX Ethernet
Audio	Built-in Microphone
Power	DC 12 V±25% , PoE (IEEE 802.3af)
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø111 mm × 83 mm (Ø4.4" × 3.3") (Ø × H)
Weight	0.36 kg (0.79 lb)
Material	Metal
Surge Protection	4 KV
Power Consumption	Max. 4.9 W
Protection	IK10 , IP67
