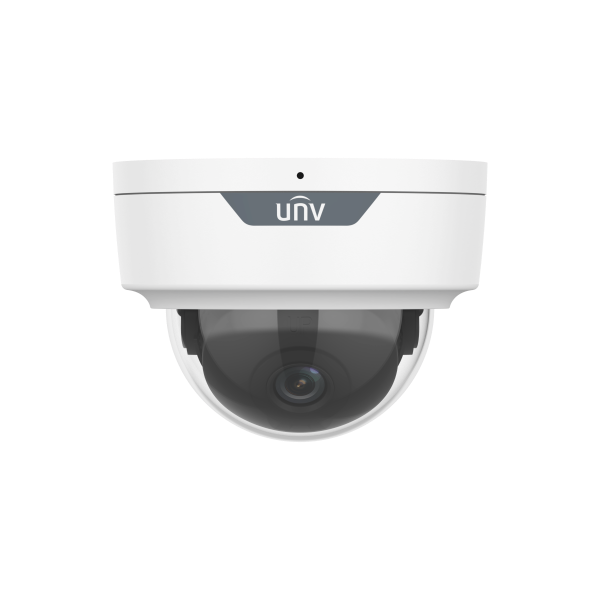

IPC328SS-ADF28K-I1 8MP LightHunter Fixed IR Dome Network Camera

8MP LightHunter Fixed IR Dome Network Camera

SKU: IPC328SS-ADF28K-I1 Category: SS-I1

Description

High quality image with 8 MP, 1/2.8″ CMOS sensor
8 MP (3840 × 2160)@30/25 (default) fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
Intelligent people flow counting and crowd density monitoring
Smart intrusion prevention with color retrieval
ASM (auto scene match)
LightHunter technology ensures ultra-high image quality in low illumination environment
130 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Alarm I/O: 1/1, audio I/O: 1/1
Built-in mic
Smart IR, up to 40 m (131.2 ft) IR distance
MicroSD, up to 512 GB
IK10 vandal resistant and IP67 protection

Additional information

Sensor	1/2.8" CMOS
Camera Resolutions	8 MP
Camera Style	Dome
Lens Size	2.8mm
Lens Type	Fixed Lens
WDR	130 dB
Min. Illumination	Color: 0.002 Lux (F1.6 , AGC ON) , 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual , 1 ~ 1/100000s
Adjustment Angle	Pan: 0° to 352° , Tilt: 0° to 70° , Rotate: 0° to 350°
S/N	>56 dB
Iris	F1.6
Illumination Distance (IR)	40 m (131.2 ft)
Video Compression	Ultra 265 , H.265 , H.264 , MJPEG
Video Bit Rate	128 Kbps to 16 Mbps
Digital Noise Reduction	2D/3D DNR
Edge Storage	Micro SD, up to 512 GB
Network Storage	ANR , NAS (NFS)
Audio	Built-in Microphone , Built-in Speaker
Interface Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Power	DC 12 V±25% , PoE (IEEE 802.3af)
Power Consumption	Max. 7.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø111 mm × 83 mm (Ø4.4" × 3.3") (Ø × H)
Weight	0.43 kg (0.95 lb)
Material	Metal
Surge Protection	4 KV
Protection	IP67
