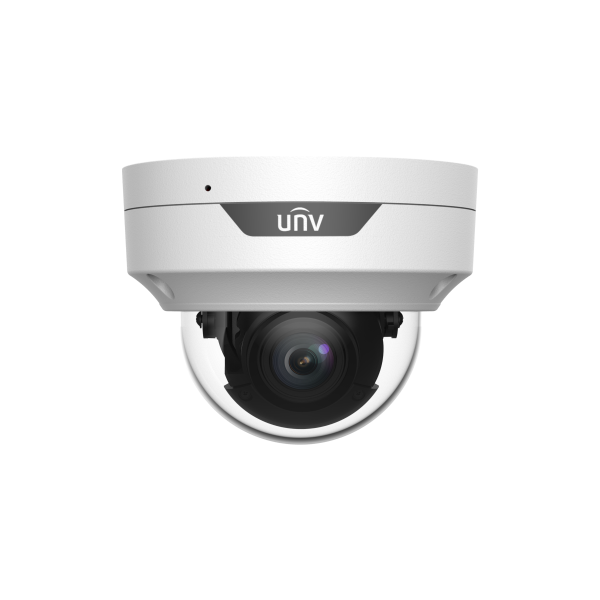

IPC3535SR4-ADZK-H 5MP HD Motorized VF Dome Network Camera

5MP HD Motorized VF Dome Network Camera

SKU: IPC3535SR4-ADZK-H Category: Sharp Series

Description

High quality image with 5 MP, 1/2.7″ CMOS sensor
5 MP (2880 × 1620)@25/20 fps; 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Smart IR, up to 40 m (131.2 ft) IR distance
MicroSD, up to 256 GB
IP67 protection
IK10 protection
Supports PoE power supply
3-axis

Additional information

Sensor	1/2.7" CMOS
Camera Resolutions	5 MP
Camera Style	Dome
Lens Size	2.8-12mm
Lens Type	Motorized Lens
WDR	120 dB
Min. Illumination	Color: 0.001 Lux (F1.6 , AGC ON) , 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual , 1 ~ 1/100000s
Adjustment Angle	Pan: 3° to 360° , Tilt: 0° to 70° , Rotate: 3° to 360°
S/N	>52 dB
IR On/Off Control	Auto/Manual
Iris	F1.6
Illumination Distance (IR)	40 m (131.2 ft)
Wavelength	850nm
Video Compression	Ultra 265 , H.265 , H.264 , MJPEG
Video Bit Rate	128 Kbps to 6144 Kbps
Digital Noise Reduction	2D/3D DNR
Edge Storage	Micro SD , up to 512GB
Network Storage	ANR , NAS (NFS)
Network Interface	1 × RJ45 10 M/100 M Base-TX Ethernet
Power	DC 12 V±25% , PoE (IEEE 802.3af)
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø128 mm × 100 mm (Ø5.0" × 3.9") (Ø × H)
Weight	0.66 kg (1.46 lb)
Material	Metal
Surge Protection	6 KV
Power Consumption	Max. 8.0 W
Protection	IK10 , IP67
