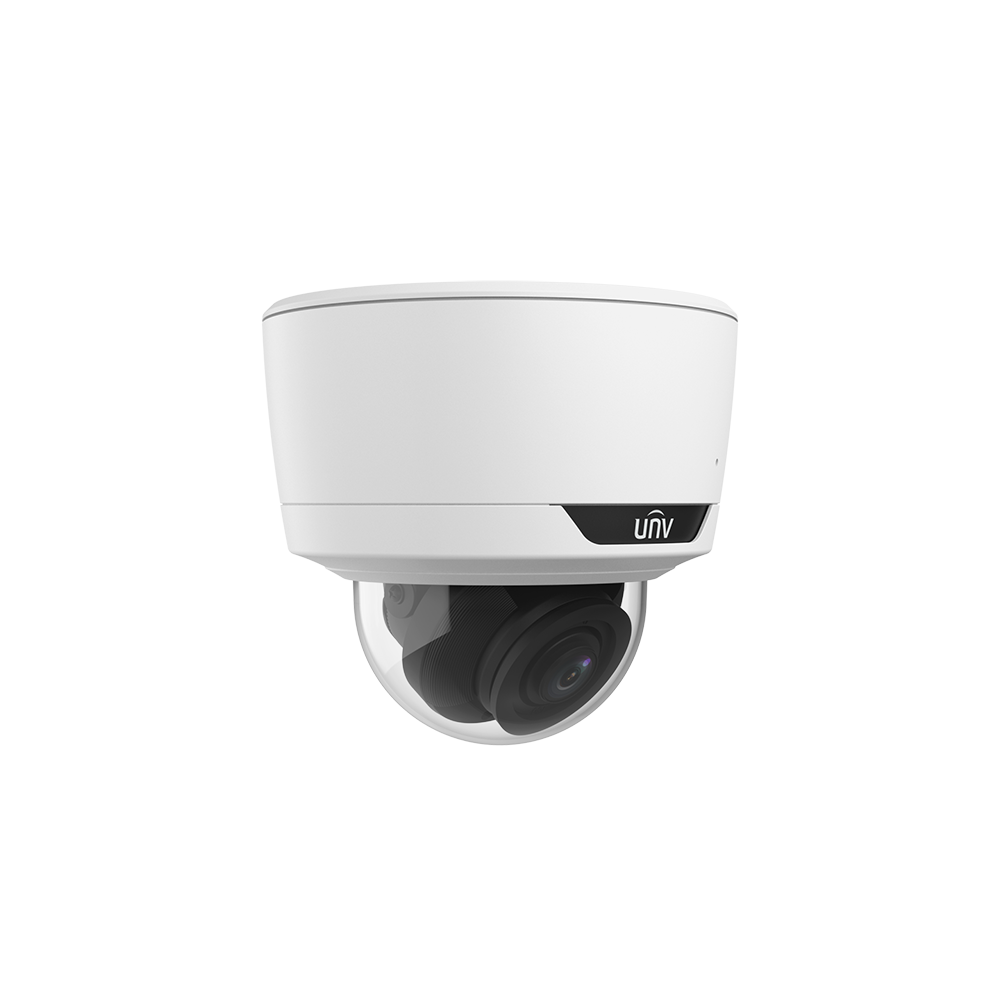

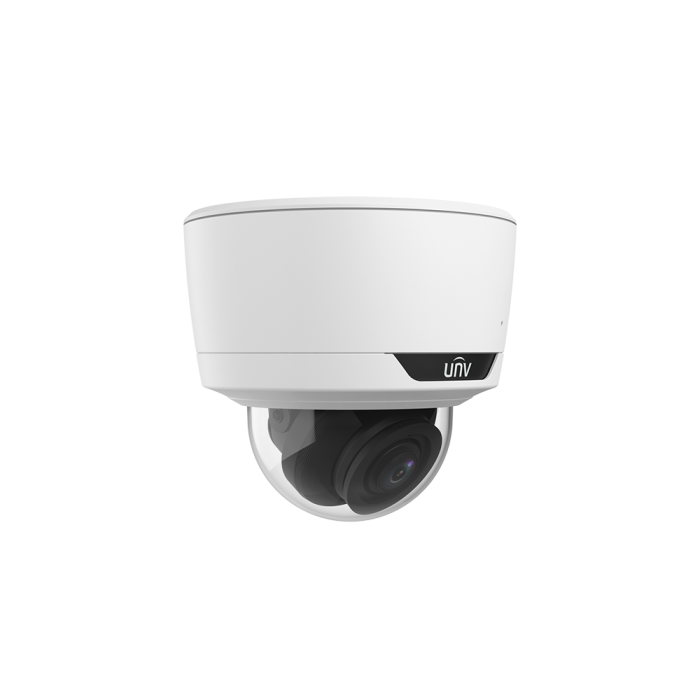

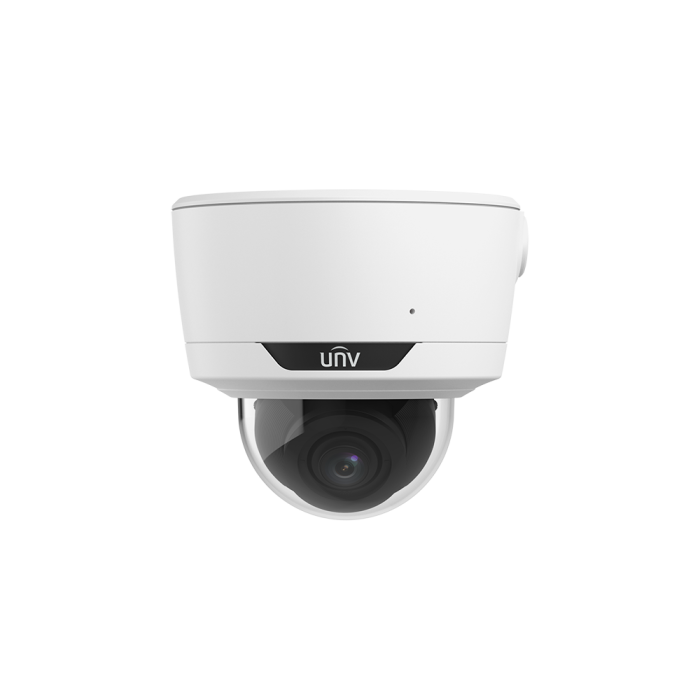

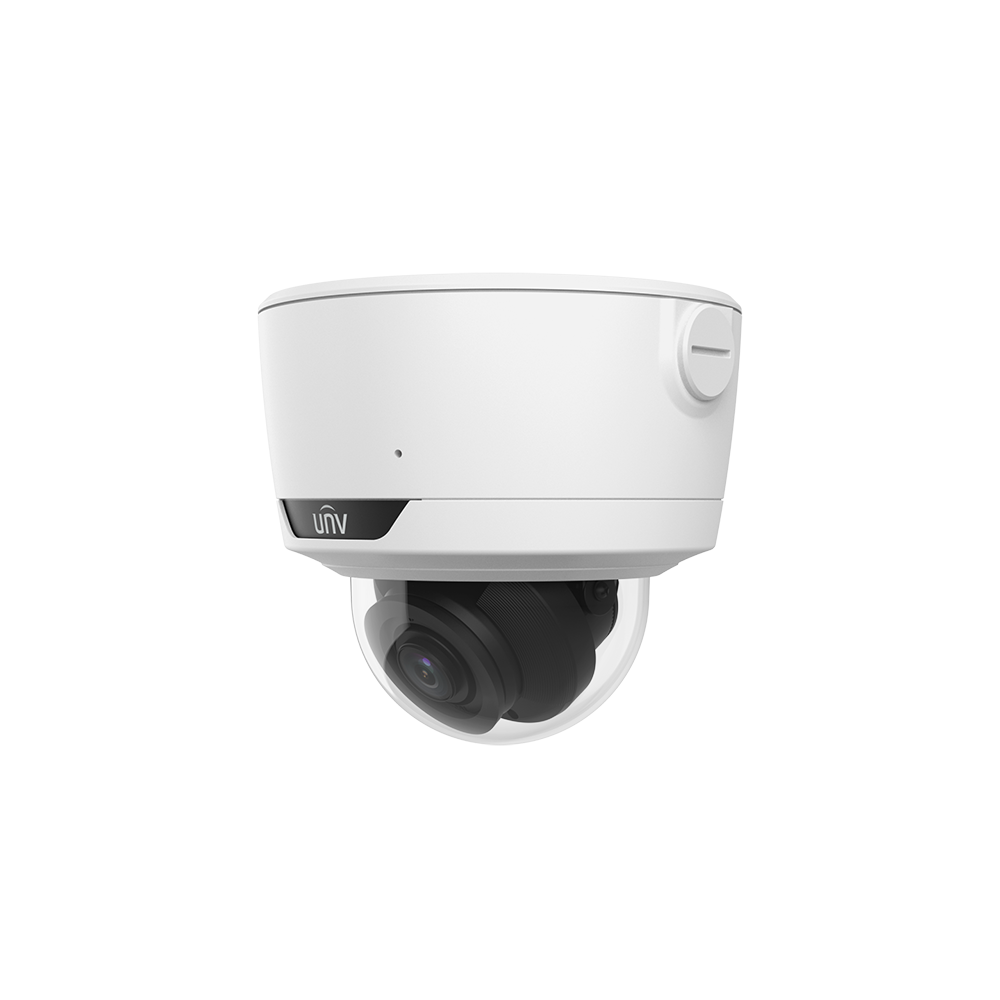

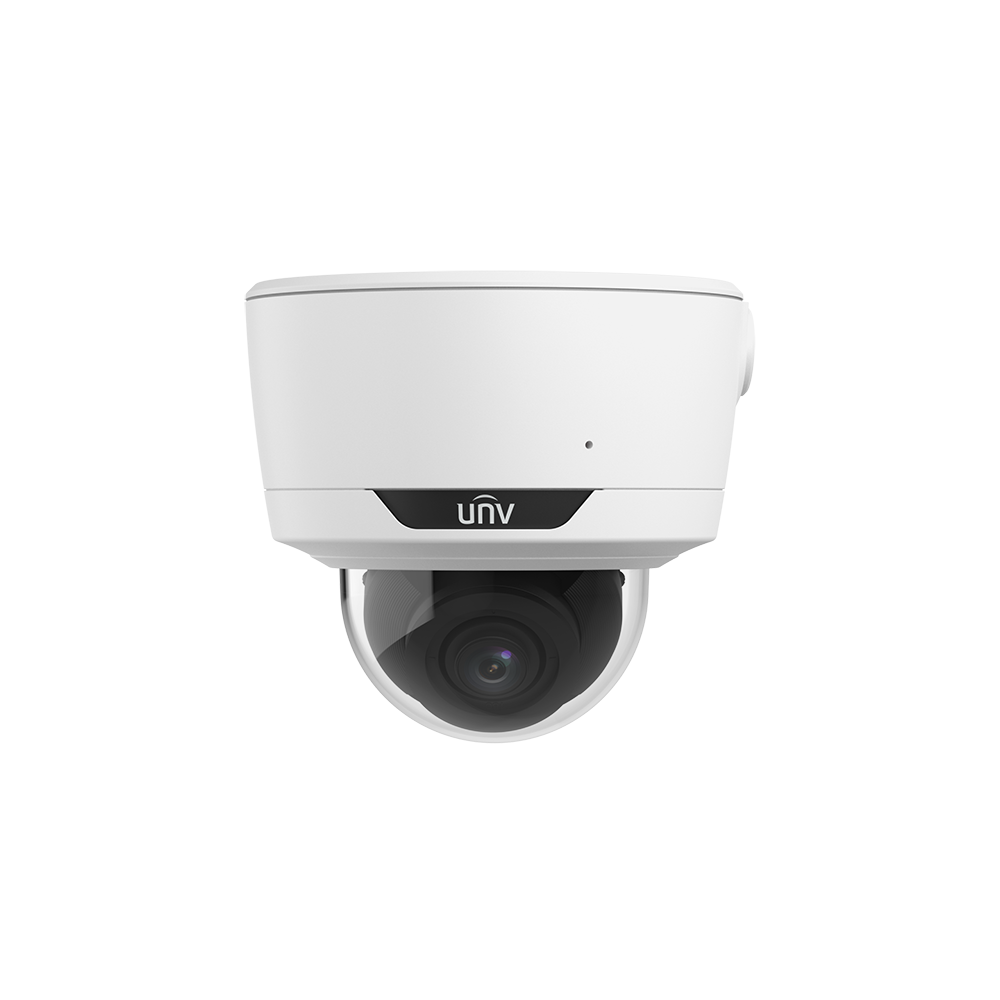

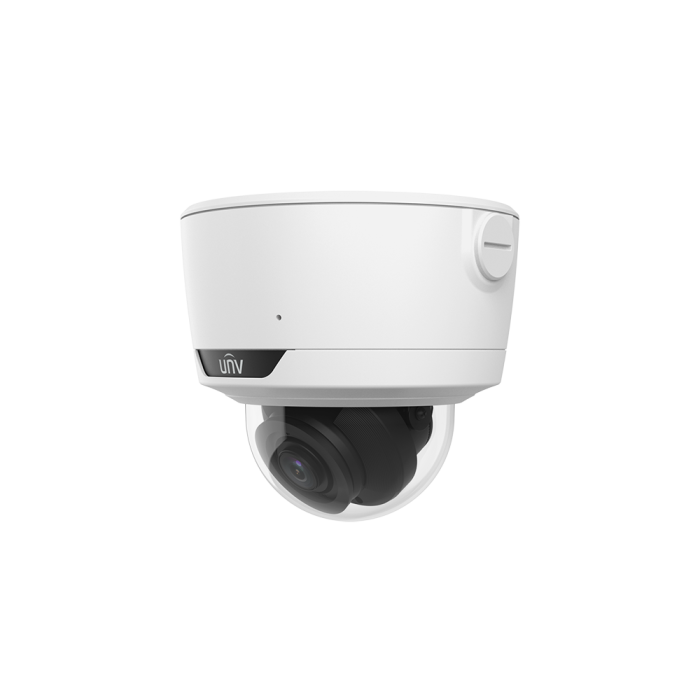

IPC3735SS-ADZK-I1 5MP LightHunter VF IR Dome Network Camera
5MP LightHunter VF IR Dome Network Camera
Description
- High quality image with 5 MP, 1/2.7″ CMOS sensor
- 5 MP (2880 × 1620)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, including cross line, intrusion, enter area, leave area detection
- Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
- Intelligent people flow counting and crowd density monitoring
- Smart intrusion prevention with color retrieval
- ASM (auto scene match)
- LightHunter technology ensures ultra-high image quality in low illumination environment
- 130 dB true WDR technology enables clear image in strong light scene
- Supports 9:16 corridor mode
- Alarm I/O: 1/1, audio I/O: 1/1, built-in mic
- Smart IR, up to 40 m (131.2 ft) IR distance
- MicroSD, up to 512 GB
- IK10 vandal resistant and IP67 protection
Additional information
| Sensor |
1/2.7" CMOS |
|---|---|
| Camera Style | |
| Camera Resolutions | |
| Lens Size | |
| Lens Type | |
| WDR |
130 dB |
| Min. Illumination |
Color: 0.002 Lux (F1.2 ,AGC ON) ,0 Lux with IR on |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual ,1 ~ 1/100000s |
| Adjustment Angle |
Pan: 3° to 360° ,Tilt: 0° to 68° ,Rotate: 3° to 360° |
| S/N |
>56 dB |
| Iris |
F1.6 |
| Illumination Distance (IR) |
40 m (131.2 ft) |
| Video Compression |
Ultra 265 ,H.265 ,H.264 ,MJPEG |
| Video Bit Rate |
128 Kbps to 16 Mbps |
| Digital Noise Reduction |
2D/3D DNR |
| Edge Storage |
Micro SD, up to 512 GB |
| Network Storage |
ANR ,NAS (NFS) |
| Audio |
Built-in Microphone |
| Interface Network |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Power |
DC 12 V±25% ,PoE (IEEE 802.3af) |
| Power Consumption |
Max. 8.0 W |
| Power Interface |
Ø5.5 mm coaxial power plug |
| Dimensions |
Ø162 mm × 149 mm (Ø6.4" × 5.9") (Ø × H) |
| Weight |
1.36 kg (2.99 lb) |
| Material |
Metal |
| Surge Protection |
6 KV |
| Protection |
IP67 |
