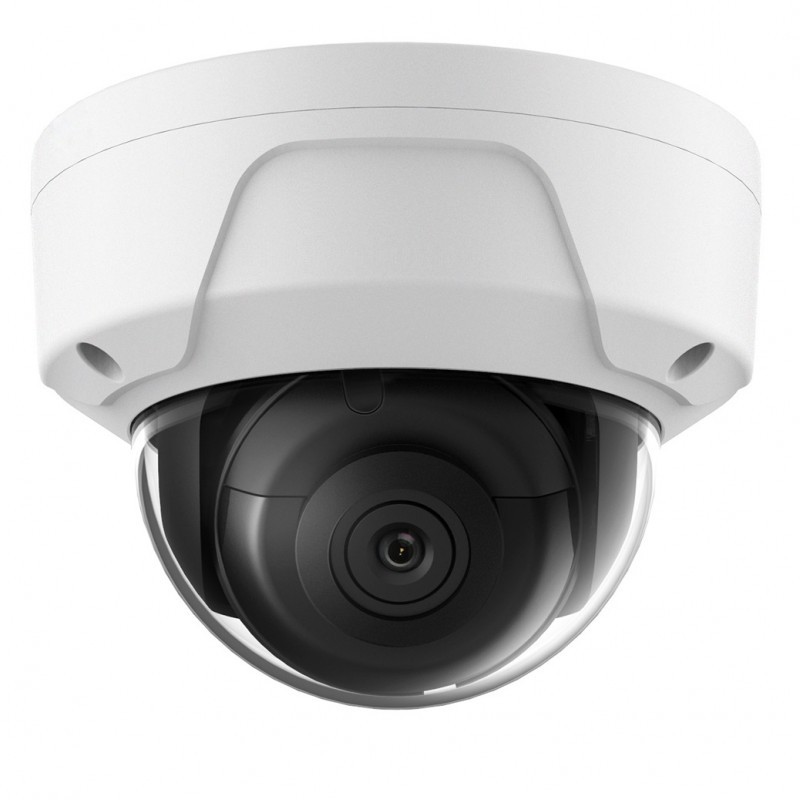

NC324-TDA 4 MP IR Fixed Dome Network Camera

4 MP IR Fixed Dome Network Camera

1/3″ Progressive Scan CMOS
2560 × 1440@30fps
2.8 fixed lens
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
H.265+, H.265, H.264+, H.264
Three streams
120dB WDR
2 Behavior analyses, and face detection
BLC/3D DNR/ROI
IP67, IK10
Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
3-Axis adjustment

SKU: NC324-TDA 2.8mm Categories: NETWORK CAMERAS, WINIC

Description

Product Overview

The NC324-TDA is a 4 MP IR fixed dome network camera engineered for advanced surveillance in both indoor and outdoor environments. Featuring a 1/3″ Progressive Scan CMOS sensor, it delivers 2560 × 1440 resolution at 30 fps with high clarity. The camera utilizes 120 dB WDR for superior image quality in high-contrast lighting and supports H.265+ compression for efficient storage and bandwidth use. Integrated behavior analytics including line crossing and intrusion detection, along with face detection, provide smart alert capabilities. Designed for reliability, it combines IP67 and IK10 protection with flexible audio and alarm interfaces, making it ideal for intelligent security deployments.

Key Features

Ultra HD 4 MP Imaging
Delivers sharp, detailed video for critical surveillance areas.
Smart Detection & Analytics
Includes line crossing detection, intrusion detection, and face detection for intelligent monitoring.
Advanced WDR Technology
120 dB WDR ensures clear imaging even under challenging lighting conditions.
Efficient Video Compression
Supports H.265+/H.265/H.264+/H.264, optimizing storage and network efficiency.
Flexible Audio & Alarm Support
Built-in microphone, line-in/out, and alarm I/O for versatile integration.
Robust Outdoor & Vandal Resistance
Certified IP67 weatherproof and IK10 vandal resistant with lightning and surge protection.
Multi-Stream Capability
Main, sub, and third streams for flexible live view and recording options.

Key Specifications

Image Sensor: 1/3″ Progressive Scan CMOS, Max Resolution: 2560 × 1440
IR Range: Up to 30 m, 850 nm wavelength
Lens: 2.8 mm fixed, M12 mount
Wide Dynamic Range: 120 dB
Power Supply: 12 VDC ±25%, PoE (802.3af, Class 3)
Storage: Built-in micro SD/SDHC/SDXC slot, up to 128 GB

Additional information

3‐Axis Adjustment	Pan: 0° to 355° , tilt: 0° to 75° , rotate: 0° to 355°
Alarm	1 input , 1 output (up to 12 VDC , 30 mA) , terminal block
Alarm Trigger	Motion detection , video tampering , network disconnected , IP address conflict , illegal login , HDD full , HDD error
API	ONVIF (PROFILE S , PROFILE G) , ISAPI
Audio	1 input (line in/mic.in) , 1 output (line out) , terminal block , mono sound
Audio Bit Rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32‐192Kbps(MP2L2)
Audio Sampling Rate	16 kHz/32 kHz/44.1 kHz/48 kHz
Auto iris	No
Behavior Analysis	Line crossing detection , intrusion detection
Client	iVMS‐4200 , Hik‐Connect , iVMS‐5200
Communication Interface	1 RJ45 10M/100M self‐adaptive Ethernet port
Compression (audio)	G.711/G.722.1/G.726/MP2L2/PCM
Day & Night	IR Cut Filter
Day/night Switch	Auto/Schedule/Triggered by alarm in (‐S)
Digital Noise Reduction	3D DNR
Dimensions	Camera: Φ 111 × 82.4 mm (Φ 4.4" × 3.2") Package: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3")
Electronic Shutter Speed	1/3 s to 1/100 , 000 s
Environment Noise Filtering	Yes
Face Detection	Yes
Focal Length	2.8 mm
Focus Control	Manual
Camera Resolutions	4 MP
Camera Style	Dome
Lens Type	Fixed Lens
H.264+	Main stream and sub‐stream support
H.265 Type	Main Profile
H.265+	Main stream and sub‐stream support
Image Enhancement	BLC/3D DNR
Image Sensor	1/3" Progressive Scan CMOS
Image Settings	Rotate mode , saturation , brightness , contrast , sharpness adjustable by client software or web browser
IR Range	Up to 30 m
Lens Mount	M12
Main Stream	50Hz:25fps (2560 × 1440 , 2304 × 1296 , 1920 × 1080) 60Hz: 30fps (2560 × 1440 , 2304 × 1296 , 1920 × 1080)
Material	Metal
Max Aperture	F1.6
Max. Resolution	2560 × 1440
Min. Illumination	Color: 0.01 Lux @ (F1.2 , AGC ON) , 0.018 Lux @ (F1.6 , AGC ON) , 0 Lux with IR
Network Protocols	TCP/IP , ICMP , HTTP , HTTPS , FTP , DHCP , DNS , DDNS , RTP , RTSP , RTCP , PPPoE , NTP , UPnP™ , SMTP , SNMP , IGMP , 802.1X , QoS , IPv6 , Bonjour
Network Storage	Support Micro SD/SDHC/SDXC card (128G) , local storage and NAS (NFS , SMB/CIFS) , ANR
On-Board Storage	Built‐in Micro SD/SDHC/SDXC slot , up to 128 GB
Operating Conditions	‐30 °C to +60 °C (‐22 °F to +140 °F) , Humidity 95% or less (non‐condensing)
Power Consumption	12 VDC , 0.5A , max. 6W PoE (802.3af , 37V to 57V) , 0.2A to 0.1A , max. 7.5W
Power Supply	12 VDC ± 25% , Φ 5.5 mm coaxial power plug PoE (802.3af , class 3)
Protection	IP67 , IK10 TVS 2000V Lightning Protection , Surge Protection and Voltage Transient Protection
Region of Interest	1 fixed region for main stream and sub‐stream
Reset Button	Yes
Simultaneous Live View	Up to 6 channels
Slow Shutter	Yes
Sub‐Stream	50Hz: 25fps (640 × 480 , 640 × 360 , 320 × 240) 60Hz: 30fps (640 × 480 , 640 × 360 , 320 × 240)
SVC	H.264 and H.265 encoding
Target Cropping	No
Third Stream	50Hz: 25fps (1280 × 720 , 640 × 360 , 352 × 288) 60Hz: 30fps (1280 × 720 , 640 × 360 , 352 × 240)
User/Host Level	Up to 32 users 3 levels: Administrator , Operator and User
Video Bit Rate	32 Kbps to 16 Mbps
Video Compression	Main stream: H.265/H.264 Sub‐stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Output	No
Wavelength	850nm
Web Browser	IE8+ , Chrome 31.0‐44 , Firefox 30.0‐51 , Safari 8.0+
Weight	Camera: Approx. 610 g (1.3 lb.) With Package: Approx. 820 g (1.8 lb.)
Wide Dynamic Range	120dB
