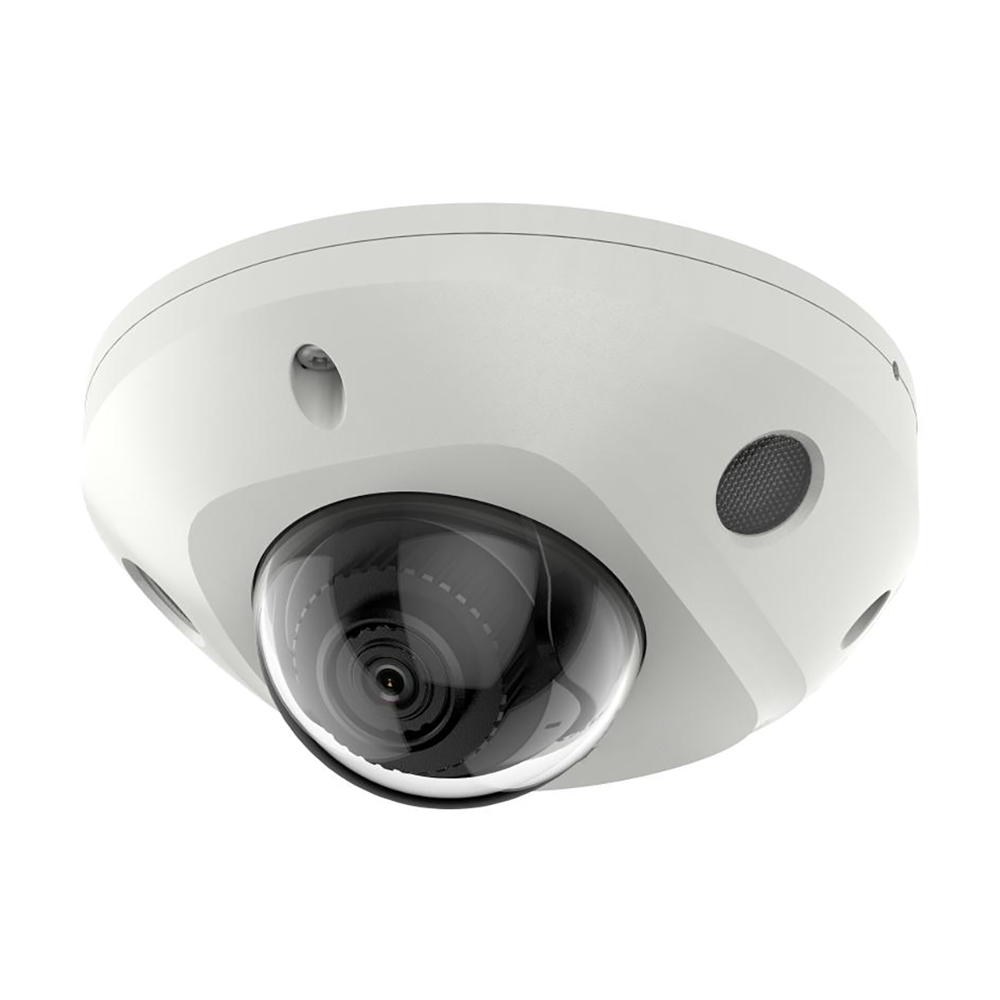

NC324G2-WDA 4 MP AcuSense Fixed mini Dome Network Camera

Product Overview

The NC324G2-WDA is a 4 MP AcuSense mini dome network camera designed for precise and intelligent surveillance. Equipped with a 1/3″ Progressive Scan CMOS sensor and 120 dB WDR, it captures sharp images even in challenging lighting conditions. Powered by H.265+ compression and on-board deep learning-based human and vehicle detection, the camera reduces false alarms and enhances monitoring efficiency. Integrated audio and alarm interfaces with a built-in microphone enable advanced security interactions. The camera’s IP67 weatherproof and IK08 vandal-resistant housing ensures reliable outdoor performance, while PoE support simplifies network deployment.

Key Features

• Ultra HD 4 MP Imaging: Delivers 2688 × 1520 resolution with crisp detail for critical surveillance areas.
• Intelligent AcuSense Detection: Deep learning algorithms classify human and vehicle targets, reducing false alarms.
• Advanced Wide Dynamic Range: 120 dB WDR ensures clear imaging under strong backlight and mixed-light scenes.
• Efficient Video Compression: Supports H.265+ / H.265 / H.264+ / H.264, optimizing storage and network bandwidth.
• Audio & Alarm Integration: Built-in microphone and dedicated alarm interface for real-time alerts and monitoring.
• Robust Protection: IP67 weatherproof and IK08 vandal-resistant, suitable for both indoor and outdoor environments.
• Flexible Viewing Angles: Pan: -30° to 30°, Tilt: 0° to 75°, Rotate: 0° to 360°, with a 2.8 mm fixed lens.

Key Specifications

• Lens: 2.8 mm fixed, M12 mount, F1.6 aperture
• IR & Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR
• Video Bit Rate: 32 Kbps – 8 Mbps
• Power Supply: 12 VDC ±25% / PoE (802.3af, Class 3)
• Protection: IP67 weatherproof, IK08 vandal-resistant
