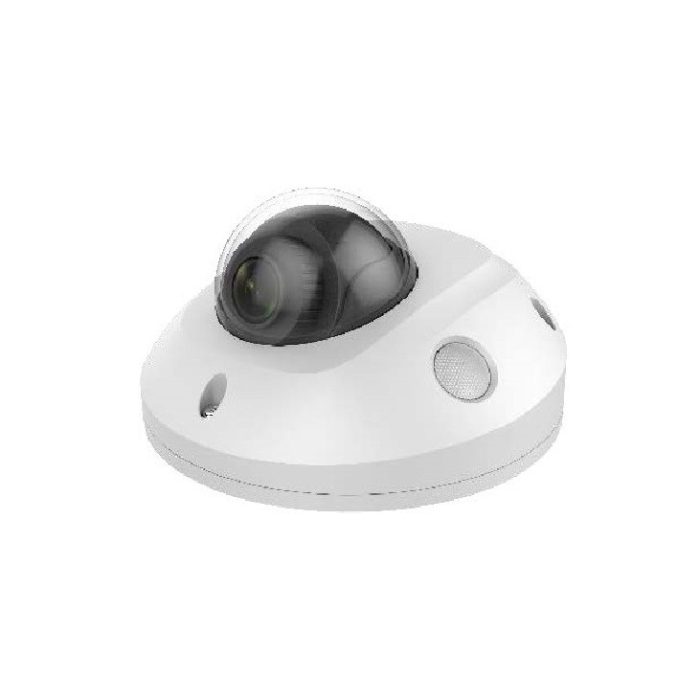

NC326-WDC 6 MP IR Fixed Mini Dome WIFI Network Camera

6 MP Mini Dome Camera with built-in Wi-Fi delivers crisp, clear surveillance video in day or night conditions.
IR illumination extends visibility up to 10 meters.
Advanced 120 dB WDR ensures balanced lighting in challenging environments.
Supports local storage via micro SD cards up to 128 GB.
Flexible connectivity with PoE or wireless option.
High-efficiency H.265+ compression preserves image quality while saving bandwidth.

SKU: NC326-WDC 2.8mm Categories: NETWORK CAMERAS, WINIC

Product Overview

The NC326-WDC 6 MP IR Fixed Mini Dome Wi-Fi Camera combines high-resolution imaging with flexible connectivity for both wired and wireless deployments. Delivering 3072 × 2048 resolution at 20 fps, it ensures clear and detailed video in diverse environments. With 120 dB WDR, 0.01 Lux low-light sensitivity, and IR illumination up to 10 m, this mini dome provides reliable day-and-night monitoring. Its built-in MicroSD slot (up to 128 GB), PoE support, and Wi-Fi capability enable versatile recording and installation options. The camera integrates behavior analysis for line crossing and intrusion detection, along with face detection, while BLC/3D DNR/HLC ensure image clarity. Engineered for durability, it features IP66 weatherproofing and IK08 vandal resistance for secure indoor and outdoor use.

KEY FEATURES

6 MP Ultra HD Imaging: Crystal-clear video for accurate monitoring and identification.

Intelligent Detection: Supports line crossing and intrusion detection for proactive security.

Flexible Connectivity: Wi-Fi and PoE support allow easy deployment without cabling constraints.

Advanced Low-Light Performance: 0.01 Lux minimum illumination with IR up to 10 m ensures reliable night vision.

Enhanced Image Quality: 120 dB WDR with BLC/3D DNR/HLC for balanced, clear visuals in challenging lighting.

Compact and Durable Design: Mini dome form factor, IP66 weatherproof, IK08 vandal-resistant for secure installations.

Local and Network Storage Options: Built-in MicroSD slot up to 128 GB and support for NAS and remote storage.

Key Specifications

Image Sensor: 1/2.9″ Progressive Scan CMOS

Lens: 2.8 mm fixed

IR Range: Up to 10 m

Storage: MicroSD/SDHC/SDXC up to 128 GB, NAS support

Wireless Standards: IEEE 802.11b/g/n, Wi-Fi range up to 50 m

3‐Axis Adjustment	Pan: -30° to +30° , tilt: 0° to 75° , rotate: 0° to 360°
Alarm	1 Input: Alarm in , 1 Output: Alarm out (max. 12 VDC , 30 mA) , terminal block
Alarm Trigger	Motion detection , video tampering , network disconnected , IP address conflict , HDD full , HDD error , illegal login
API	ONVIF (PROFILE S , PROFILE G) , ISAPI
Audio Bit Rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Audio Compression	G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio Interface	2 Inputs: line in or mic in (built-in microphone) , 1 output: line out , mono sound , terminal block
Audio Sampling Rate	16 kHz , 32kHz , 44.1kHz , 48kHz
Behavior Analysis	Line crossing detection , intrusion detection
Channel Bandwidth	20M/40M
Client	CMS , Guarding vision
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Day & Night	IR Cut Filter
Day/night Switch	Auto/Schedule/Day/Night/Triggered by Alarm In (-S)
Digital Noise Reduction	3D DNR
Dimensions	Φ110 mm × 56.4 mm (Φ4. 3" × 2.2")
Electronic Shutter Speed	1/3 s to 1/100 , 000 s
Environment Noise Filtering	Yes
Face Detection	Yes
Focal Length	Pan: -30° to +30° , tilt: 0° to 75° , rotate: 0° to 360°
FOV	2.8 mm , Horizontal field of view: 97° , Vertical field of view: 67° , Diagonal field of view: 121°
Frequency Range	2.412 GHz to 2.4835 GHz
General Function	One-key reset , anti-flicker , three streams , heartbeat , mirror , password protection , privacy mask , watermark , IP address filter
H.264 Type	Main Profile/High Profile
H.264+	Main stream supports
H.265 Type	Main Profile
H.265+	Main stream supports
Image Enhancement	BLC/3D DNR/HLC
Image Sensor	1/2.9" Progressive Scan CMOS
Image Settings	Rotate mode , saturation , brightness , contrast , sharpness adjustable by client software or web browser
IR Range	Up to 10 m
Lens Mount	M12
Main Stream	50Hz: 20 fps (3072 × 2048 , 3072 × 1728 , 2944 × 1656) , 25 fps (2560 × 1440 , 1920 × 1080 , 1280 × 720) 60Hz: 20 fps (3072 × 2048 , 3072 × 1728 , 2944 × 1656) , 30fps (2560 × 1440 , 1920 × 1080 , 1280 × 720)
Material	Front cover: plastic , Bottom base: metal
Max Aperture	F2.0
Max. Resolution	3072 × 2048
Min. Illumination	Color: 0.01 Lux @ (F1.2 , AGC ON) , 0.028 lux @(F2.0 , AGC ON) , 0 lux with IR
Network Protocols	TCP/IP , ICMP , HTTP , HTTPS , FTP , DHCP , DNS , DDNS , RTP , RTSP , RTCP , PPPoE , NTP , UPnP™ , SMTP , SNMP , IGMP , QoS , IPv6
Network Storage	Support Micro SD/SDHC/SDXC card (128G) , local storage and NAS (NFS , SMB/CIFS) , ANR
On-Board Storage	Built-in Micro SD/SDHC/SDXC slot , up to 128G
Operating Conditions	-30 °C to +60 °C (-22 °F to +140 °F) , Humidity 95% or less (non-condensing)
Power Consumption	12 VDC , 0.7A , max. 8.5W , Φ 5.5mm coaxial plug power PoE (802.3af , 36V to 57V) , 0.3 A to 0.1 A , max. 10W
Power Supply	12 VDC ± 25% , PoE (802.3af , class 3)
Protection	IK08 , IP66
Protocols (Wireless)	802.11b: DQPSK , DBPSK , CCK 802.11g/n: OFDM /64-QAM , 16-QAM , QPSK , BPSK
Region of Interest	Support 1 fixed region for main stream and sub-stream separately
Security (Wireless)	WPA , WPA2
Simultaneous Live View	Up to 6 channels
Slow Shutter	Yes
Sub‐Stream	50Hz: 25fps (640 × 480 , 640 × 360 , 320 × 240) 60Hz: 30fps (640 × 480 , 640 × 360 , 320 × 240)
SVC	Support H.264 and H.265 encoding
Third Stream	50Hz: 25fps (1280 × 720 , 640 × 360 , 352 × 288) 60Hz: 30fps (1280 × 720 , 640 × 360 , 352 × 240)
Transfer Rates	11b: 11Mbps , 11g: 54Mbps , 11n: up to 150Mbps
User/Host Level	Up to 32 users 3 levels: Administrator , Operator and User
Video Bit Rate	256 Kbps to 16 Mbps
Video Compression	Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Wavelength	850nm
Web Browser	IE8+ , Chrome 31.0-44 , Firefox 30.0-51 , Safari 8.0+
Weight	Camera: Approx. 400 g (0.9 lb.)
Wide Dynamic Range	120dB
Wireless Range	50 m
Wireless Standards	IEEE 802.11b/g/n
Camera Style	Dome

Related Firmware

Firmware Name

Description

Associated File

Actions

NC325-WDA NC326-WDA/C

NC32X_G1_EN_NEU_5.6.2_210422

Download

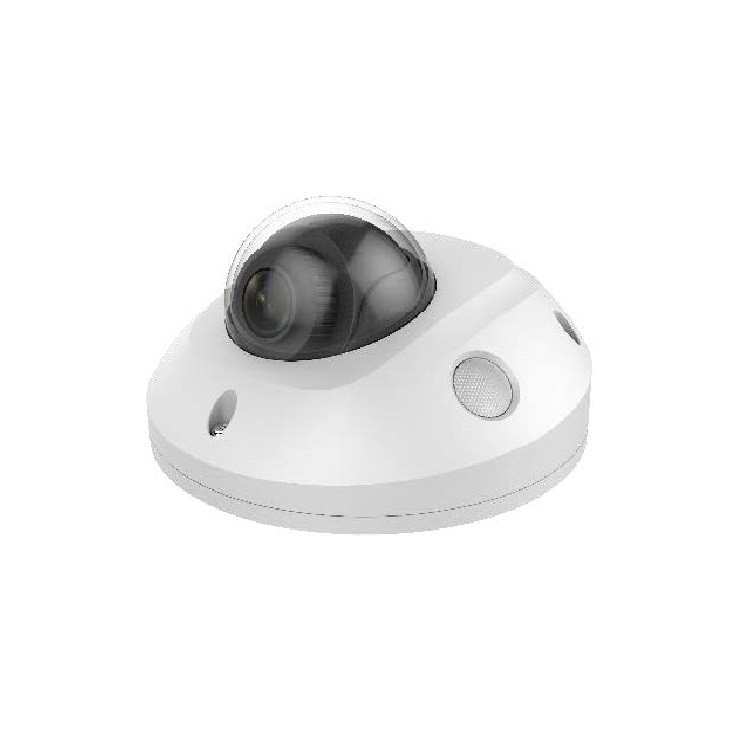

NC326-WDC 6 MP IR Fixed Mini Dome WIFI Network Camera

Click to enlarge

Add to wishlist

6 MP Ultra HD Imaging: Crystal-clear video for accurate monitoring and identification.
Intelligent Detection: Supports line crossing and intrusion detection for proactive security.
Flexible Connectivity: Wi-Fi and PoE support allow easy deployment without cabling constraints.
Advanced Low-Light Performance: 0.01 Lux minimum illumination with IR up to 10 m ensures reliable night vision.
Enhanced Image Quality: 120 dB WDR with BLC/3D DNR/HLC for balanced, clear visuals in challenging lighting.
Compact and Durable Design: Mini dome form factor, IP66 weatherproof, IK08 vandal-resistant for secure installations.
Local and Network Storage Options: Built-in MicroSD slot up to 128 GB and support for NAS and remote storage.

Image Sensor: 1/2.9″ Progressive Scan CMOS
Lens: 2.8 mm fixed
IR Range: Up to 10 m
Storage: MicroSD/SDHC/SDXC up to 128 GB, NAS support
Wireless Standards: IEEE 802.11b/g/n, Wi-Fi range up to 50 m

Additional information

3‐Axis Adjustment	Pan: -30° to +30° , tilt: 0° to 75° , rotate: 0° to 360°
Alarm	1 Input: Alarm in , 1 Output: Alarm out (max. 12 VDC , 30 mA) , terminal block
Alarm Trigger	Motion detection , video tampering , network disconnected , IP address conflict , HDD full , HDD error , illegal login
API	ONVIF (PROFILE S , PROFILE G) , ISAPI
Audio Bit Rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Audio Compression	G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio Interface	2 Inputs: line in or mic in (built-in microphone) , 1 output: line out , mono sound , terminal block
Audio Sampling Rate	16 kHz , 32kHz , 44.1kHz , 48kHz
Behavior Analysis	Line crossing detection , intrusion detection
Channel Bandwidth	20M/40M
Client	CMS , Guarding vision
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Day & Night	IR Cut Filter
Day/night Switch	Auto/Schedule/Day/Night/Triggered by Alarm In (-S)
Digital Noise Reduction	3D DNR
Dimensions	Φ110 mm × 56.4 mm (Φ4. 3" × 2.2")
Electronic Shutter Speed	1/3 s to 1/100 , 000 s
Environment Noise Filtering	Yes
Face Detection	Yes
Focal Length	Pan: -30° to +30° , tilt: 0° to 75° , rotate: 0° to 360°
FOV	2.8 mm , Horizontal field of view: 97° , Vertical field of view: 67° , Diagonal field of view: 121°
Frequency Range	2.412 GHz to 2.4835 GHz
General Function	One-key reset , anti-flicker , three streams , heartbeat , mirror , password protection , privacy mask , watermark , IP address filter
H.264 Type	Main Profile/High Profile
H.264+	Main stream supports
H.265 Type	Main Profile
H.265+	Main stream supports
Image Enhancement	BLC/3D DNR/HLC
Image Sensor	1/2.9" Progressive Scan CMOS
Image Settings	Rotate mode , saturation , brightness , contrast , sharpness adjustable by client software or web browser
IR Range	Up to 10 m
Lens Mount	M12
Main Stream	50Hz: 20 fps (3072 × 2048 , 3072 × 1728 , 2944 × 1656) , 25 fps (2560 × 1440 , 1920 × 1080 , 1280 × 720) 60Hz: 20 fps (3072 × 2048 , 3072 × 1728 , 2944 × 1656) , 30fps (2560 × 1440 , 1920 × 1080 , 1280 × 720)
Material	Front cover: plastic , Bottom base: metal
Max Aperture	F2.0
Max. Resolution	3072 × 2048
Min. Illumination	Color: 0.01 Lux @ (F1.2 , AGC ON) , 0.028 lux @(F2.0 , AGC ON) , 0 lux with IR
Network Protocols	TCP/IP , ICMP , HTTP , HTTPS , FTP , DHCP , DNS , DDNS , RTP , RTSP , RTCP , PPPoE , NTP , UPnP™ , SMTP , SNMP , IGMP , QoS , IPv6
Network Storage	Support Micro SD/SDHC/SDXC card (128G) , local storage and NAS (NFS , SMB/CIFS) , ANR
On-Board Storage	Built-in Micro SD/SDHC/SDXC slot , up to 128G
Operating Conditions	-30 °C to +60 °C (-22 °F to +140 °F) , Humidity 95% or less (non-condensing)
Power Consumption	12 VDC , 0.7A , max. 8.5W , Φ 5.5mm coaxial plug power PoE (802.3af , 36V to 57V) , 0.3 A to 0.1 A , max. 10W
Power Supply	12 VDC ± 25% , PoE (802.3af , class 3)
Protection	IK08 , IP66
Protocols (Wireless)	802.11b: DQPSK , DBPSK , CCK 802.11g/n: OFDM /64-QAM , 16-QAM , QPSK , BPSK
Region of Interest	Support 1 fixed region for main stream and sub-stream separately
Security (Wireless)	WPA , WPA2
Simultaneous Live View	Up to 6 channels
Slow Shutter	Yes
Sub‐Stream	50Hz: 25fps (640 × 480 , 640 × 360 , 320 × 240) 60Hz: 30fps (640 × 480 , 640 × 360 , 320 × 240)
SVC	Support H.264 and H.265 encoding
Third Stream	50Hz: 25fps (1280 × 720 , 640 × 360 , 352 × 288) 60Hz: 30fps (1280 × 720 , 640 × 360 , 352 × 240)
Transfer Rates	11b: 11Mbps , 11g: 54Mbps , 11n: up to 150Mbps
User/Host Level	Up to 32 users 3 levels: Administrator , Operator and User
Video Bit Rate	256 Kbps to 16 Mbps
Video Compression	Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Wavelength	850nm
Web Browser	IE8+ , Chrome 31.0-44 , Firefox 30.0-51 , Safari 8.0+
Weight	Camera: Approx. 400 g (0.9 lb.)
Wide Dynamic Range	120dB
Wireless Range	50 m
Wireless Standards	IEEE 802.11b/g/n
Camera Style	Dome

Datasheet

NC326-WDC

Firmware Name	Description	Associated File	Actions
NC325-WDA NC326-WDA/C		NC32X_G1_EN_NEU_5.6.2_210422	Download
